User Manual for StarTech USB-C Dual-Monitor Docking Station Click to enlarge the picture
Contents of the user manual for the StarTech USB-C Dual-Monitor Docking Station
- Product category: Docking Stations & Port Replicators StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Docking Stations & Port Replicators
 |
User manual for the StarTech USB-C Dual-Monitor Docking Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

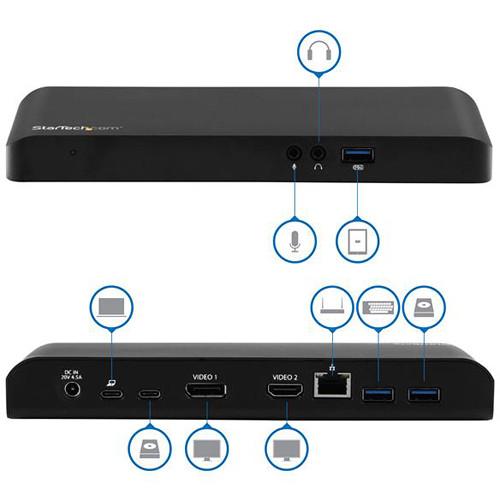

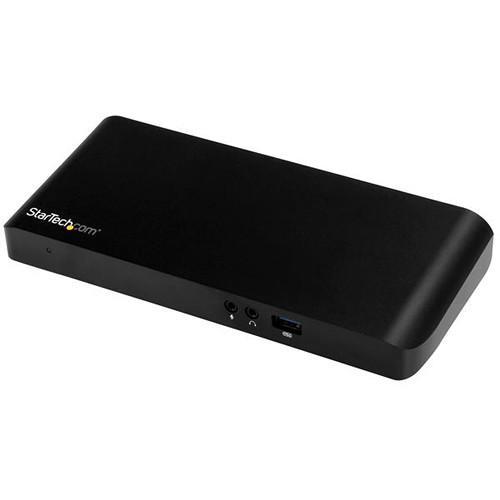

Product description Power your USB Type-C compatible laptop, charge a phone or tablet, and connect dual monitors and more to the USB Type-C Dual-Monitor Docking Station from StarTech. This docking station features dual USB 3.0 Type-C ports, dual USB 3.0 Type-A ports, a DisplayPort input, an HDMI input, a USB 3.0 Type-A fast-charge port, an RJ45 Ethernet port, and dual 3.5mm audio mini-jacks.

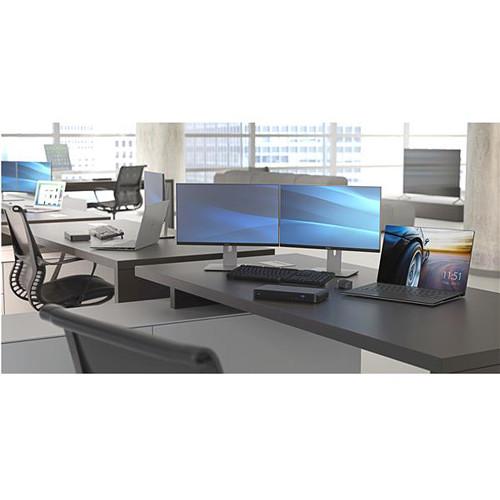

With this docking station you can connect your USB Type-C enabled laptop to two monitors for extra screen space. In addition to connecting monitors to your laptop, you can also connect USB compatible peripherals such as hard drives, keyboards, mice, and more to any of the USB ports. The fast-charge USB port is designed to charge devices like smartphones and tablets along with the ability to transfer and sync files to and from each connected device. If that's not enough, the 3.5mm headphone and microphone ports make it easy to plug headphones into the dock to listen to music directly from your laptop while the RJ45 Ethernet port allows you to access a LAN to get online quickly and easily. -

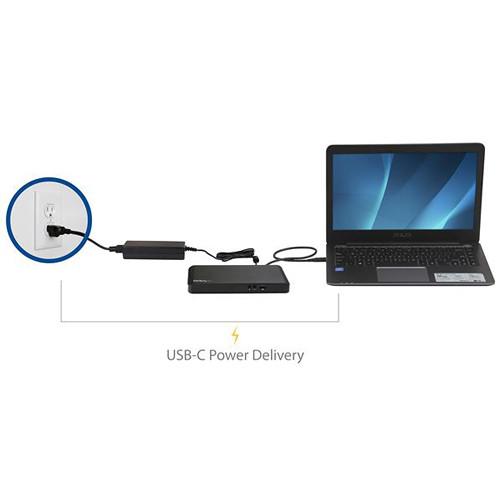

- Take advantage of USB Type-C with PD and deliver power to your laptop (up to 60-watts) through a single USB Type-C port

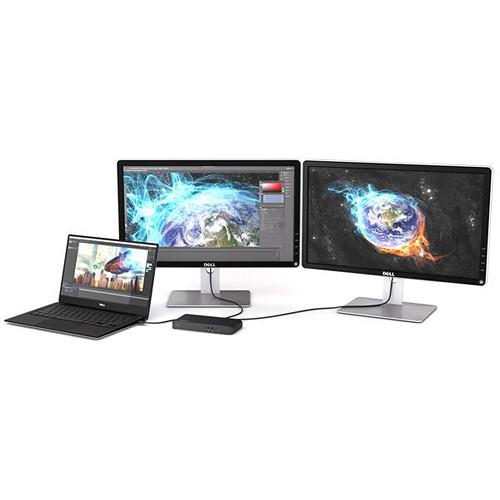

- Connect multiple displays through your laptop's USB Type-C port, with support for MST (multi-stream transport) technology

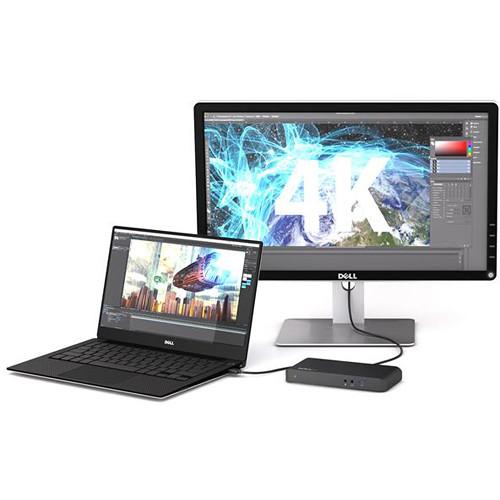

- Versatile display possibilities, supports dual monitors (DisplayPort and HDMI), a single 4K HDMI display (4096 x 2160p @ 24 Hz), or a single 4K DP display (3840 x 2160p @ 30 Hz)
- Four USB 3.0 (5 Gbps) ports - one USB Type-C and three USB Type-A (2x standard, 1x fast-charge and sync)
- USB Type-C host port supplies power, video (DP alt mode), and data connectivity to your laptop
- Supports USB Power Delivery Specification 2.0 (up to 60-watts)
- Charge your smartphone or tablet quicker, using the always-on USB 3.0 Fast-Charge and sync port (compliant with USB Battery Charging Specification 1.2)
- Universal compatibility, works with virtually all USB Type-C equipped laptop brands (USB Type-C port must support DP alt mode and USB Power Delivery)
- Easy-access 3.5mm headphone and microphone ports
- Gigabit Ethernet RJ45 port with Wake-on-LAN (WOL)
- Includes a USB Type-C (USB 3.0) host cable
- Thunderbolt 3 data port compatible (the dock can connect to a Thunderbolt 3 port at 5 Gbps and will support USB Power Delivery)

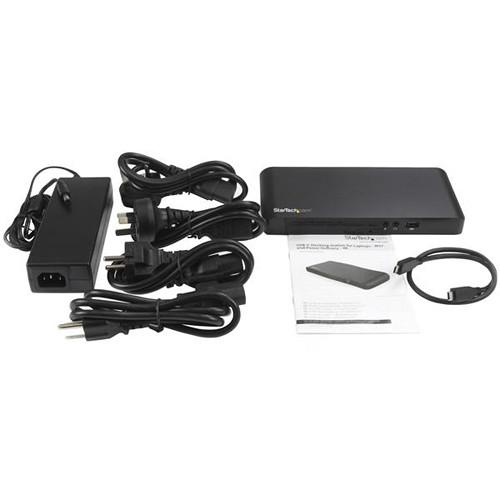

UPC: 065030863506 In the Box StarTech USB-C Dual-Monitor Docking Station USB-C Host Cable Universal Power Adapter Power Cords (NA/UK/EU/AU) Limited 3-Year Warranty More from Manufacturer wxdvqzzdauxabv Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech USB-C Dual-Monitor Docking Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech MST30C2DPPD Specs | | | USB | 1 x USB 3.1 Gen 1 Type-C (90 W)
1 x USB 3.1 Gen 1 Type-C
2 x USB 3.1 Gen 1 Type-A | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x DisplayPort
1 x HDMI | | Audio | 2 x 1/8" / 3.5 mm TRS | | Memory Card Slots | None | | | | System Connection | 1 x USB 3.1 Gen 1 Type-B Female | | | | Chipset | Cypress CYPD1122-40
MegaChips STDP4320
MegaChips MCDP2850
Cypress CYUSB3328-88LTXC
Cypress CYUSB3610-68LTXC
Texas Instruments PCM2912APJT | | Maximum Resolution Supported | 3840 x 2160 at 30 Hz (Single Display)
1920 x 1200 at 60 Hz (Dual Display) | | Data Transfer Rate | 5 Gb/s USB 3.0/USB 3.1 Gen 1 | | Operating System Support | Windows | | UASP Support | Yes | | | | Power Source | AC Adapter | | Maximum Power Consumption | 60 W | | Total Current Output | 4.5 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A | | DC Input Power | 20 VDC | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | | | LED Indicator | Activity, Connection, Power | | Dimensions | 1.1 x 8.3 x 3.5" / 28 x 210 x 90 mm | | Weight | 4.7 oz / 133 g | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 9.8 x 5.2 x 4.6" |
