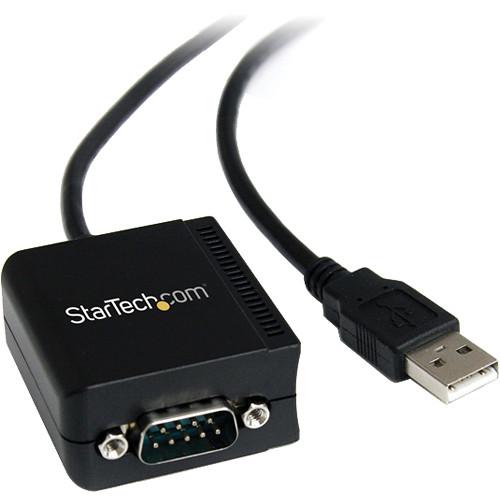

User Manual for StarTech USB Male to RS232 Male Adapter Cable with COM Retention Click to enlarge the picture
Contents of the user manual for the StarTech USB Male to RS232 Male
- Product category: Serial/Control Cables & Adapters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Serial/Control Cables & Adapters
|
User manual for the StarTech USB Male to RS232 Male contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The 6' USB Male to RS232 Male Adapter Cable from StarTech converts a USB 1.1 or 2.0 port into a DB9 RS232 serial port to connect, monitor, and control your serial devices.
This compact adapter features COM retention, allowing the same COM port value to automatically be reassigned to the port if the cable is disconnected and reconnected to the host computer, or if the system is rebooted. It uses the FTDI chipset which supports additional customization, advanced features, and more compatibility with other devices.
This adapter is ideal for IT administrators looking to add legacy functionality to newer notebooks, PCs, and servers that lack an integrated RS232 port. It is compatible with Windows, Windows CE, Mac OS, and Linux, making this product easy to integrate into mixed environments. - Integrated FTDI USB UART Chip
- Baud rate up to 115.2 Kbps
- COM port assignments maintained across reboot
UPC: 065030828185 In the Box StarTech USB Male to RS232 Male Adapter Cable with COM Retention (6') Driver CD Limited 2-Year Warranty Brochure PDF 149.5kbzqytdsvfrscweravftta More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech USB Male to RS232 Male Adapter Cable with COM Retention in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ICUSB2321F Specs | Type | USB 2.0 to serial adapter | | Chipset ID | FTDI - FT232RL | | Connector 1 | DB9 9-pin D-Sub male | | Connector 2 | USB Type-A male | | FIFO Buffer | 256 bytes | | Serial Protocol | RS232 | | Max Baud Rate | 115.2 Kbps | | Data Bits | 7, 8 | | Parity | None, odd, even, mark, space | | Stop Bits | 1, 2 | | Enclosure Material | Plastic | | Humidity | 5~95% RH | | Operating Temperature | 32-131°F (0-55°C) | | Storage Temperature | -4-185°F (-20-85°C) | | OS Compatibility | Windows 8 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64), 2000, 98SE, XP Embedded, CE (4.2+)
Windows Server 2012, 2008 R2, 2003 (32/64)
Mac OS 10 (tested up to 10.9)
Linux 2.4.x/2.6.x | | Cable Length | 6' (1.82 m) | | Dimensions | DB9 RS232 Connector: 0.9 x 1.8 x 1.6" (22 x 45 x 41.5 mm) | | Weight | 7.1 oz (200 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 6.9 x 5.7 x 1.3" |
