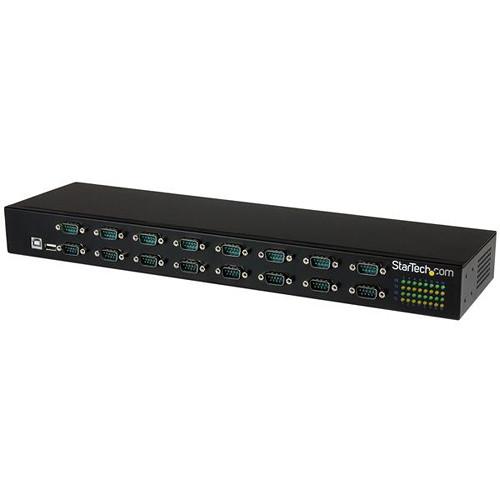

User Manual for StarTech USB to 16-Port RS-232 Serial Adapter Hub Click to enlarge the picture
Contents of the user manual for the StarTech USB to 16-Port RS-232 Serial
- Product category: Serial/Control Cables & Adapters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Serial/Control Cables & Adapters
 |
User manual for the StarTech USB to 16-Port RS-232 Serial contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The USB to 16-Port RS-232 Serial Adapter Hub from StarTech lets you add 16 RS-232 serial ports with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow. Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including: industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.
The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer. It features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems.
With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19" server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40 to 185°F, ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options. UPC: 065030864763 In the Box StarTech USB to 16-Port RS-232 Serial Adapter Hub USB Cable 2 x Rack Mounting Brackets 8 x Rack Mounting Screws 2 x DIN Rail Mounting Brackets 4 x DIN Rail Mounting Screws 4 x Washers and Nuts Universal Power Adapter Terminal Block Plug Limited 2-Year Warranty Brochure PDF 202.7kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech USB to 16-Port RS-232 Serial Adapter Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

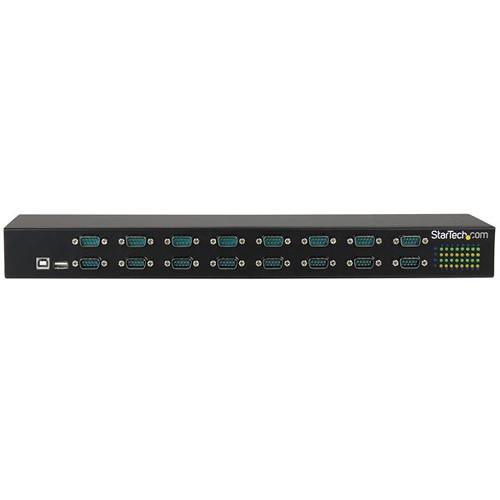

Technical parametersStarTech ICUSB23216FD Specs | Ports | 16 x 9-Pin Sub-D, RS-232 male
1 x USB Type-B, host port
1 x USB Type-A, daisy chain port

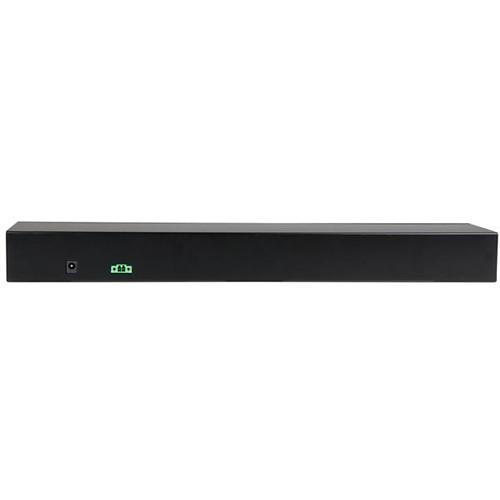

1 x 2-wire terminal block, 9-36 VDC input
1 x DC, power input | | Bus Type | USB 2.0 | | Chipset ID | FTDI - FT232RL | | Interface | Serial | | Port Style | External Hub | | Data Bits | 7, 8 | | FIFO | 256 Bytes | | Max Baud Rate | 921.6 Kb/s | | Maximum Data Transfer Rate | 480 Mb/s | | Parity | Odd, Even, Mark, Space, None | | Serial Protocol | RS-232 | | Stop Bits | 1, 2 | | OS Compatibility | Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS 10.6 to 10.13
Linux 2.4.x to 4.9.x (LTS versions only) | | LED Indicators | 16 x Data receive
16 x Data transmit | | Center Tip Polarity | Positive | | Input Current | 1.5 A | | Input Voltage | 10 to 240 VAC | | Output Current | 3 A | | Output Voltage | 12 VDC | | Power Consumption | 36 W | | Operating Temperature | -40 to 185°F / -40 to 85°C | | Storage Temperature | -85 to 302°F / -65 to 150°C | | Humidity | 20 to 80% RH, non-condensing | | Enclosure | Black steel | | Dimensions | 1.8 x 16.9 x 4.7" / 4.5 x 43.0 x 12.0 cm | | Weight | 54.7 oz / 1.6 kg | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 17.7 x 8.5 x 2.5" |
