User Manual for StarTech USB to RS232 DB9 DB25 Male to Male Serial Adapter Cable Click to enlarge the picture
Contents of the user manual for the StarTech USB to RS232 DB9 DB25
- Product category: Serial/Control Cables & Adapters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Serial/Control Cables & Adapters
 |
User manual for the StarTech USB to RS232 DB9 DB25 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

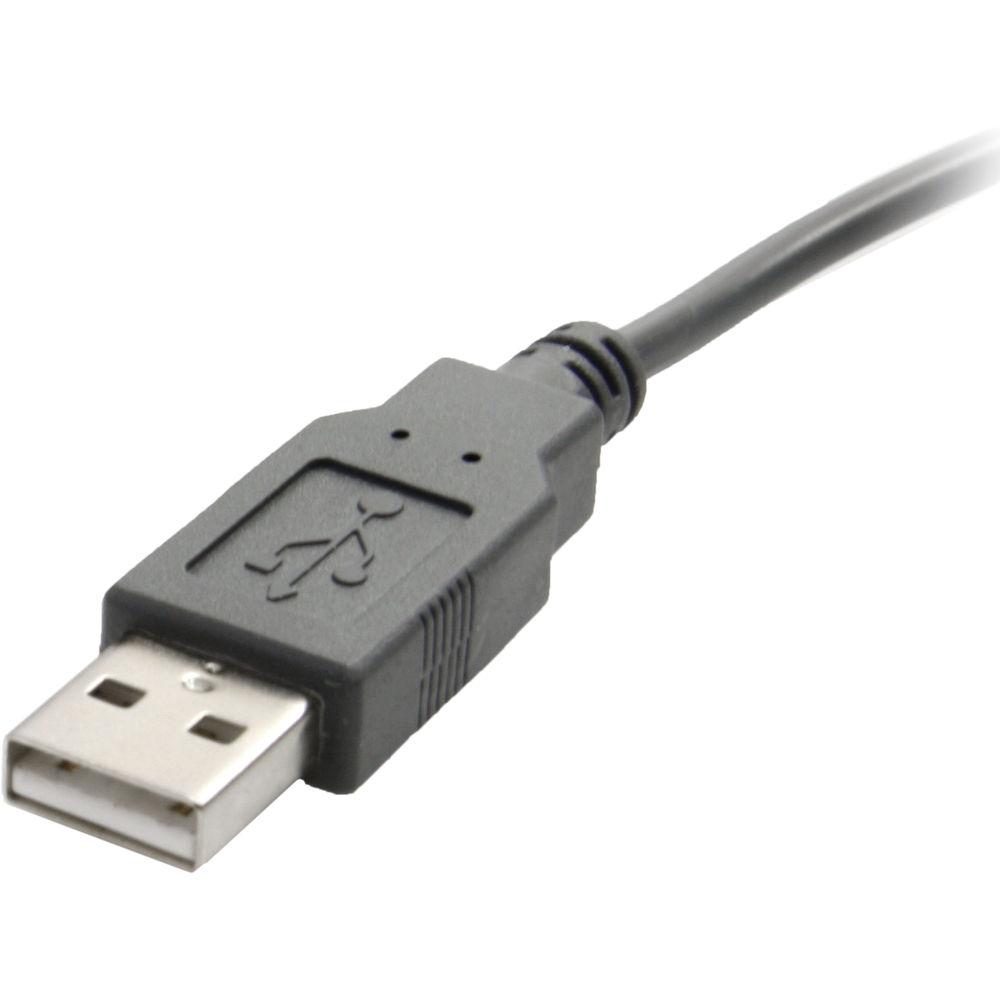

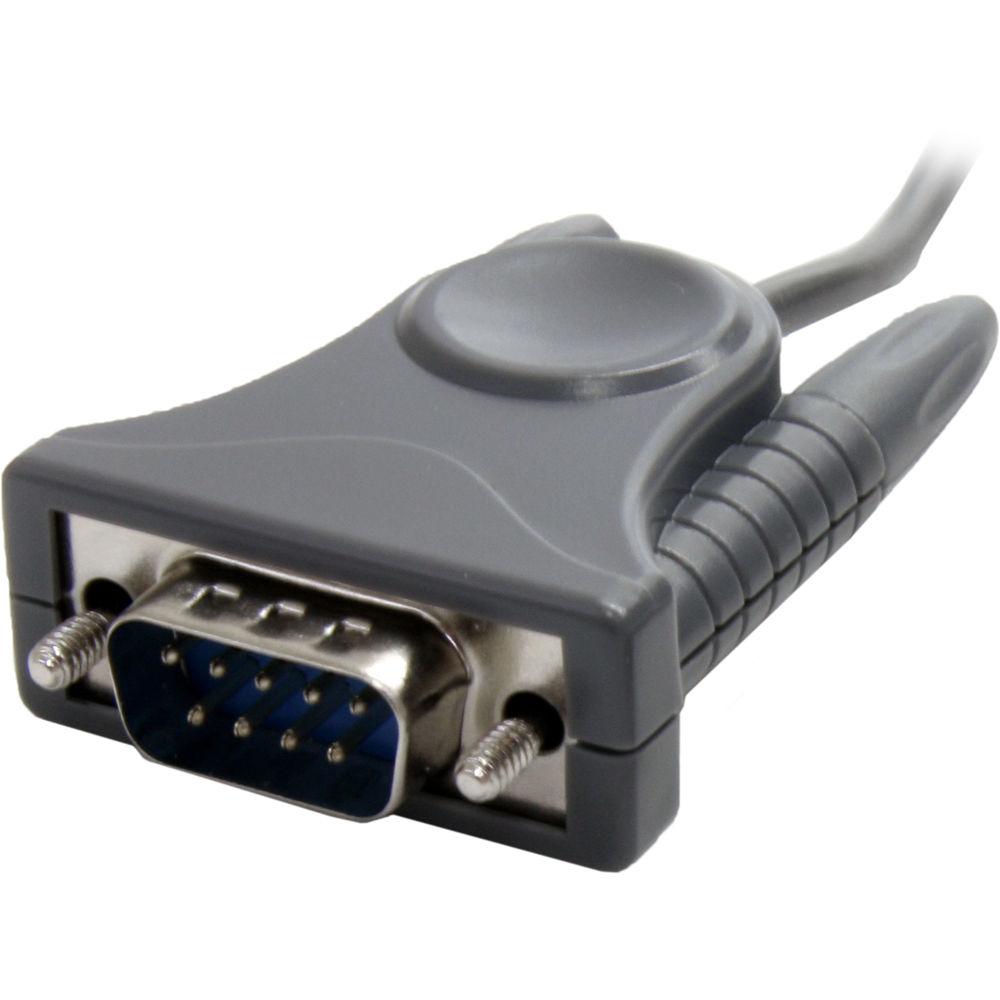

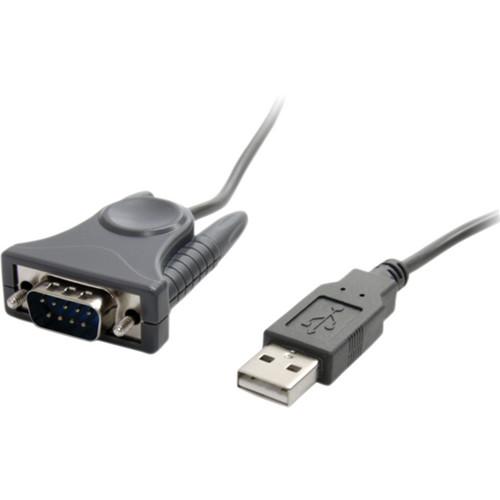

Product description The gray USB to RS232 DB9/DB25 Male to Male Serial Adapter Cable from StarTech lets you connect 9-pin (DB9) or 25-pin (DB25) RS232 serial devices to your laptop or desktop computer through a USB port, as though the computer offered an onboard serial port. The integrated 3' (0.9m) cable connects directly from the serial device to the computer without requiring additional cables. The adapter cable is a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals. It comes with a DB-9 to DB-25 adapter for connection to varied serial equipment. - The integrated 3' (0.9m) cable allows you to connect directly to your serial devices
- Plug-and-play/hot-swap support enables you to add and remove this adapter without having to reboot the computer
- USB-powered, no external power adapter needed
- Supports serial transfer speeds of up to 250 Kbps
- Includes a DB9 to DB25 pin adapter for 25-pin RS232 serial communication
- Supports USB transfer speeds of up to 12 Mbps
- Windows certified (WHQL) drivers
- Supports remote wake-up from modem input signals and USB power management
- Compliant with USB Rev. 2.0 full-speed specification
- Electronics Industries Association (EIA) standard RS-232-C compliant
- USB to straight-through RS232 serial adapter
- Ideal for connecting serial devices to laptops or tablet PCs through the USB port
- Connect to and monitor/control industrial sensors
- Connect bar code scanners and other serial devices to a USB port
- Connect a serial modem, digital camera or PDA with serial sync to your PC's USB port
- Connect to automotive ODB/ODBII sensor adapters that use serial connectivity
UPC: 065030840453 In the Box StarTech USB to RS232 DB9/DB25 Male to Male Serial Adapter Cable (Gray) Driver CD 2-Year Warranty Brochure PDF 131.7kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech USB to RS232 DB9 DB25 Male to Male Serial Adapter Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ICUSB232DB25 Specs | | | Port Style | Cable adapter | | Ports | 1 | | Interface | Serial | | Bus Type | USB 2.0 | | Chipset ID | Prolific - PL-2303 | | | | Connector Type | 1 x USB A (4-pin) male | | External Ports | 1 x DB-25 (25-pin; D-Sub) male
1 x DB-9 (9-pin; D-Sub) male | | Performance | Max Baud Rate: 230.4 kbps
Serial Protocol: RS-232
Data Bits: 4, 5, 6, 7, 8
FIFO: 512 bytes
Flow Control: None, Xon/ Xoff, hardware
Parity: None, even, odd, mark, space
Stop Bits: 1, 1.5, 2 | | | | OS Compatibility | Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), XP Embedded, POS Ready
2009, Embedded System 2009, CE 4.2/5.2, Windows Mobile 5/6, PocketPC 2003, 2000
Windows Server 2008 R2, 2003 (32/64-bit)
Mac OS 10.1 and up (tested up to 10.8)
Linux | | Microsoft WHQL Certified | Yes | | | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Humidity | 5 ~ 85% RH | | | | Certifications | CE, RoHS | | Enclosure Type | Plastic | | Cable Length | 3' (0.9 m) | | Weight | 2.5 oz (70 g) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 6.9 x 5.9 x 1.2" |
