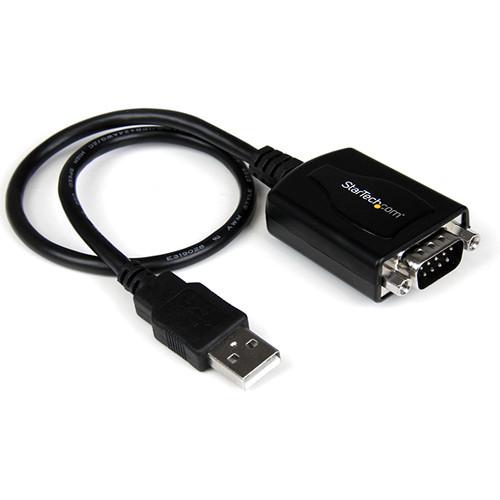

User Manual for StarTech USB to RS232 Serial DB9 Adapter Cable with COM Retention Click to enlarge the picture
Contents of the user manual for the StarTech USB to RS232 Serial DB9
- Product category: Serial/Control Cables & Adapters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Serial/Control Cables & Adapters
|
User manual for the StarTech USB to RS232 Serial DB9 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The black, 1' StarTech USB to RS232 Serial DB9 Adapter Cable with COM Retention lets you connect RS232 serial devices to a laptop or desktop through the USB port. This adapter has a baud rate of up to 921.6 Kbps and comes with USB 2.0 technology. With COM retention, it retains serial port values when disconnected and reconnected or moved to a different port. Values are stored in its nonvolatile memory. Furthermore, the adapter supports remote wake up and power management control features. - Supports data transfer rates of up to 920 Kpbs
- COM Port assignments maintained across reboot
- Powered via a USB port, so no external power adapter required
- Provides dual buffers for upstream and downstream data transfer
- Supports remote wake up and power management control
- Supports automatic handshake mode
UPC: 065030820080 In the Box StarTech USB to RS232 Serial DB9 Adapter Cable with COM Retention (Black, 1') Driver CD Limited 2-Year Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech USB to RS232 Serial DB9 Adapter Cable with COM Retention in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech USB to RS232 Serial DB9 Adapter Cable with COM Retention can be downloaded in PDF format at the link stated below.
Technical parametersStarTech ICUSB232PRO Specs | Interface | Serial | | Port Style | Cable adapter | | Ports | 1 | | Bus Type | USB 2.0 | | Chipset ID | Prolific - PL-2303 | | Max Baud Rate | 921.6 Kbps | | Serial Protocol | RS-232 | | OS Compatibility | Windows 10 (32/64-bit), 8/8.1 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), 2000, ME, 98SE
Windows CE 4.2, 5.2
Windows Server 2012, 2008 R2, 2003 (32/64)
Mac OS 10.x (Tested up to 10.11)
Linux 2.4.x - 3.9.x | | Connector 1 | DB9 9-Pin D-Sub Male | | Connector 2 | USB Type-A 4-Pin Male | | Enclosure Material | Plastic | | Humidity | 5 to 85% RH | | Operating Temperature | 14 to 176°F / -10 to 80°C | | Storage Temperature | -4 to 212°F / -20 to 100°C | | Cable Length | 1.0' / 0.3 m | | Dimensions (H x L x W) | 0.6 x 15.7 x 1.3" / 15.2 x 398.8 x 33.0 mm | | Weight | 2.5 oz / 70.0 g | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 6.6 x 5.6 x 1.2" |
