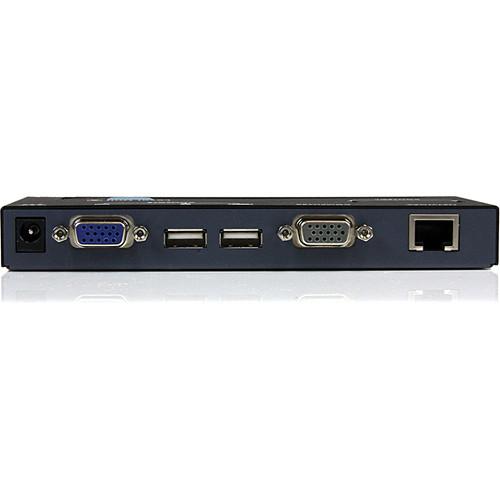

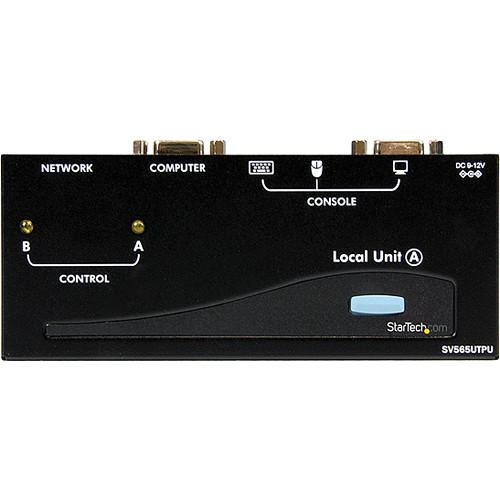

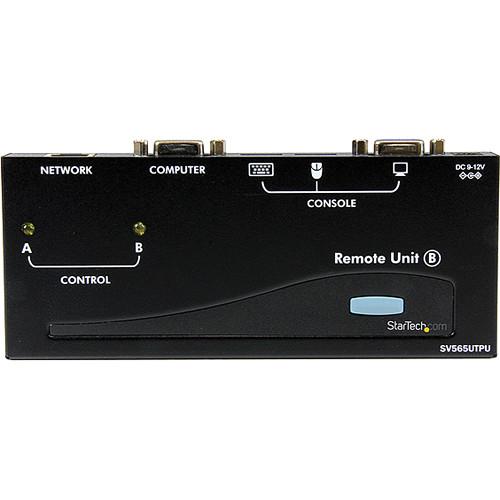

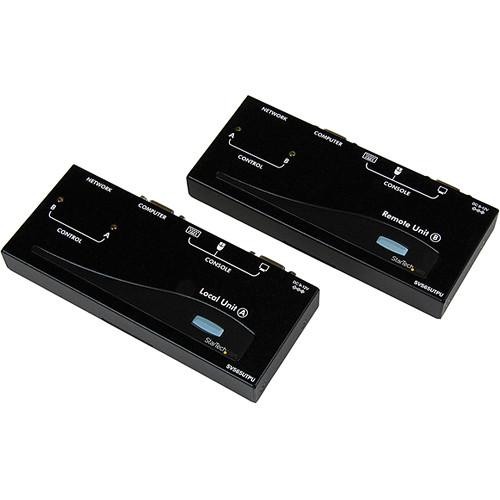

User Manual for StarTech USB VGA KVM Console Extender over CAT5 UTP Click to enlarge the picture
Contents of the user manual for the StarTech USB VGA KVM Console Extender
- Product category: KVM Switches StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech KVM Switches
 |
User manual for the StarTech USB VGA KVM Console Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More cdebzqvuefuctqtyvacycfxwycx The USB VGA KVM Console Extender over CAT5 UTP from StarTech lets you control a server, a computer or multiple computers (connected through KVM switch) over a standard CAT5 or CAT6 UTP network cable connection, at distances of up to 492' away. You can use your existing keyboard, mouse, and monitor to access both the server rooms and your office computer, which allows you to switch between workstation view and KVM view at the remote location. - Supports most combo keyboard and mouse sets (including wireless sets)
- PS/2 and USB host PCs supported via the appropriate PS/2 or USB KVM cable
- The unit can be used with a single computer or with an existing KVM switch
- Easy installation using industry-standard UTP network cable
- Intuitive hot-key commands
- Supports auto-switching between host and remote user or dedicated control
Applications - Monitor computer-controlled equipment in a factory or warehouse
- Use one or more servers in a server room from a remote location
- Control remote machines and security monitoring systems

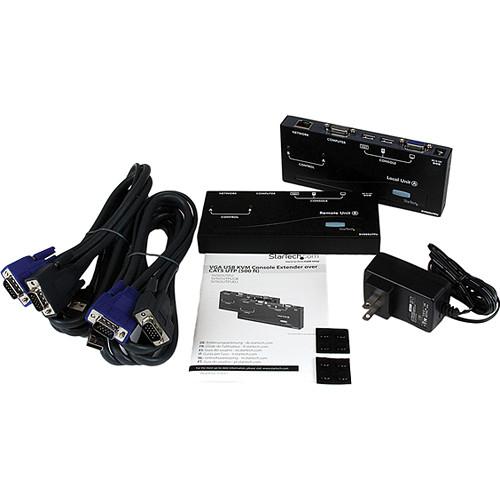

UPC: 065030832625 In the Box StarTech USB VGA KVM Console Extender over CAT5 UTP 2 x 2-in-1 USB VGA KVM Cables (6') 2 x Packs Rubber Feet 1 x Power Adapter Limited 2-Year Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech USB VGA KVM Console Extender over CAT5 UTP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech USB VGA KVM Console Extender over CAT5 UTP can be downloaded in PDF format at the link stated below.
Technical parametersStarTech SV565UTPU Specs | | | CPU Connections | 1 x 15-Pin VGA, Female | | Console Connections | 1 x 15-Pin VGA, Female
2 x USB (Unspecified Version) Type-A, Female | | Control Connections | 1 x RJ45, Female | | Supported Resolutions | 1280 x 1024 | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz at 0.2 A | | DC Input Power | 9 VDC at 0.6 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 80% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Certifications | CE, FCC, RoHS, as per Manufacturer | | Dimensions | 3.0 x 6.1 x 0.8" / 76.2 x 154.9 x 20.3 mm | | Weight | 10.6 oz / 300.5 g | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 11.9 x 9.8 x 3.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
