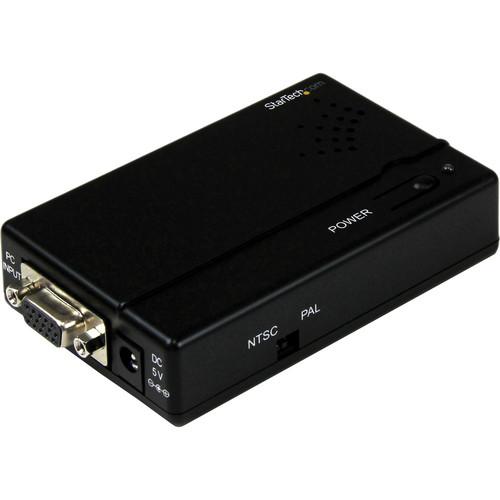

Product description The StarTech VGA to S-Video and Composite Converter lets you connect your computer to a flat-panel or CTR display with S-Video or Composite inputs. This converter can be useful for business meetings, tradeshows, trainings, or just for using your computer on a big screen.

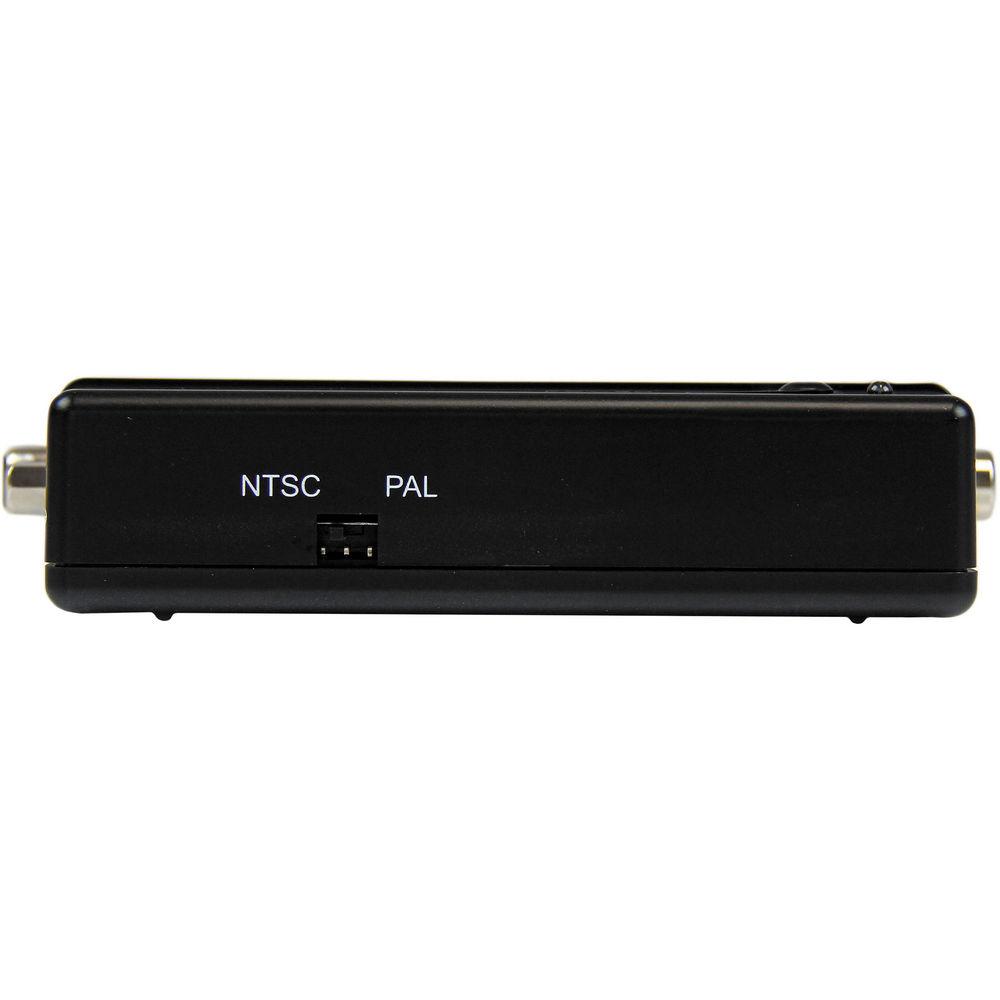

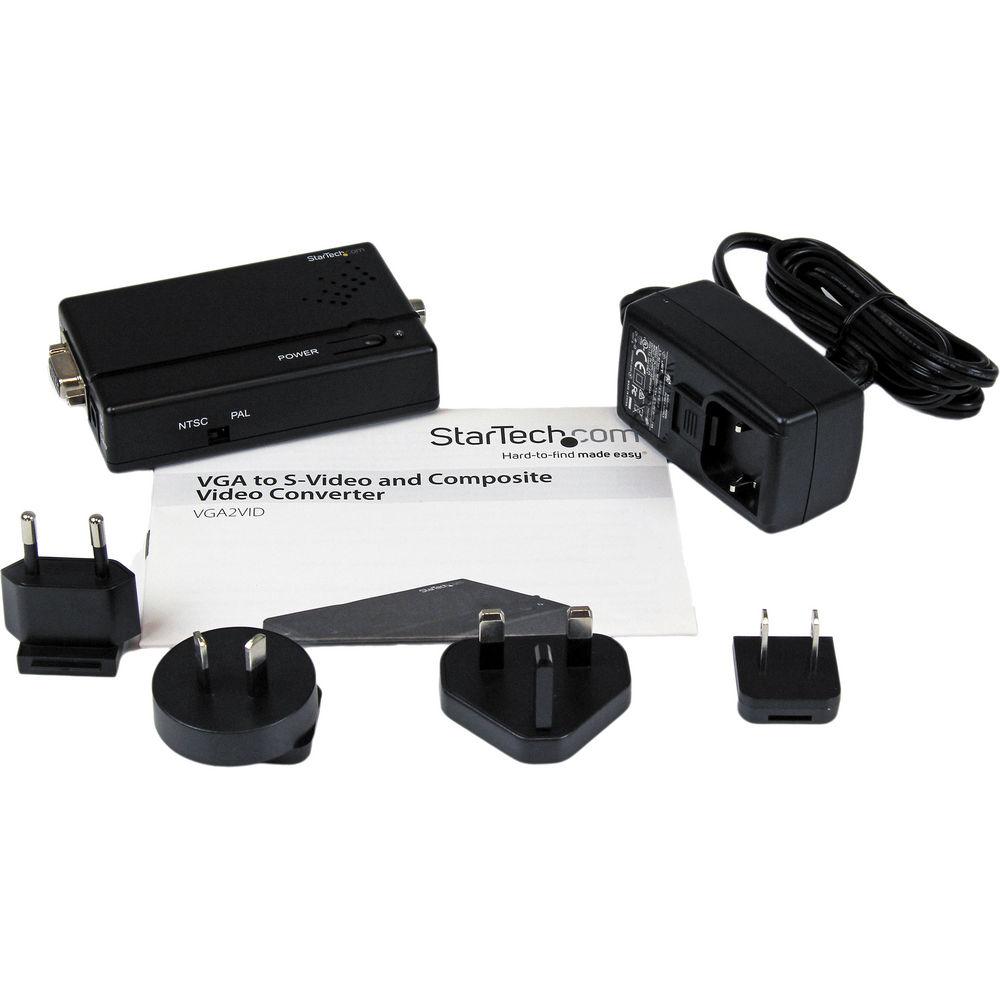

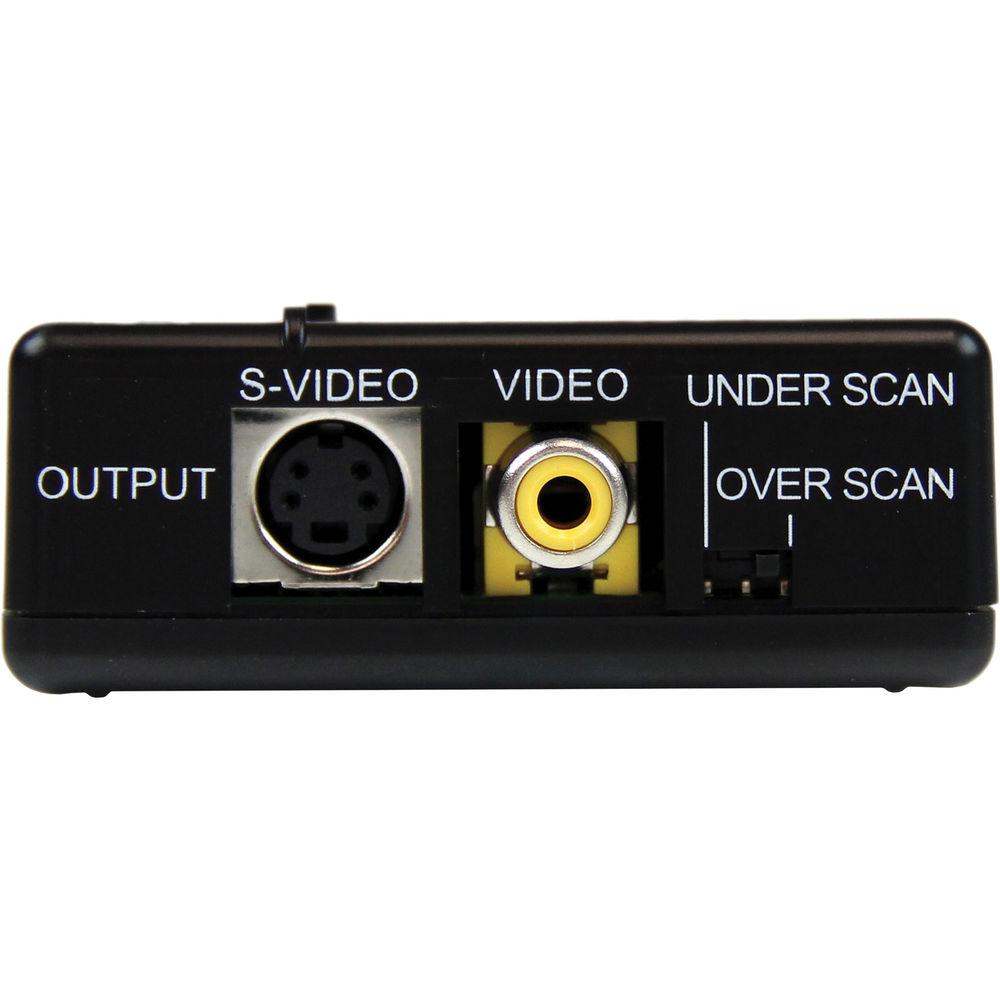

Switches on the side and back allow selecting between NTSC and PAL standards for international compatibility and between overscan and underscan for eliminating black bars or shrinking down an oversized image. UPC: 065030830591 In the Box StarTech VGA to S-Video and Composite Converter Universal Power Adapter (US / UK / EU / AUS) User Manual Limited 2-Year Warranty Brochure PDF 91.5kbbtqfcbbqdaurxrdfwwsasuaczsu More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech VGA to S-Video and Composite Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

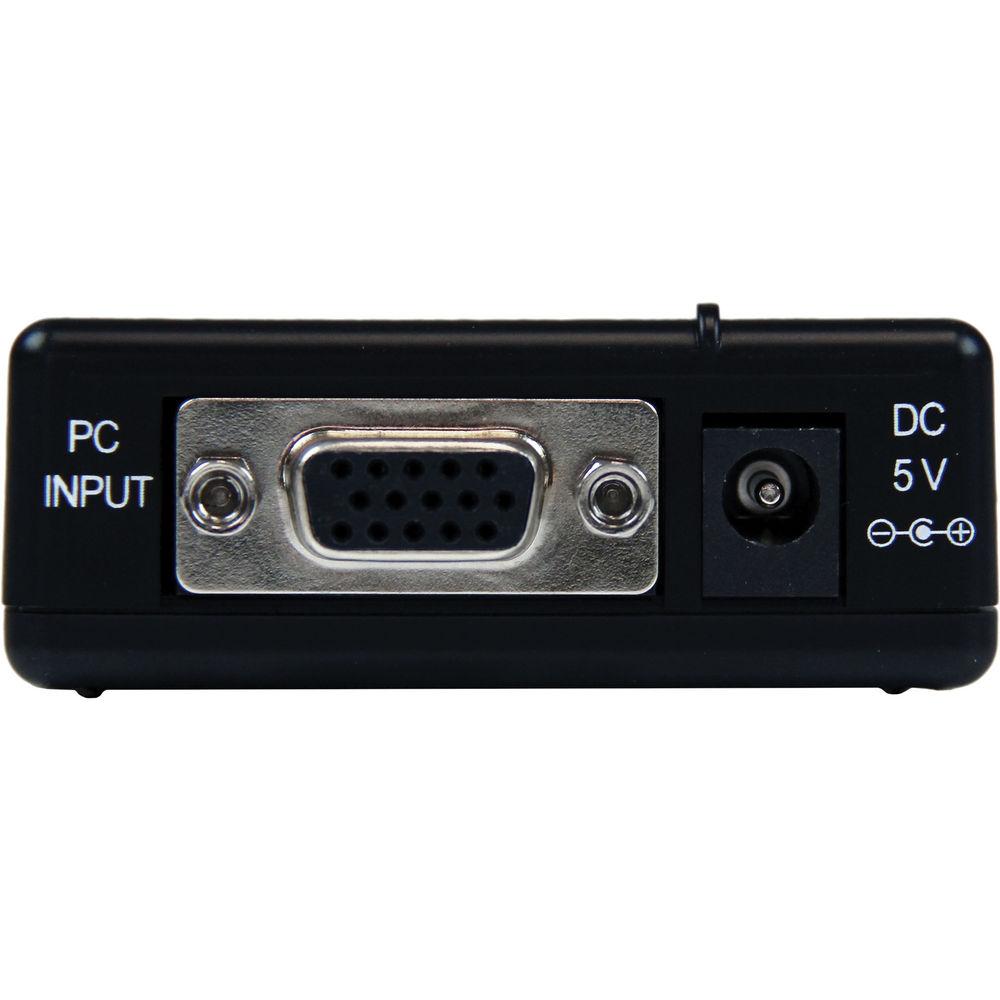

Technical parametersStarTech VGA2VID Specs | Connections | 1x VGA 15-pin High Density D-Sub female
1x Composite on RCA female
1x S-Video 4-pin Mini-DIN female | | Supported Resolutions | PC input up to 1600 x 1200 @ 60Hz Output - 640x480 | | Audio | No | | MTBF | 10,000 hours | | Color | Black | | Input Voltage | 5 DC | | Center Tip Polarity | Positive | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Dimensions | 3.9 x 2.5 x 0.7" (10 x 6.4 x 1.8 cm) | | Weight | 3.5 oz (99 g) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 8.2 x 4.6 x 2.5" |
