User Manual for StarTech VID2HDCON Composite & S-Video to HDMI Converter with Audio Click to enlarge the picture
Contents of the user manual for the StarTech VID2HDCON Composite & S-Video to
- Product category: Signal Converters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Signal Converters
 |
User manual for the StarTech VID2HDCON Composite & S-Video to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

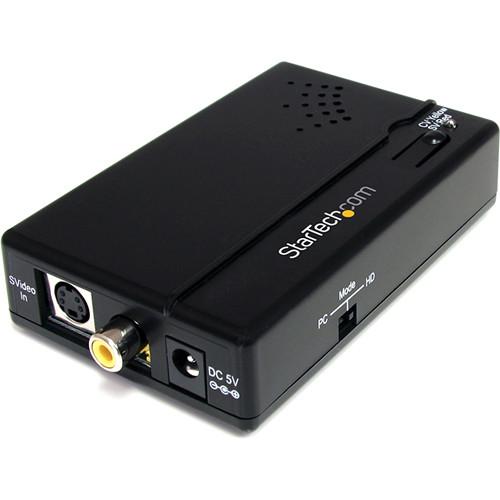

Product description The black Composite & S-Video to HDMI Converter from Startech lets you connect an S-Video or Composite device to your HDMI monitor or television, in addition to supporting 3.5mm audio. This integrated 3.5mm audio connection enables sending the output through a single HDMI cable to your destination display, avoiding the hassle of running a separate audio cable.Equipped with convenient selector switches for easy configuration, the S-Video/Composite to HDMI converter is able to function with both NTSC and PAL systems, and offers support for output resolutions up to 1600 x 1200 (PC) or 1080p (TV) to seamlessly integrate with almost any display. - Support for output resolutions from 480i to 1080p allow for simple conversion to suit almost any output display
- Pure hardware design that requires no software or drivers for use and allows for a quick plug-and-play installation
- Functions with NTSC and PAL systems

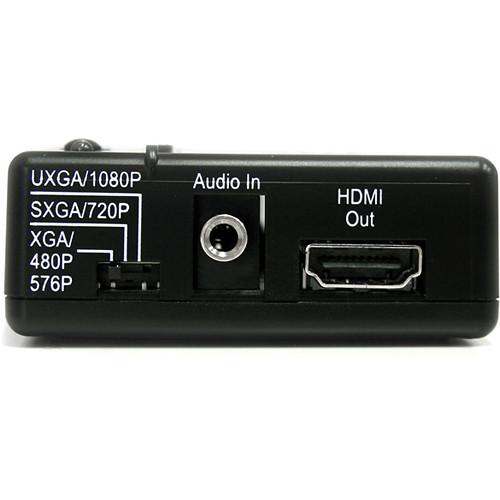

- PC/TV resolution selector switch for compatibility with many different displays
- 50/60 Hz frame rate conversion
- Advance 3D motion adaptive de-interlace
- 3D (frame based) motion adaptive YNR/CNR noise reduction
- Applications: Convert VCRs, DVD players, camcorders, video game consoles and other home theater devices to work on HDMI displays

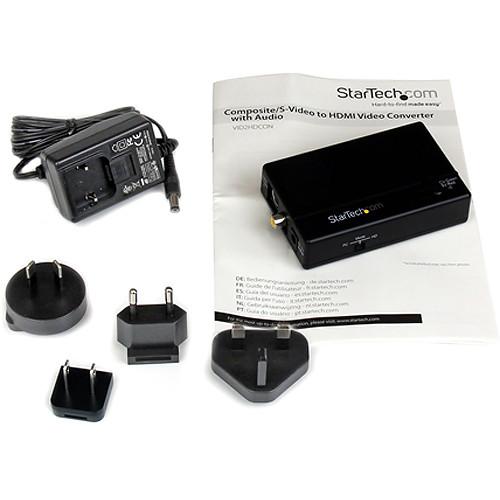

UPC: 065030845274 In the Box StarTech VID2HDCON Composite & S-Video to HDMI Converter with Audio (Black) Universal Power Adapter (US/UK/EU/AUS) Limited 2-Year Warranty Brochure PDF 111.9kbduqfyxeszuzvdweczbtaxrszysyszrxrxeycyx Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech VID2HDCON Composite & S-Video to HDMI Converter with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

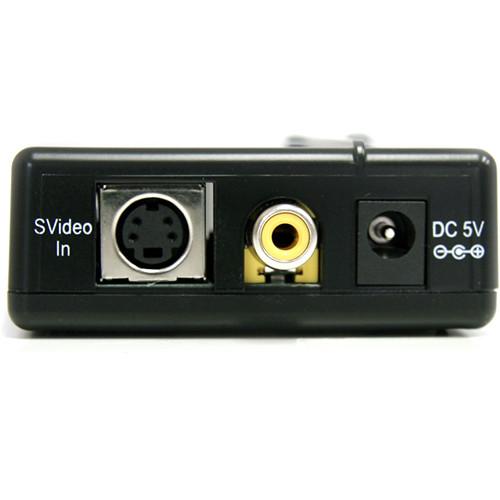

Technical parametersStarTech VID2HDCON Specs | Industry Standards | NTSC 3.58 and PAL | | Connector | 1 x 3.5 mm Mini-jack (3 position) female
1 x Composite video (1 x RCA) female 1 x HDMI (19 pin) female
1 x S-Video (4 pin; mini-DIN) female | | Output Signal | HDMI | | Supported Resolution | PC: 1600 x 1200, 1280 x 1024, 1024 x 768
TV: 1080p, 720p, 576p, 480p | | Enclosure Type | Plastic | | LED Indicators | Red for S-Video and yellow for Composite video | | Input Voltage | 110 to 240 VAC | | Input Current | 0.3 A | | Output Voltage | 5 VDC | | Output Current | 1 A | | Center Tip Polarity | Positive | | Plug Type | M | | Power Consumption | 2.5 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 20 to 90% RH | | Dimensions (L x W x H) | 6.5 x 6.4 x 1.3" (164.5 x 162.6 x 33.5 mm) | | Weight | 3.5 oz (100.0 g) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 6.0 x 4.9 x 2.3" |
