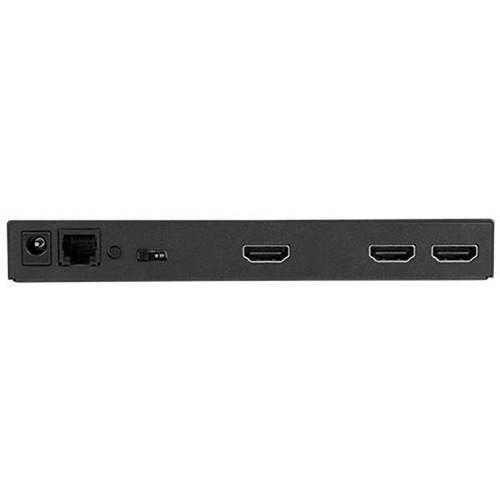

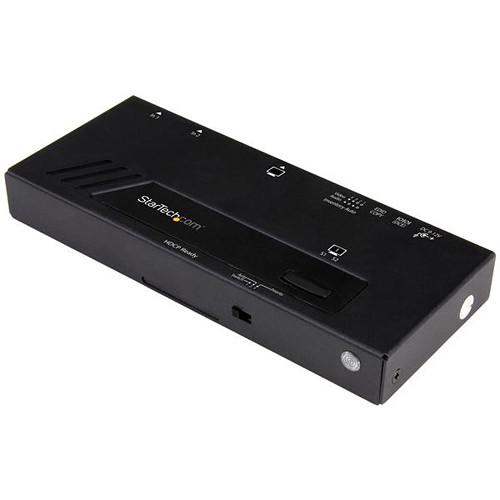

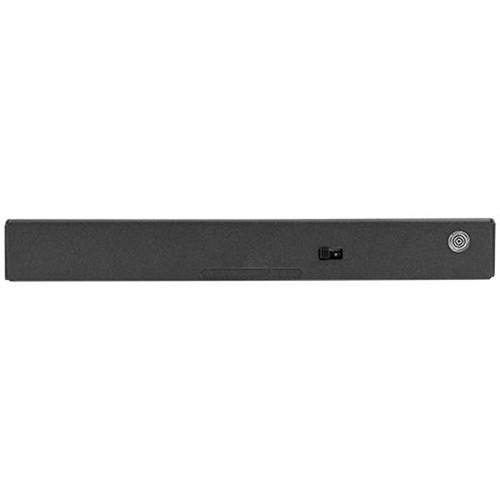

User Manual for StarTech VS221HD4KA 2-Port HDMI 4K Automatic Video Switch with Fast Switching Click to enlarge the picture
Contents of the user manual for the StarTech VS221HD4KA 2-Port HDMI 4K Automatic
- Product category: Routers & Switchers StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Routers & Switchers
 |
User manual for the StarTech VS221HD4KA 2-Port HDMI 4K Automatic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The VS221HD4KA 2-Port HDMI 4K Automatic Video Switch with Fast Switching from StarTech allows you to switch between two HDMI sources on a single HDMI display. Fast auto-switching ensures minimal time for switching between HDMI sources. The switch provides effortless operation with advanced auto-sensing. it detects the latest connected HDMI source and automatically switches to it. The video switch maintains Ultra HD 4K picture quality while switching between content from HDMI source devices including Blu-ray players and DVD players, computer systems, video game consoles, digital cable, satellite boxes, and A/V receivers. - Impressive Image Quality with 4K Support
-
- The video switch maintains Ultra HD 4K picture quality while switching between content from two different HDMI source devices including Blu-ray and DVD players, computer systems, video game consoles, digital cable, satellite boxes, and A/V receivers.
- UHD 4K support ensures a higher level of image clarity and visibility (8.29 million pixels). It provides a more engaging visual experience for audiences in a wide range of venues including conference centers, boardrooms, educational facilities, and commercial settings.
- Fast and Easy Operation
-
- Fast auto-switching ensures minimal time for switching between HDMI sources. The switch provides effortless operation with advanced auto-sensing, detecting the latest connected HDMI source and automatically switching to it. Auto-switching makes it easy to share a projector or display, and ensures no downtime in a digital signage application if a source signal is accidentally powered off or fails.
- Priority switching identifies one port to take priority for HDMI sources when multiple sources are connected. It is ideal for applications such as digital signage.
- Manual switching enables you to manually select your HDMI source with front panel buttons that are easy to use.
- An IR remote control is included in the box, enabling you to select your desired input source remotely. The RS-232 serial control interface ensures easy remote operation with serial control-enabled devices.
- Hassle-Free Setup with Plug-and-Play Installation
-
- The switch saves time during setup with EDID emulation which ensures that all your display settings, such as native resolution and refresh rate, are communicated between your display and video source devices. EDID emulation maximizes compatibility with your 4K display, ensuring a convenient plug-and-play installation and sharp image quality.
- General Features
-
- Versatile audio configuration with support for 5.1 or 7.1 surround sound
- Backward compatible with high-definition 1080p
UPC: 065030862356 In the Box StarTech VS221HD4KA 2-Port HDMI 4K Automatic Video Switch with Fast Switching Remote Control Universal Power Adapter RJ11 Cable RJ11 to DB-9 Serial Adapter Mounting Kit Limited 2-Year Warranty Brochure PDF 207.6kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech VS221HD4KA 2-Port HDMI 4K Automatic Video Switch with Fast Switching in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech VS221HD4KA Specs | | | Audio | Supported | | Industry Standards | HDMI 1.4
Chipset ID: Microchip PIC24 | | Output Signal | HDMI | | Ports | 2 | | | | Audio Specifications | 7.1 surround sound | | Maximum Digital Resolutions | 4K @ 30 Hz | | Supported Resolutions | 3840 x 2160 (UHD 4K)
2560 x 1600
1920 x 1200
1920 x 1080p
1280 x 720p | | Wide Screen Supported | Yes | | | | Connector A | 1 x HDMI (19-pin), female | | Connector B | 2 x HDMI (19-pin), female
1 x RJ11, female | | | | LED Indicators | 2 x Active ports
1 x Power | | | | Input Voltage | 110 to 240 VAC | | Output Current | 1.5 A | | Output Voltage | 12 VDC | | Power Source | AC adapter (included) | | | | Humidity | 0 to 90% | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | | | Dimensions (H x L x W) | 0.6 x 3.9 x 2.4" / 1.5 x 9.9 x 6.1 cm | | Weight | 6.3 oz / 178.6 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 9.3 x 6.1 x 2.6" |
