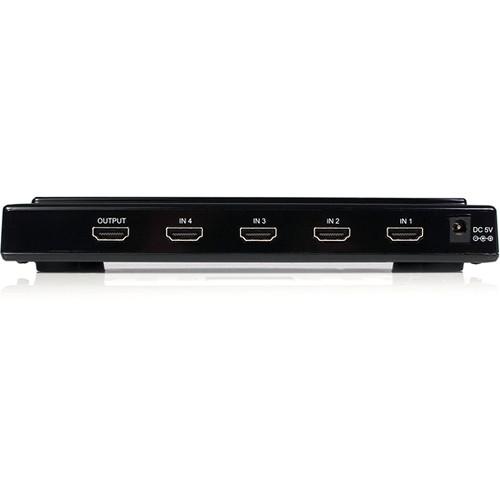

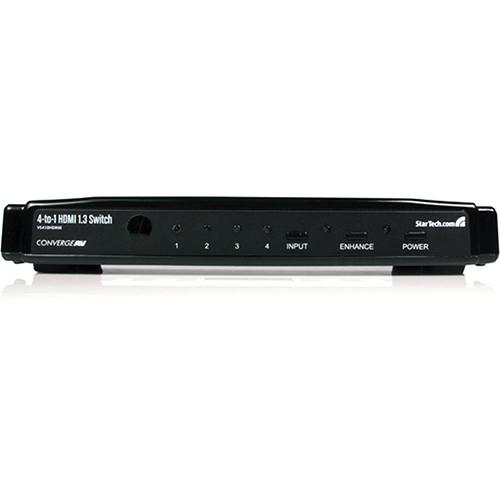

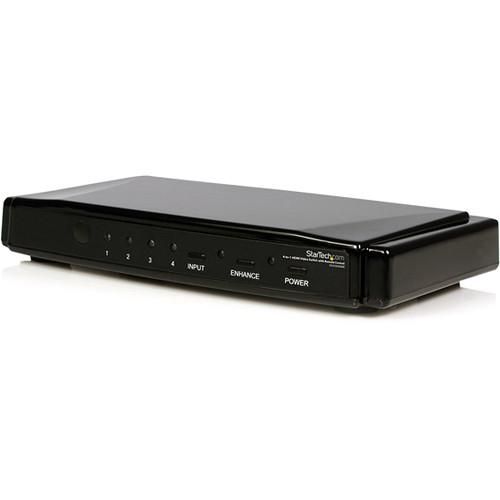

User Manual for StarTech VS410HDMIE 4 to 1 HDMI Video Switch with Remote Control Click to enlarge the picture
Contents of the user manual for the StarTech VS410HDMIE 4 to 1 HDMI
- Product category: Routers & Switchers StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Routers & Switchers
 |
User manual for the StarTech VS410HDMIE 4 to 1 HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The black VS410HDMIE 4 to 1 HDMI Video Switch with Remote Control from StarTech lets you connect up to 4 HDMI-enabled output devices to a single HDMI input, eliminating the need to manually exchange cables to switch between high-definition audio video sources.
The HDMI Switch fully supports high-speed HDMI device connections, as well as Dolby Digital TrueHD and DTS-HD high-definition audio formats and display resolutions up to 1080p (HDTV) / 1920 x 1200 (computer), ensuring a high-quality audio and video experience. Suitable for long-distance connections, this switch offers a signal enhancement feature that can be used with longer cable connections, boosting the HDMI signal for optimized quality.
The Switch provides a good solution for connecting multiple HDMI out devices (Blu-Ray players, DVD Players, and more.) to a single port on a high-definition LCD/Plasma TV. - General
-
- Easy-to-use remote control for switching between devices at the touch of a button
- Supports HDTV resolutions from 480i to 1080p
- Supports PC resolutions from 640 x 480 to 1920 x 1200
- High-speed HDMI, HDCP 1.1, and DVI 1.0 compliant
- Dolby Digital TrueHD and DTS-HD audio
- Allows you to easily switch between 4 HDMI devices without having to unplug anything from your display saving time and hassle
- Integrated signal booster ensures a high-quality signal over cable lengths up to 65’ (20m)
- Auto signal enhancement
- Plastic housing
- Applications
-
- Suitable for home theater situations where you have run out of inputs on your current television to accommodate all of your devices
- Great for use in presentations, trade shows, conferences, retail, and entertainment applications where multiple source devices are required
- Use for video wall setups in retail environments to support several input sources and make them easily switchable
- Suitable for professional A/V test benches testing multiple devices
- Good solution for connecting and switching between multiple PCs to a single display
- Certifications, Reports, and Compatibility
-
- CE & FCC compliant
- CE / FCC / UL certified

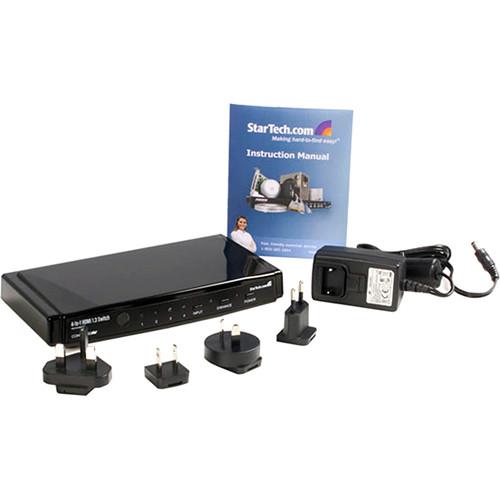

UPC: 065030828253 In the Box StarTech VS410HDMIE 4 to 1 HDMI Video Switch with Remote Control (Black) IR Remote Control Power Adapter Limited 2-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech VS410HDMIE 4 to 1 HDMI Video Switch with Remote Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech VS410HDMIE Specs | | | Connector 1 | 4: HDMI (19-pin) female | | Connector 2 | 1: HDMI (19-pin) female | | | | Cable Length | Maximum: 65.6' (20.0 m) | | Supported Resolutions | HDTV: 480i to 1080p
PC: 640 x 480 to 1920 x 1200 | | Color Depth | 30/36-bit deep color | | Bandwidth | 2.25 Gb/s (single link) | | Audio | Supports Dolby Digital TrueHD and DTS-HD | | | | Input Voltage | 110 to 240 AC | | Output Voltage | 5 VDC | | Output Current | 1 A | | Center Tip Polarity | Positive | | | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Dimensions (L x W x H) | 9.4 x 4.1 x 1.7" (240 x 104 x 44 mm) | | Weight | 44.1 oz (1250.0 g) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.1 x 7.5 x 2.0" |
