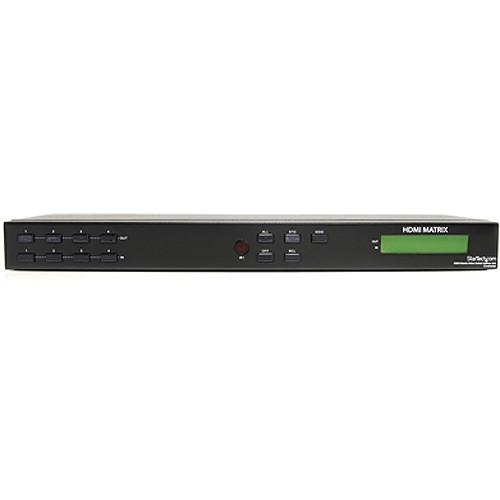

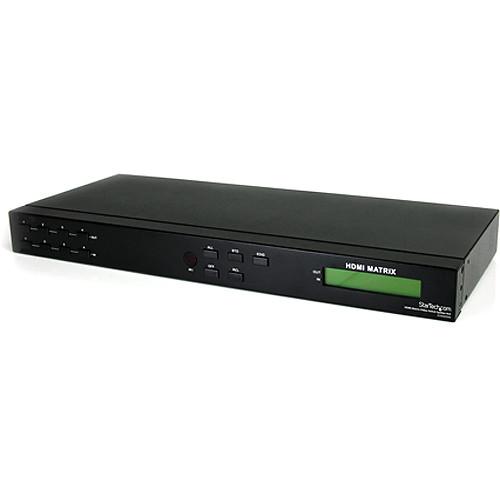

Product description The black VS440HDMI 4 x 4 HDMI Matrix Video Switch Splitter with Audio and RS232 from StarTech lets you switch share up to 4 distinct HDMI or DVI inputs (using HDMI to DVI adapters sold separately), with audio, between 4 independent displays or projectors.
Providing convenient front push-button and RS232 PC software control, this matrix switch allows each input and the corresponding audio to be switched individually, meaning that different A/V sources can be shown on each output, or a single source can be output to several offering maximum flexibility.
The Switcher features a front panel LCD display for easy status monitoring, plus an included remote control and an IR extender module for simple control from a distance.
Designed to provide maximum functionality while saving space, the HDMI Video Matrix Switch can be used as a standalone solution or rack-mounted using the included ear mounts. - General
-
- Included software allows storage of up to 4 distinct display combinations
- Allows 4 PCs/Media players to provide video to 4 displays
- Allows storage and recall of a display combination using front panel buttons
- Supports connection to DVI displays using HDMI to DVI adapters (sold separately)
- Equipped with easy-to-use front panel selection buttons
- Supports resolutions up to 1920 x 1080 / 1080p
- Maximum cable length of 32’ (10m)
- Front panel LCD for easy status monitoring
- RS232 interface for PC control
- Matrix switching functionality gives you full control of the video source displayed on each monitor, at the touch of a button
- Front panel push-buttons, RS-232 PC port, IR extension module, and IR remote included for simple control and flexible switching options
- Storage of display configurations allow for convenient recall of preferred combinations
- Audio and EDID support
- Rack mountable
- Widescreen supported
- Metal housing and steel enclosure type
- Applications
-
- Suitable for connecting/switching multiple sources in test bench facilities, data centers, help desks, and video broadcasting facilities
- Suitable for digital signage applications in retail environments requiring more than one media player or PC to be connected
- Allows trainees/students to see what is on your display and then switch them back to their own display after the demonstration completes
- Lets you run multimedia presentations with supporting data displayed on another monitor in business conference rooms or at trade shows
- Allows you to take full control of your A/V sources and displays/projectors; you can select any source on any display
- Certifications, Reports, and Compatibility
- CE & FCC compliant

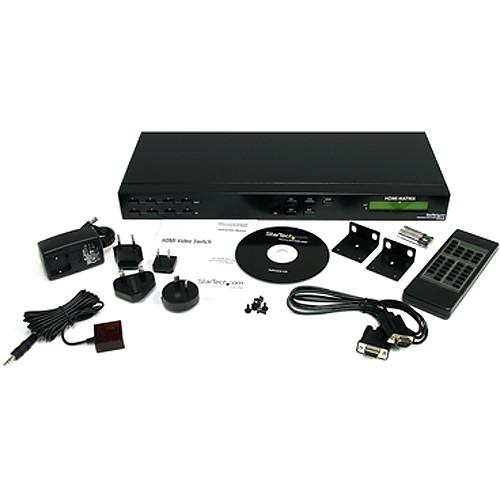

UPC: 065030842105 In the Box StarTech VS440HDMI 4 x 4 HDMI Matrix Video Switch Splitter with Audio and RS232 (Black) 2 x Rack Mount Bracket RS232 Cable IR Remote Control IR Extender Module DB9 RS232 Cable 6 x Screw for Rack Mount Bracket Universal Power Adapter Software CD Limited 2-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech VS440HDMI 4 x 4 HDMI Matrix Video Switch Splitter with Audio and RS232 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech VS440HDMI Specs | | | Input Ports | 4 | | Cabling Type | HDMI | | | | Connector Type | 1: DB-9 (9-pin; D-sub) female | | Connector 1 | 4: HDMI (19-pin) female | | Connector 2 | 4: HDMI (19-pin) female | | System Requirement | HDMI-enabled video source device(s) (i.e., computer, game console, PVR/DVR, and more)
HDMI-enabled display device(s) (i.e., monitor, projector, HDTV, and more)
AC power outlet (sold separately)
Software: Microsoft Windows 2000 / XP / Vista / 7 (32/64-bit), 32 MB RAM, 10 MB storage space, CD-ROM drive, RS232 serial port | | Video Signal | High-speed HDMI (HDMI 1.3) | | Number of Inputs | 4 | | Number of Outputs | 4 | | External Connectors | 4 x HDMI type A female (input)

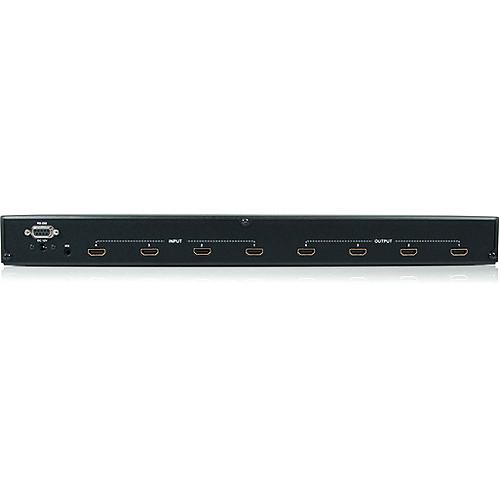

4 x HDMI type A female (output)
1 x DB9 female
1 x IR extender connector
1 x DC power | | | | Cable Length | Maximum: 32.8' (10.0 m) | | Resolution | Video: 1080p / 1920 x 1200 | | Bandwidth | 225 MHz | | | | Input Voltage | Universal 115 to 230 AC | | Input Current | 0.6 A | | Output Voltage | 12 VDC, 1,500 mA | | Output Current | 1.5 A | | Center Tip Polarity | Positive | | | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | 0 to 95% | | | | Dimensions (L x W x H) | 17.3 x 7.3 x 1.7" (440.0 x 185.0 x 42.0 mm) | | Weight | 5.2 lb (2.4 kg) | | | | Package Weight | 7.45 lb | | Box Dimensions (LxWxH) | 22.756 x 10.551 x 3.465" |
