User Manual for StarTech WIFI2HDVGA 1080p Wireless Presentation and Collaboration System Click to enlarge the picture
Contents of the user manual for the StarTech WIFI2HDVGA 1080p Wireless Presentation and
- Product category: Video Conferencing Accessories StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Video Conferencing Accessories
 |
User manual for the StarTech WIFI2HDVGA 1080p Wireless Presentation and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description Present and collaborate wirelessly with the StarTech WIFI2HDVGA 1080p Wireless Presentation and Collaboration System. Users can connect to it to display and edit documents in real time as well as instantly share the edited file with others. Using Wi-Fi or LAN, the system can also mirror up to eight devices on a single screen during presentations. Devices running Windows, Mac OS X, and Android are supported. It has HDMI and VGA video outputs as well as RCA and optical audio outputs. - Streamline Your Digital Collaboration
- The presentation hub can help you boost office productivity by making it easier to collaborate and communicate. You can share and switch between up to eight different computers to view documents and multimedia content, which eliminates the disruption of each user having to connect and disconnect each time they want to present information from their laptop. The wireless presentation hub is also a wireless access point, enabling you to browse the Internet while your video is connected.
- Make Notes and Share Files
- This system takes collaboration a step further, with features that help capture in-meeting discussions and ideas. You can write and draw directly on the presentation content, or highlight important areas of focus with document markup capability. The presentation system also lets you transfer documents to other meeting participants or download documents from cloud applications such as Dropbox, so you can annotate your presentation material and easily distribute the outcome of the discussion to your colleagues.
- Bring Your Own Device
- With the video hub, you can turn your VGA or HDMI television, monitor, or projector into a wireless display. In Collaboration mode, you can use the included nScreenShare software to quickly and intuitively share your display between different computers. The software works with both Windows and Mac computers, making it easy to adapt to conference rooms and classrooms where different platforms may be used. In Wireless Display mode, you can mirror any device that natively supports wireless display, such as your Android smartphone or tablet using AllShare Cast or Cast Screen applications, or your Windows 8.1 laptop, Ultrabook, or Surface tablet. In Wireless Display mode, you don't have to install additional software, ensuring it will work for Bring Your Own Device (BYOD) applications at your office.
- Easier Moderation
- The wireless presentation hub is designed to keep your meetings running smoothly with a simple and intuitive user interface. The software features a Moderator mode, which enables you to assign a leader, such as a teacher, instructor, or meeting head, to better organize the session and control who is allowed to present and share their screen.
- Additional Features
-
- Share video wirelessly without the hassle of cables and clutter
- Collaborate with coworkers by easily switching between devices
- Intuitive operation with Windows and Mac computers
- Supports HDMI or VGA monitors, televisions, and projectors
- Discrete RCA and TOSLINK audio outputs
- Wired LAN connection for support of computers without Wi-Fi

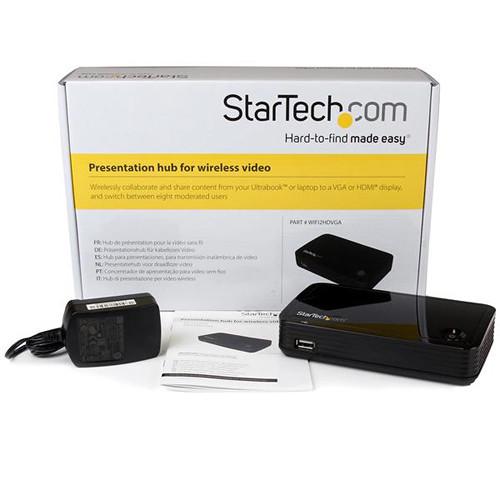

UPC: 065030861427 In the Box StarTech WIFI2HDVGA 1080p Wireless Presentation and Collaboration System Power Adapter Limited 2-Year Warranty Brochure PDF 203.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech WIFI2HDVGA 1080p Wireless Presentation and Collaboration System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech WIFI2HDVGA Specs | OS Compatibility | Windows: 8.1, 8, 7, Vista (32/64-bit)
Android: 4.3 and later
OS X: 10.11, 10.10, 10.9, 10.8, 10.7, 10.6
Wi-Fi, Wi-Di, or Miracast | | Supported Resolutions | 4:3: 1600 x 1200, 1280 x 1024, 1280 x 768, 1024 x 768, 800 x 600
16:9: 1920 x 1080, 1680 x 1050, 1440 x 900, 1366 x 768, 1280 x 800, 1280 x 720 1080p supported only on Intel HD Graphics Adapters (HD 2000 or above). All other graphics adapters will be limited to 720p. Not intended for HD playback due to wireless video performance limitations. | | Inputs | 1 x Ethernet
1 x Power

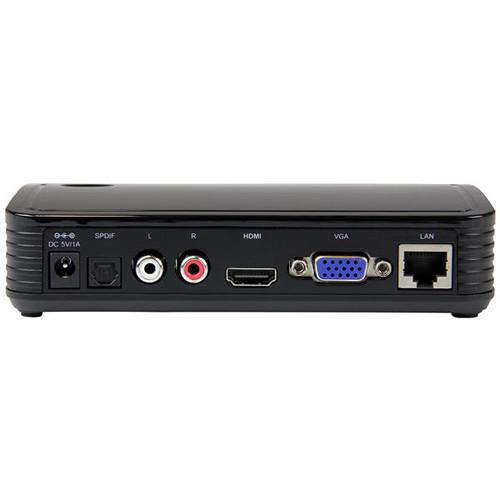

1 x USB Type-A for firmware updates | | Outputs | 1 x HDMI
1 x VGA
1 x Optical SPDIF
1 x RCA stereo L/R | | Wireless Standards | IEEE 802.11n Draft 3.0, IEEE 802.11g | | Frequency Range | 5 GHz ISM Bands (5.15 to 5.85 GHz)
2.4 GHz ISM Bands (2.412 to 2.484 GHz) | | Environmental Requirements | Humidity: 20 to 60%
Operating Temperature: 32 to 131°F (0 to 45°C)
Storage Temperature: -4 to 140°F (-20 to 60°C) | | Voltage | Input: 100 to 240 VAC, 0.3 A
Output: 5 VDC, 1.0 A | | Dimensions (W x H x D) | 3.6 x 1.3 x 5.8" (9.2 x 3.3 x 14.8 cm) | | Weight | 6.1 oz (172.0 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 11.5 x 7.5 x 2.8" |
