Product description Extend your HDMI signals up to 165' with the StarTech Wireless HDMI Extender. It supports resolutions up to 1080p and will also extend your IR signals thanks to the included IR blaster and receiver. For added security, the extender uses AES 128 encryption. - Cut the Cord and the Installation Work
- The wireless HDMI extender offers an alternative to traditional copper video cabling, which saves your budget by avoiding the cost of installing an expensive wiring infrastructure.
- Versatile Wireless Video
- The extender is suitable for digital signage applications because it lets you install your display virtually wherever you want, unlike wired solutions that force you to compromise on the location of your display based on the available cabling.
- Designed for Easy Installation and Operation
- This wireless video extender is designed to be easy to install and use. With simple plug-and-play installation, setup is as easy as connecting the video cables and turning on the extender. The wireless video extender doesn't require any software or drivers, saving you time by avoiding complicated software installation and configuration. You don't need to be an A/V technician to use this extender, which makes it a suitable solution for commercial markets such as retail storefronts and lobbies, as well as healthcare and education facilities.
- Fast and Secure Performance
- With an assortment of convenient features, this wireless HDMI extender accommodates virtually any remote video application. You can transmit your audio and video to a remote location with less than 100 milliseconds of latency, making this extender suitable for interactive applications such as remote touchscreens and video games. To keep your video transmission secure, the extender uses AES 128 encryption.
- Easy Remote Control
- The wireless HDMI extender also works to extend an infrared signal, enabling you to control your video source from the remote location. Easy-to-install mounting brackets are also included with the wireless extender kit for a tidy, professional installation.

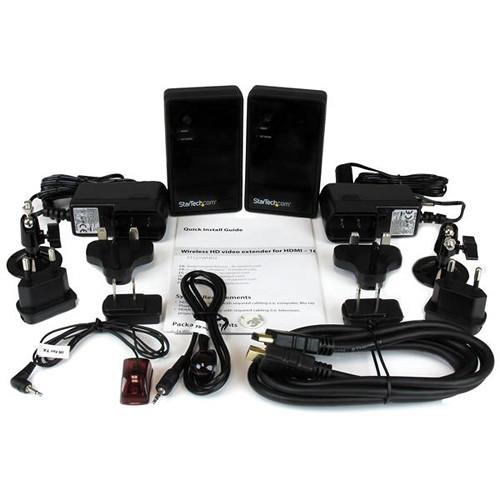

UPC: 065030861496 In the Box StarTech Wireless HDMI Extender (165') Transmitter Receiver HDMI Cable IR Blaster IR Receiver 2 x Mounting Brackets 2 x Universal Power Adapters Limited 2-Year Warranty Guides & Manuals dtbbqfbszrfutzaeaxdvtsuyctsy More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech Wireless HDMI Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech Wireless HDMI Extender can be downloaded in PDF format at the link stated below.

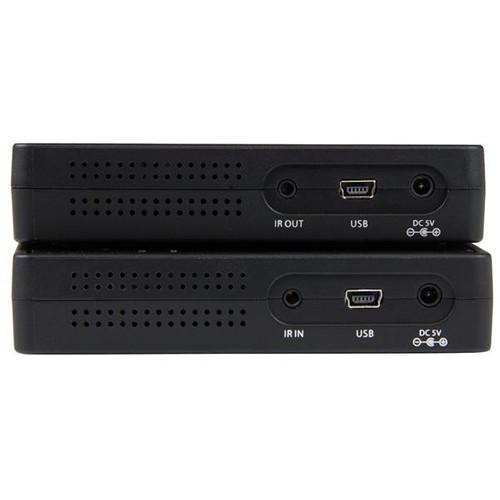

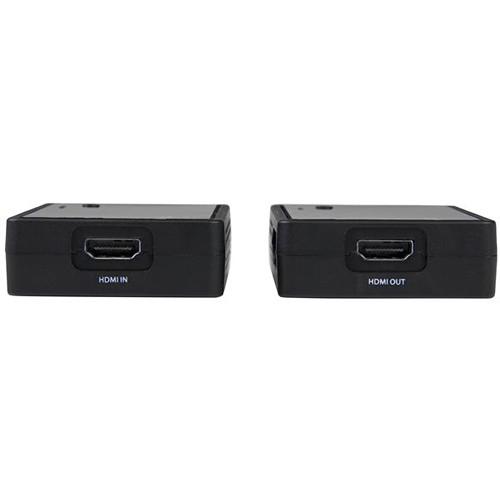

Technical parametersStarTech ST121WHD2 Specs | Range | 165' (50 m) | | Maximum Resolution | 1080p | | Encryption | AES 128 | | Frequencies Supported | 5.1 to 5.9 GHz | | Connectors: Transmitter | 1 x HDMI in
1 x IR blaster out
1 x Mini-USB in (firmware updates only)
1 x Power in | | Connectors: Receiver | 1 x HDMI out
1 x IR blaster in
1 x Mini-USB in (firmware updates only)
1 x Power in | | LED Indicators | 2 x Video link
2 x Network link | | Housing | Plastic | | Rack Mountable | Yes | | Environmental Requirements | Operating Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Relative Humidity: 5 to 90% | | Plug Type | H | | Center Tip Polarity | Positive | | Power Adapter | 5 VDC, 2 A | | Power Requirements | 100 to 240 VAC, 0.4 A | | Dimensions | Transmitter and Receiver: 2.3 x 0.8 x 3.9" (58 x 20 x 100 mm) | | Weight | Transmitter and Receiver: 4.8 oz (136 g) | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 10.6 x 8.1 x 3.6" |
