Steadicam AERO 15 Stabilizer System with

Search your instruction manual in PDF to download

User Manual for Steadicam AERO 15 Stabilizer System with Canon LP-E6 Battery Plate and 7" Monitor

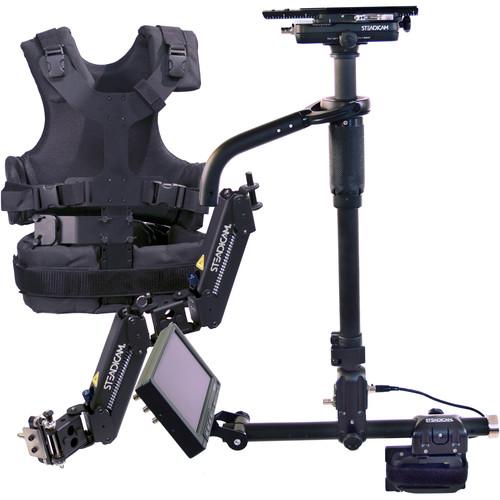

Click to enlarge the picture
Steadicam AERO 15 Stabilizer System with Canon LP-E6 Battery Plate and 7" Monitor Contents of the user manual for the Steadicam AERO 15 Stabilizer System with
  • Product category: Stabilizer Systems Steadicam
  • Brand: Steadicam
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Steadicam Stabilizer Systems

User manual for the Steadicam AERO 15 Stabilizer System with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Steadicam product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Steadicam user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Steadicam product will considerably shorten its lifespan!



Product description

The AERO 15 Stabilizer System with Canon LP-E6 Battery Plate and 7" Monitor from Steadicam is designed for cameras weighing up to 10 lb. This Aero 15 unit includes a Canon LP-E6 battery plate; additional battery plates may be purchased separately, enabling you to use another type of battery to power the rig. The Aero Stabilizer is a lightweight, beginner-friendly entry in the Steadicam lineup. Features include tool-free adjusting, a camera quick-release mount, a two-section center post, and a rigid camera stage. Balance weights are included for use with super-light cameras. With practice, you'll be using the Aero Stabilizer to capture smooth, stable dynamic shots.This Aero combination includes the A-15 vest and arm, a Canon LP-E6 battery plate, a 7" on-board HD monitor, a quick-release plate, a 1/2" docking bracket, and eight 4 oz. balance weights. The A-15 vest's padded, adjustable chest and hip straps, arm socket block, and vest length are all adjustable to the user's height and size. The two-stage A-15 arm includes a socket quick-release pin, and side-to-side adjustment wheels for a proper fit.
  • Steadicam Aero Stabilizer with A-15 Arm, Vest, and 7" Monitor (No Battery Mount) The Aero Stabilizer with A-15 Arm, Vest, and 7" Monitor from Steadicam is designed for cameras weighing up to 10 lb. This Aero unit does not include a required battery mount; several models are available separately. The Aero Stabilizer is a lightweight, beginner-friendly entry in the Steadicam lineup. Features include tool-free adjusting, a camera quick release mount, a two-section center post, and a rigid camera stage. Balance weights are included for use with super-light cameras. With practice, you'll be using the Aero Stabilizer to capture smooth, stable dynamic shots.This Aero combination includes the A-15 vest and arm, a 7" on-board HD monitor, a quick release plate, a 1/2" docking bracket, and eight 4 oz. balance weights. It does not include a battery plate; several pro-style battery mounts are available separately. The A-15 vest's padded, adjustable chest and hip straps, arm socket block, and vest length are all adjustable to the user's height and size. The two-stage A-15 arm includes a socket quick release pin, and side-to-side adjustment wheels for a proper fit. Note: A battery mount plate is required to use the Aero 15; several pro-style battery plates are available separately.

    Key Features

    • Supports up to 10-lb cameras and includes counterweights for balancing super-light cameras
    • Two-stage carbon fiber post can be adjusted without the use of tools and extends from 23.5-35.5"
    • Locking quick release camera plate lets you easily mount and remove the camera
    • A-15 vest and arm can be adjusted to fit the user's height and size
    • Included 7" on-board HD monitor comes with a mounting bracket
    • Sled detaches for easier transport and storage
    UPC: 884613032869
  • Steadicam Canon LP-E6 Battery Mount for Steadicam AERO 15 and 30 This is a Canon LP-E6 Battery Mount from Steadicam designed to attach to the Steadicam AERO 15 or AERO 30 Stabilizer and support Canon LP-E6 batteries to power the stabilizer. UPC: 884613031770
In the Box
  • Aero Stabilizer with A-15 Arm, Vest, and 7" Monitor (No Battery Mount) ucvabsqevxqcafczbscvwxeytqdszeztwf
  • A-15 Vest
  • Camera-Mounting Chassis (Sled)
  • 2-Section Carbon Fiber Center Post
  • Cross Rod
  • 7" HD Monitor (MSC-200595)
  • Monitor Mount
  • 1/2" Docking Bracket (804-7900)
  • 8 x 4 oz Balance Weight
  • Limited 1-Year Warranty
  • Canon LP-E6 Battery Mount for Steadicam AERO 15 and 30
Table of Contents




Upload User Manual

Have you got an user manual for the Steadicam AERO 15 Stabilizer System with Canon LP-E6 Battery Plate and 7" Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Steadicam Aero Stabilizer with A-15 Arm, Vest, and 7" Monitor (No Battery Mount)
    Construction Aluminum, Carbon Fiber
    Payload Up to 10 lb / 4.5 kg
    Vest A-15
    Quick Release Yes
    Gimbal 3-Axis
    Monitor 7" / 17.8 cm HD LCD monitor
    Connectors Top Stage Front:
    1 x D-tap
    1 x HD BNC

    Base Rear:
    Power In: 3-Pin Mini XLR3

    Base Front:
    Monitor Power Out: 3-Pin Mini XLR3
    1 x HD BNC
    Battery Mount Not Included (Available Separately)
    Post Length 25.5 x 35.5" / 64.8 x 90.2 cm
    Weight Sled with Monitor & Battery Mount (Mount Not Included):
    9.75 lb / 4.4 kg

    Balance Weights (Each):
    4 oz / 113 g
    Box Dimensions (LxWxH) 26.0 x 16.5 x 16.2"
  • Steadicam Canon LP-E6 Battery Mount for Steadicam AERO 15 and 30
    Box Dimensions (LxWxH) 7.3 x 5.3 x 4.1"

Rating

60% users recommend this product to others. And what about you?
Rating: 3 of 5

This product has already been rated by 49 owners. Add your rating and experience with the product.
