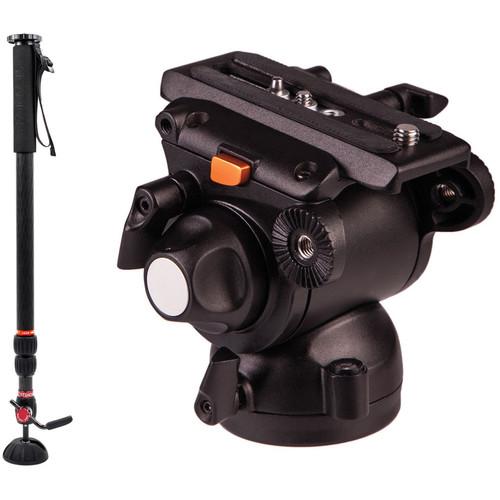

Steadicam AIR 25 Monopod with E-Image

User Manual for Steadicam AIR 25 Monopod with E-Image GH03 Fluid Head Kit

• Product category: Monopods Steadicam
• Brand: Steadicam
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Steadicam Monopods

Product description

• Steadicam AIR 25 Monopod
  • Steadicam Air Monopod
  Steadicam continues to innovate. What's special about the Steadicam AIR 25 Monopod is that to adjust its height you simply step on a foot pedal located on the bottom. This gives the flexibility to adjust on the spot whenever you recognize an opportunity to capture a lower or higher angle or even continuously adjust back-and-forth between the two. This is great for when capturing something like a dance performance, wildlife, sporting events or other fast-paced motion. When you push the pedal, it simultaneously holds the monopod secure on the ground while allowing you to adjust the height.

  Because of their compact size and ability to be moved in all directions — including pushing in — while providing genuine stability, monopods are considered very useful camera supports in run-and-gun productions, including weddings, fashion shows, and other events. What the Steadicam AIR 25 does with the push pedal is to add an element that allows you to take advantage of nearly all opportunities that present themselves.

  Made of carbon fiber, the Steadicam AIR 25 is very lightweight, at just 3.5 lb, adding even more to its versatility. And it offers a high weight capacity of 25 lb — so you can mount full-size, fully-loaded cine cameras as well as super long lenses.
  Key Features
  • • Instant, push-pedal, telescoping height-adjustment
    • Non-slip, rubberized pedal
    • High 25 lb weight capacity
    • 28" collapsed height
    • 62.5" fully extended height
    • Reversible 1/4"-20 and 3/8"-16 mounting screw (top plate comes off, screw reverses, and top plate secures back on)
    • Gas-lift and spring activated foot pedal
    • 3 sections, including one twist leg lock to allow for 360-degree rotation
    • Lightweight at 3.5 lb with carbon fiber construction
  UPC: 884613035525
• E-Image GH03 Fluid Head with Flat Base
  • Steadicam Air Monopod
  The E-Image GH03 Fluid Head with Flat Base supports cameras and accessories weighing up to 11 pounds. The GH03 head features an Easy Lock Baseplate system that combines the balance adjustment of a sliding baseplate with the ease of a quick release system. It provides a fixed counterbalance setting that helps the fluid head support loads up to 11 pounds and won't force you to fight the head when working with lightweight camera systems.

  The variable tilt drag allows you to adjust the fluid head to suit your shooting style or the needs of the shot. The head features a built in 1/4"-20 accessory socket for available monitor support arms or other accessory items and independent pan and tilt locks. The head incorporates a bubble level, panhandle rosettes on the left and right side of the head (one panhandle is included), and a 1/4"-20 threaded accessory socket for use with optional accessories.
  • The fluid head features a flat base with a 3/8"-16 threaded mounting hole. This allows you to mount it in tripod legs with a 3/8"-16 threaded mounting screw, or 1/4"-20 screw with optional adapter. You can also mount optional jib arms or camera sliders that support flat base heads.
  • You can mount this head to optional half-ball system to gain ball-leveling capabilities, and then quickly switch back to the flat base for situations requiring that mount.
  • The Easy Lock baseplate provides the balance adjustment range associated with a sliding balance plate but combines the ease of a quick release, as you can pop the camera (on the Easy Lock plate) into the top of the fluid head without having to support the camera while lining up the plate with the head. Easy to pop in, it stays secure until you release it, and you maintain the sliding balance adjustments.
  • The Easy Lock camera plate features a guided sled with a retractable locating pin and supports both 1/4"-20 and 3/8"-16 camera tie-down screws (included).
  UPC: 847983012091

• AIR 25 Monopod uqesrwaztebasavxryfzcyzvwzaqrxvucv
• Limited 1-Year Warranty

• E-Image - GH03 Fluid Head with Flat Base

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Steadicam AIR 25 Monopod

  Camera Mounting Screw	1/4"-20 Male, 3/8"-16 Male

  Leg Sections	3

  Load Capacity	25 lb / 11.3 kg
  Maximum Working Height	62.5" / 160 cm
  Folded Length	28" / 71 cm
  Materials	Aluminum Alloy (Head) Carbon Fiber (Monopod)
  Weight	3.5 lb / 1.6 kg

  Box Dimensions (LxWxH)	32.8 x 4.4 x 4.0"

• E-Image GH03 Fluid Head with Flat Base

  Camera Plate Features	Sliding Balance Plate
  Camera Plate Type	Easy Lock

  Base Mount	3/8"-16 Thread

  Drag Control	Pan: Fixed
  Vertical Tilt	+90 Rating 60% users recommend this product to others. And what about you? This product has already been rated by 29 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
