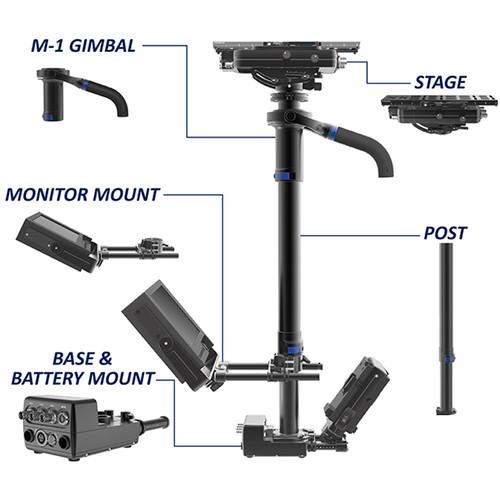

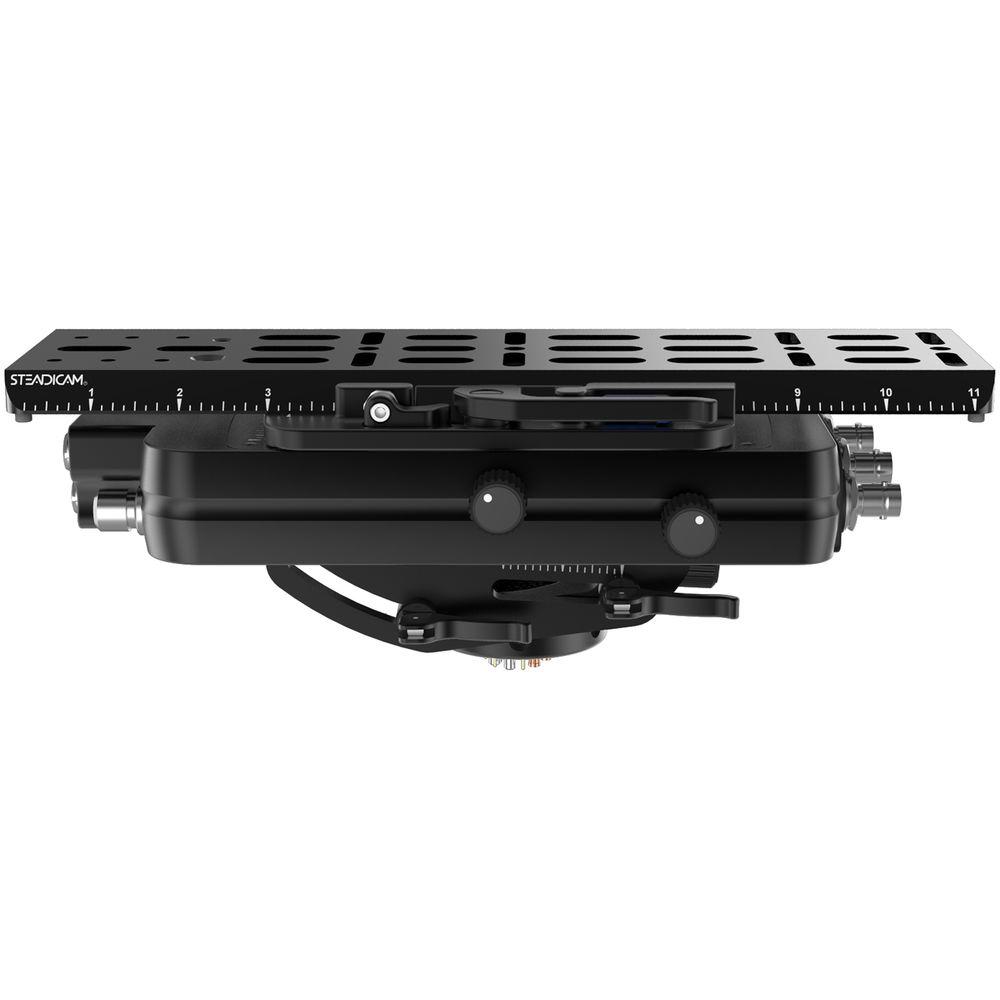

Product description Steadicam's M1 Sled is designed for professional applications in television and cinema. Able to support and stabilize camera packages weighing up to 48 pounds, large ENG, EFP, and cinema cameras can be balanced to achieve smooth motion through a scene, with the legendary flowing aesthetic that Steadicam products are known for.Carbon fiber and aluminum are the main materials in the M1's construction. They keep the M1 light while allowing it to remain rigid and supportive. The extendable post has integral cables for power and video that run through it. Cables terminate at the camera plate, the base, and the monitor mount. This iteration of the M1 includes a 8" Transvideo monitor whose display, at a brightness of 1500 cdm², is easily visible outdoors. The M1 system is comprised of modular components, and can be easily serviced in the field to fit the needs of the shoot.Note: This is the sled only, a separately available vest and arm are required for proper operation - Stage
- The M-1 stage is built for holding high loads with precision and center drives for rigidity and smooth balance adjustment. The entire stage can be easily removed from the central post system for cleaning or repairs.
- Drop-in secure camera balance adjustment mounting system
- Industry-standard 15mm diameter rod x 60mm spacing for accessory mounting
- Vernier drive tilt head for precise adjustments
- Rigid aluminum construction
- Tally interconnect
- M-1 Gimbal
- The M-1's gimbal is precisely balanced to allow smooth operation. A Ø2.15" grip, accompanied by its low profile over-center post clamp is designed with ergonomics in mind. The M-1 gimbal itself is field-serviceable for easy cleaning and maintenance.
- Low-profile quick-release gimbal clamp
- Removable and interchangeable gimbal handle
- Compatible with the Steadicam Tango boom

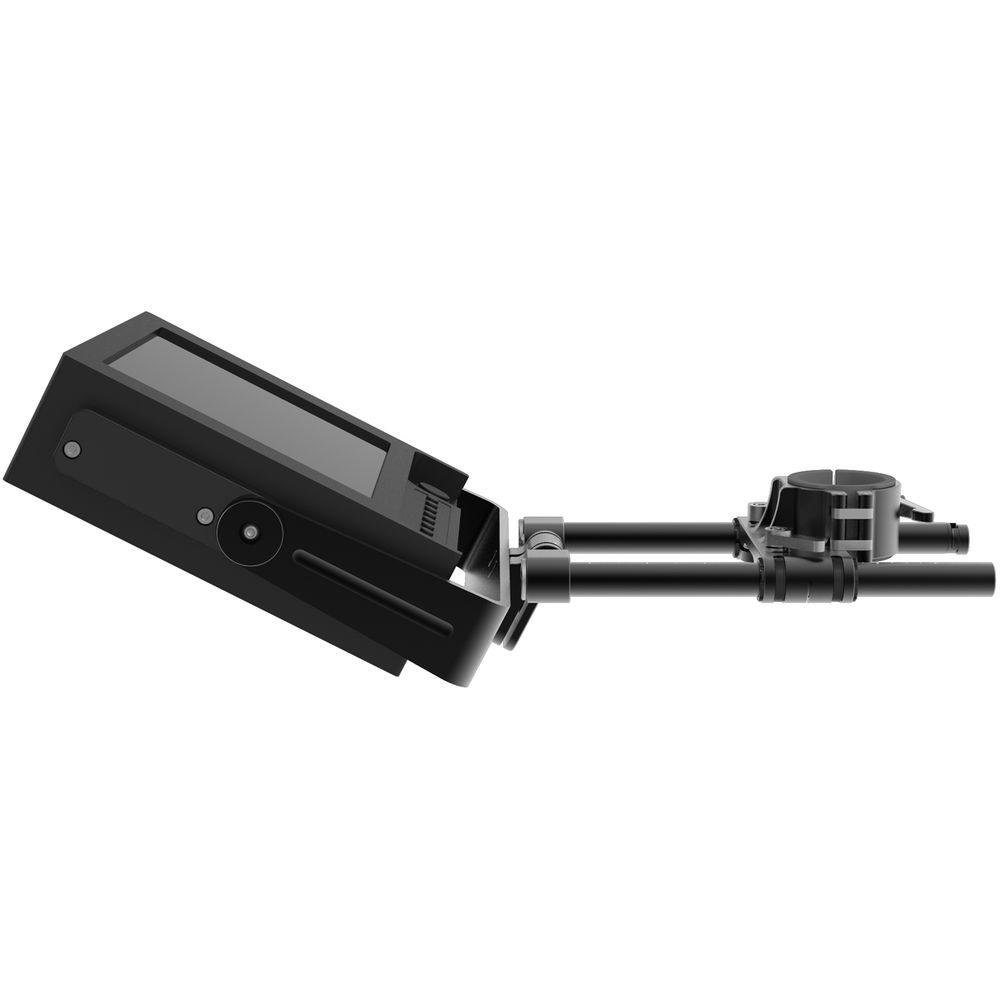

- Monitor Mount
-
- Custom-mounted for center-of-gravity compensation
- 15mm rod mounting with quick-release rod clamp
- Laser-etched graduated position markings
- 8" Transvideo Monitor
-
- Bright 1500cdm² display
- LEMO connections
- Full monitoring tools suite for focus, exposure, lens data, and more

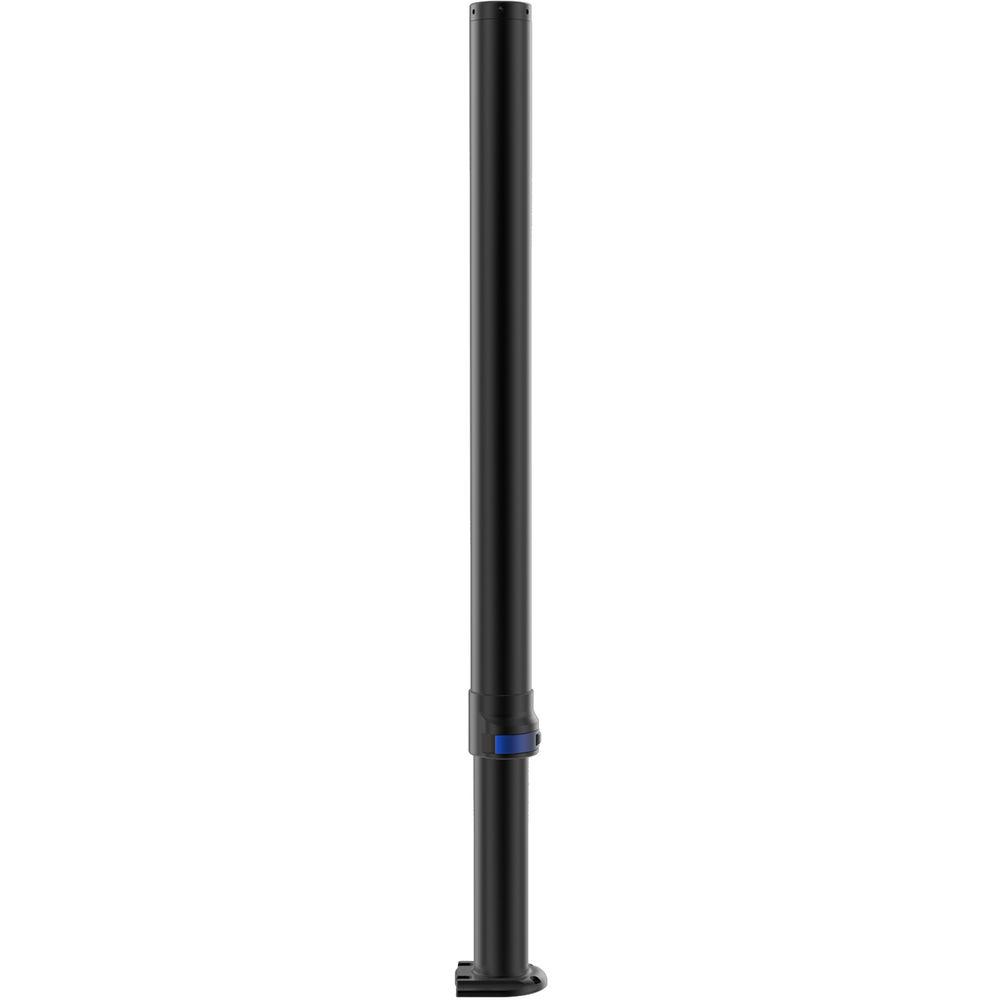

- Post
- With a compacted length of 26" and extended length of 41", the M-1 post design allows for a large extension of more than 1.5x. Interchanging of posts or removing of posts for gimbal service is simple and easy.
- Rigid high-modulus carbon fiber construction
- High amperage 14AWG internal power wiring
- Low-profile quick-release post clamp
- 75-ohm coaxial video cable integration

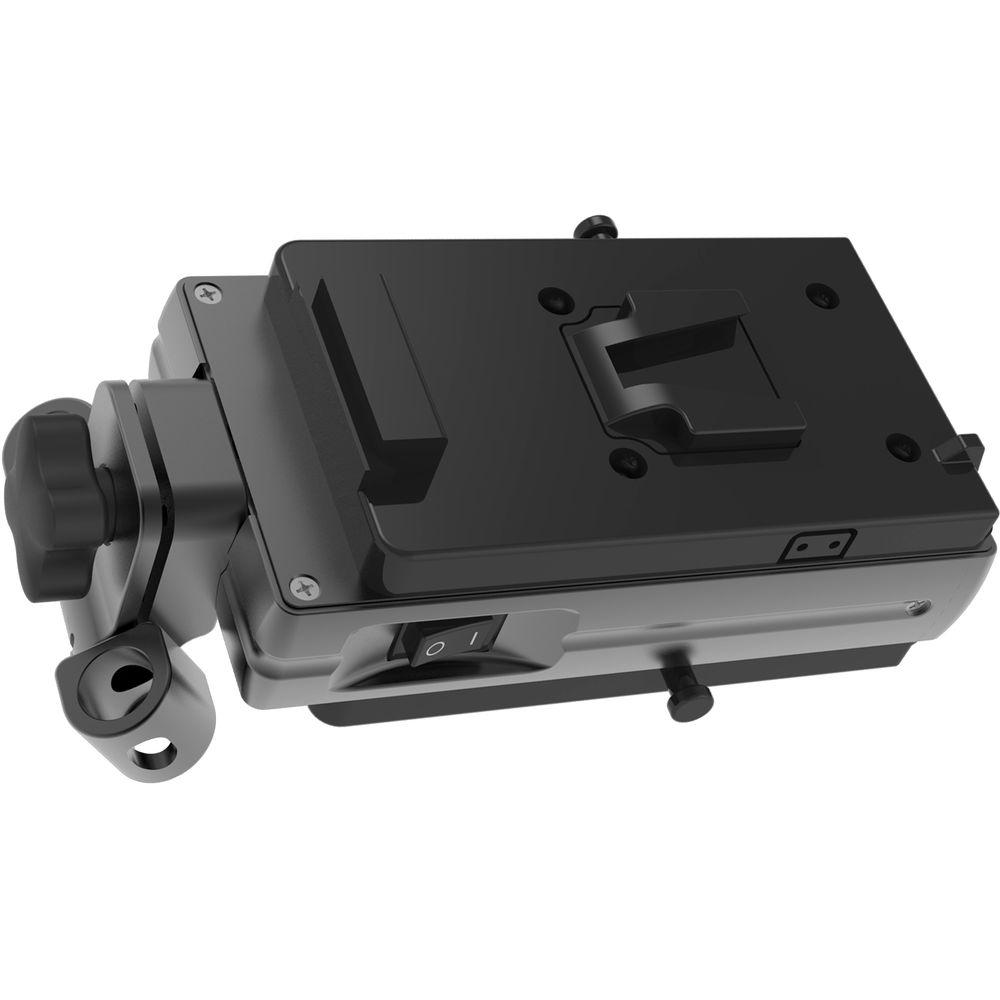

- Base and Battery Mount
-
- Low profile for maximum height adjustability
- Universal 1/4"-20 base cheese plate for accessory mounting
- Narrow, unobtrusive design
- Dual 12/24V LED power indicators with easy voltage switching
- Dual 12V D-tap outputs
-
In the Box Steadicam M1 Sled with Monitor and Hard Case (V-Mount) 8" HD Transvideo CineMonitor X-SBL with Bracket Docking Collar with Bracket Hard Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steadicam M1 Sled with Monitor and Hard Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteadicam M1 Sled Specs | Payload | Up to 48 lb / 22 kg (configuration dependent) | | Sled | Length Adjustment: 26-41" / 66-104 cm
Battery Plate: V-mount | | Monitor | 8" HD Transvideo CineMonitor X-SBL
Brightness: 1500cdm²
Connections: 5-pin LEMO, 8-pin LEMO | | | | Package Weight | 68.5 lb | | Box Dimensions (LxWxH) | 33.5 x 22.9 x 14.5" |
