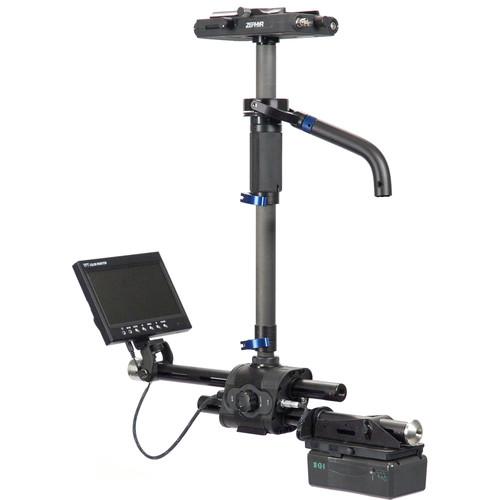

User Manual for Steadicam Zephyr Camera Stabilizer with 7" HD Monitor, Standard Vest & Gold Mount Plate Click to enlarge the picture
Contents of the user manual for the Steadicam Zephyr Camera Stabilizer with 7"
- Product category: Stabilizer Systems Steadicam
- Brand: Steadicam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steadicam Stabilizer Systems
|
User manual for the Steadicam Zephyr Camera Stabilizer with 7" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steadicam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steadicam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steadicam product will considerably shorten its lifespan!
|
Product description Optimized for most standard camera systems between 9 to 23 lb, the Steadicam Zephyr Camera Stabilizer with 7" HD Monitor provides professional-level stability and smoothness to your videos. It features the two-section iso-elastic arm with a 28" boom range, for quickly and cleanly moving the camera. In addition, the arm attaches to the standard vest, which transfers the weight from your arm to your hips for comfort during long shooting days. The sled's camera platform offers X-Y adjustment for outstanding balance, and the carbon fiber center post is height-adjustable for working in a variety of situations. The docking bracket comes with a dovetail plate, and features two HD BNC and two 3-pin LEMO connectors. The sled features a true three-axis gimbal, and comes with counterweights to properly set up your camera system. Additionally, the system comes with a 1000 cd/m2 7" HD LCD monitor, and can accept Gold Mount batteries. - Gimbal and Sled Base
-
- No tools needed to adjust the gimbal or post clamp
- Extendable rigid aluminum monitor and battery mounting rods easily removable, for compact storage or transport
- The sled's camera platform features very fine and precise X-Y adjustment
- Independently adjustable battery and monitor mounts for dynamic balance adjustability
- Steadicam Merlin-type balance weights
- Balance control via standard 1/4"-20 mounting hole at the base of the sled and additional balance weights
- Optional second battery mount for parallel 12V or 24V capability
- Telescopic, indexed, carbon fiber main post with internal safety line
- 7" HD LCD monitor
- Standard and Compact Vest
- Although both the standard and compact vest have the same body girth adjustment, the compact vest is for operators with a shorter torso.
UPC: 884613032630 In the Box Steadicam Zephyr Camera Stabilizer with 7" HD Monitor, Standard Vest & Gold Mount Plate Gold Mount Battery Plate Standard Vest HD Monitor Camera Mounting Chassis (Sled) X-Y Vernier Stage Drop-In Dovetail Camera Mount 2-Section Carbon Fiber Center Post Dual Rod Pilot-Type Base Coiled Post Cable Docking Bracket 12V Power Cable 3' Lightweight BNC Video Cable Dovetail Plate Hard Case BNC to RCA Adapter RCA to BNC Adapter 2 x Mounting Screws 2 x Locating Pins 2 x Start Weights 2 x Middle Weights No-Tools Gimbal Clamp EFP Instructional DVD Instructional DVD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steadicam Zephyr Camera Stabilizer with 7" HD Monitor, Standard Vest & Gold Mount Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteadicam Zephyr Specs | Construction | Aluminum, carbon fiber | | Payload | 9 to 23 lb / 4.0 to 10.4 kg | | Vest | Standard | | Arm | 28" / 71 cm iso-elastic boom arm | | Head Assembly/Top Stage | X-Y vernier, adjustable | | Quick Release | Yes | | Gimbal | 3-axis | | Monitor | Size: 7" / 17.8 cm HD LCD monitor
Brightness: 1000 cd/m2 | | Battery Mount | Gold Mount | | | | Package Weight | 65.0 lb | | Box Dimensions (LxWxH) | 30.0 x 22.5 x 19.5" |
