User Manual for Steinberg UR-RT2 USB Interface with Transformers by Rupert Neve Designs Click to enlarge the picture
Contents of the user manual for the Steinberg UR-RT2 USB Interface with Transformers
- Product category: Audio Interfaces & Systems Steinberg
- Brand: Steinberg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steinberg Audio Interfaces & Systems
|
User manual for the Steinberg UR-RT2 USB Interface with Transformers contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steinberg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steinberg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steinberg product will considerably shorten its lifespan!
|
Product description The Steinberg UR-RT2 is an audio interface that communicates with your computer over USB 2.0. It provides four inputs, two outputs, and conversion up to 192 kHz / 24-bit. Preamps have been designed by Yamaha, providing a transparent and detailed capture of sound. Furthermore, switchable transformers are on hand courtesy of Rupert Neve Designs, a company famous for, amongst other things, their switchable harmonic distortion, which rounds out signals and lends warmth to otherwise cold audio. These transformers are beneficial for vocals, acoustic guitars, or any instrument with significant dynamic range.

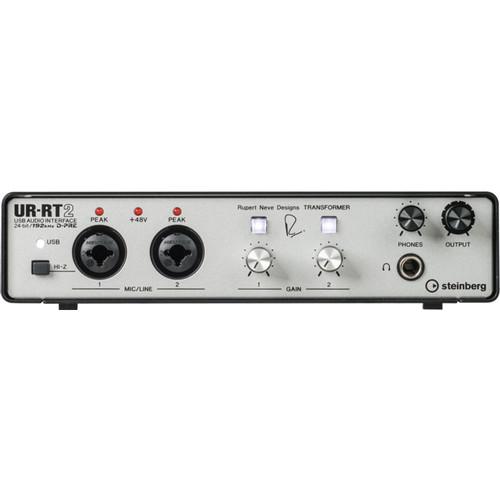

On the front panel, you'll find combination XLR-1/4" jacks that are switchable between microphone and Hi-Z configurations. Next to these inputs are the gain pots and transformer switches, between which you'll find RND's logo. A single headphone output jack, headphone level knob, and output level knob are all prominently displayed. Turn your attention to the rear of the device and you'll note the MIDI I/O, two line inputs, two main outputs, a USB port, and a +48V phantom power switch for powering condenser microphones.
An SSP2 DSP chip is on hand to help you achieve zero-latency FX monitoring across many DAWs and platforms, making this device suitable for use with laptops, tablets, and desktop computers. At 7.8 x 1.9 x 8.2", the unit is compact enough to take on the road. - 24-bit / 192 kHz via USB 2.0
- The converters used in the UR-RT2 provide a maximum sampling rate of 192 kHz and 24-bit resolution.
- Class-A D-PRE Mic Preamps
- The UR-RT2 interfaces are equipped with Yamaha's D-PRE preamps. These deliver transparent and detailed sound.
- Transformers by RND
- The Rupert Neve Designs transformer featured in the UR-RT interfaces adds a natural distortion to the signal to achieve a sound with more depth and perspective. Input channels 1-2 on the UR-RT2 each feature a transformer that Rupert Neve Designs has specifically developed for audio interfaces.
- Latency-Free Monitoring with FX
- Thanks to the built-in SSP2 DSP and the included dspMixFx software, the UR-RT2 provides zero-latency monitoring with FX on Windows, macOS and iOS, and with every DAW.
- Cross-Platform Compatibility
- The UR-RT2 audio interfaces provide cross-platform compatibility for Windows, macOS and iOS, with the included Cubase AI and Cubasis LE music software.
- Loopback Function
- The loopback function merges incoming signals with the playback signal and offers an easy way of streaming performances live to the Internet.
UPC: 889025116527 In the Box Steinberg UR-RT2 USB Interface with Transformers by Rupert Neve Designs AC adapter (PA-150B or equivalent) Set of Tools for UR-RT2 CD-ROM Cubase AI Download Information (Printed) Product License Information (Printed) USB cable Limited 1-Year Warranty User Manual PDF 10.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Steinberg UR-RT2 USB Interface with Transformers by Rupert Neve Designs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteinberg UR-RT2 Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | USB Type-B (USB 2.0) | | Analog I/O | 1 x Combo XLR / 1/4" Mic/Line Input
1 x Combo XLR / 1/4" Mic/Line/Hi-Z Input
2 x 1/4" (6.3 mm) TRS Line Input
2 x 1/4" (6.3 mm) TRS Monitor Output
1 x 1/4" (6.3 mm) TRS Headphone Output | | Digital I/O | None | | MIDI I/O | 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out | | | | Frequency Response | Line Inputs:
20 Hz to 22 kHz
