User Manual for Steinberg UR12 - USB Audio Interface Click to enlarge the picture
Contents of the user manual for the Steinberg UR12 - USB Audio Interface
- Product category: Audio Interfaces & Systems Steinberg
- Brand: Steinberg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steinberg Audio Interfaces & Systems
 |
User manual for the Steinberg UR12 - USB Audio Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steinberg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steinberg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steinberg product will considerably shorten its lifespan!
|

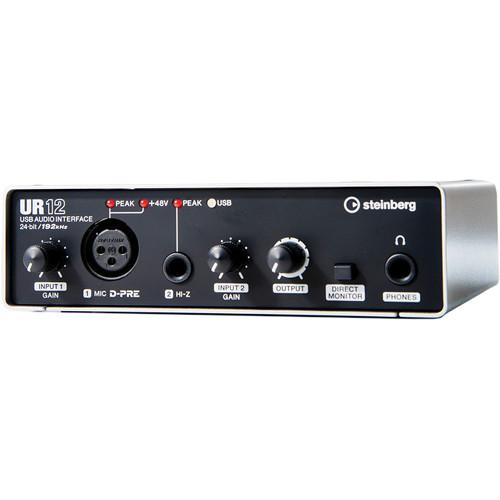

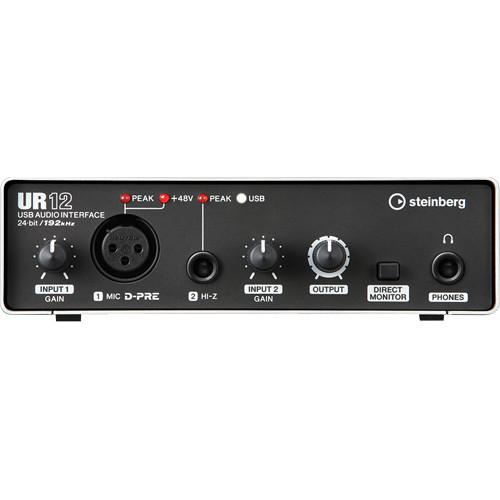

Product description The UR12 from Steinberg is a two input/two output USB audio interface featuring a single D-PRE microphone preamp with phantom power, housed in a compact and rugged chassis. The 24-bit/192 kHz capable converters provide excellent detail and dynamics, and the unit is compatible with most major audio related software. Cubase AI software for recording, composing, editing and mixing is included.
When connected to Apple's iPad (requires optional accessories), the interface provides a portable and intuitive production system. While this application requires an external power supply to function, the 5 VDC input can also be used to provide power stability in other situations. Latency-free hardware monitoring and a loopback function for Internet streaming make this compact interface an attractive choice where large channel counts are not needed. - Two input, two output USB 2.0 class compliant audio interface
- Single D-PRE microphone preamp
- Up to 192 kHz sampling rates and 24-bit resolution
- Latency-free hardware monitoring with an easy-to-use monitor source switch
- Loopback function allows for streaming performances live to the Internet, with incoming audio signals merged to the playback signal from Cubase or other DAWs inside the computer
- Connectivity with Apple's iPad using Steinberg's Cubasis music app or other iOS audio apps offers a portable production environment

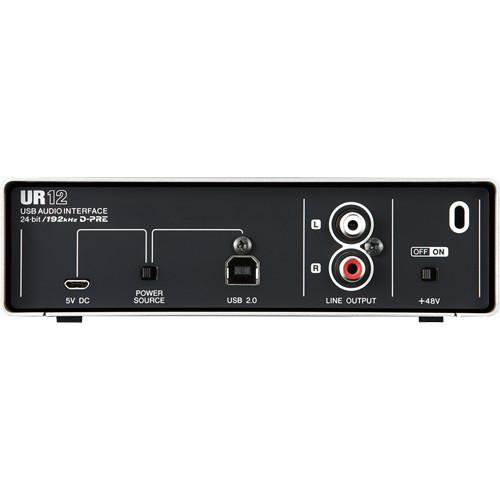

- Power port and source selector for connecting a 5 VDC power source for supplying power when the interface is connected to an iPad (requires optional Apple iPad Camera Connection Kit/Lightning to USB Camera Adapter, and an external 5 VDC adapter or an external battery pack), or for guaranteeing power stability
- Compatible with all major audio editing, mastering, and music production software supporting ASIO, Core Audio or WDM standards
- Includes Cubase AI DAW software
- Metal chassis rugged enough to withstand the rigors of the road
UPC: 086792995441 In the Box Steinberg UR12 - USB Audio Interface USB Cable One (1) Year Warranty User Manual PDF 1.2mbsuasccxwsfxartvsurcfxtezbwcdtrtrcabxcr Table of Contents
|
Upload User Manual
Have you got an user manual for the Steinberg UR12 - USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteinberg UR12 Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | USB Type-B (USB 2.0) | | Analog I/O | 1 x XLR 3-Pin Mic Input
1 x 1/4" (6.3 mm) TS Hi-Z Input
1 x 1/4" (6.3 mm) TRS Headphone Output
2 x RCA Monitor Output | | Phantom Power | +48 V | | Digital I/O | None | | MIDI I/O | None | | | | Frequency Response | 20 Hz to 22 kHz | | Dynamic Range | Inputs:
101 dBA | | | | Sample Rates | Up to 192 kHz | | Bit Depth | 24-Bit | | | | OS Compatibility | iOS 6 or Later
macOS 10.7.5
macOS 10.8
macOS 10.9
Windows 7
Windows 8
Windows 8.1 | | Processor Requirement | Mac:
Intel
PC:
Intel
AMD | | RAM Requirements | 2 GB | | Storage Requirements | 500 MB | | Minimum Display Resolution | 1280 x 800 | | Mobile Device Compatibility | iPad 2 or Later CC mode requires Apple iPad Camera Connection Kit/Lightning to USB Camera Adapter and an external 5 VDC adapter or an external battery pack to be used with the UR12 | | Required Hardware | Available USB Port
Available CD-ROM Drive, USB Port
Available CD-ROM Drive, USB Port | | Internet Connection | Required for Registration and Software/Driver Download | | | | Power Requirements | AC/DC Power Adapter (Not Included), USB Bus-Power | | AC/DC Power Adapter | 5 VDC (Not Included) | | | | Dimensions | 6.3 x 5.7 x 1.8" / 159 x 144 x 46 mm | | Weight | 1.9 lb / 850.0 g | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 9.25 x 8.2 x 4.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
