User Manual for Steinberg UR28M - USB 2.0 Digital Audio Interface Click to enlarge the picture
Contents of the user manual for the Steinberg UR28M - USB 2.0 Digital
- Product category: Audio Interfaces & Systems Steinberg
- Brand: Steinberg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steinberg Audio Interfaces & Systems
 |
User manual for the Steinberg UR28M - USB 2.0 Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steinberg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steinberg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steinberg product will considerably shorten its lifespan!
|

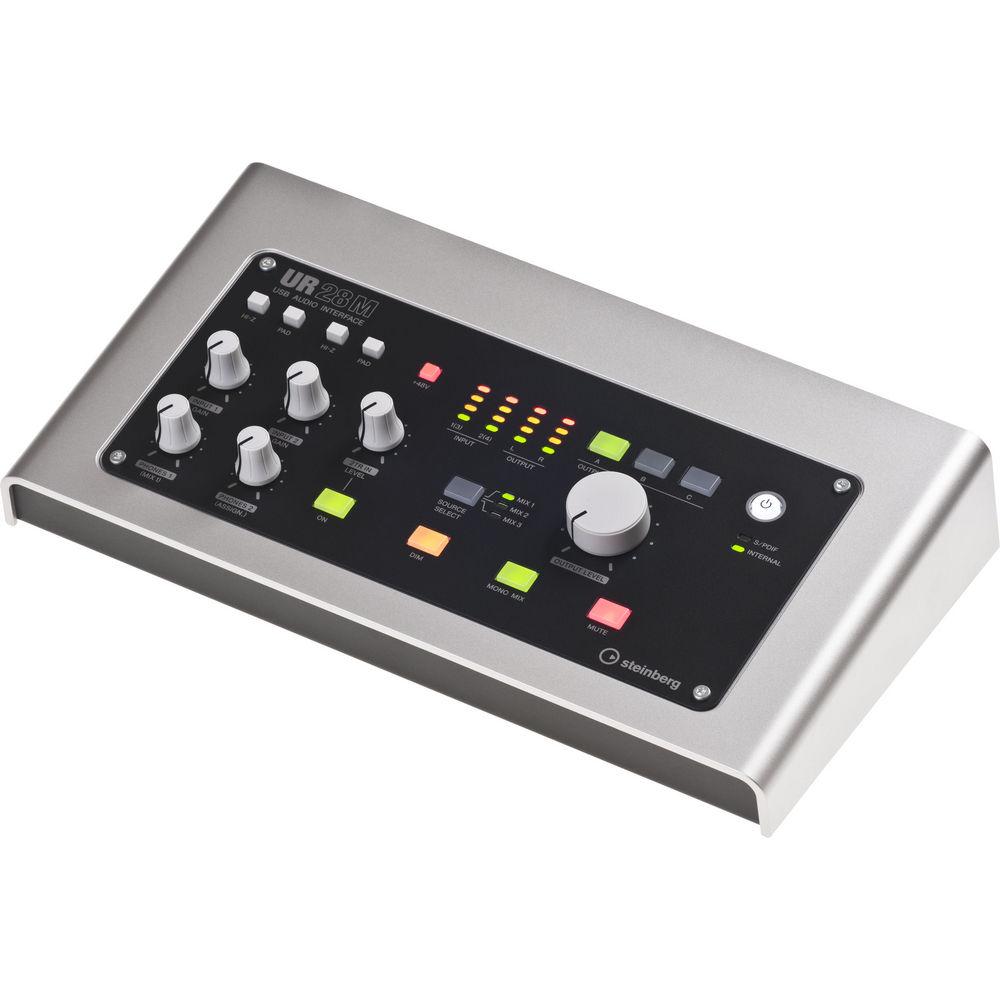

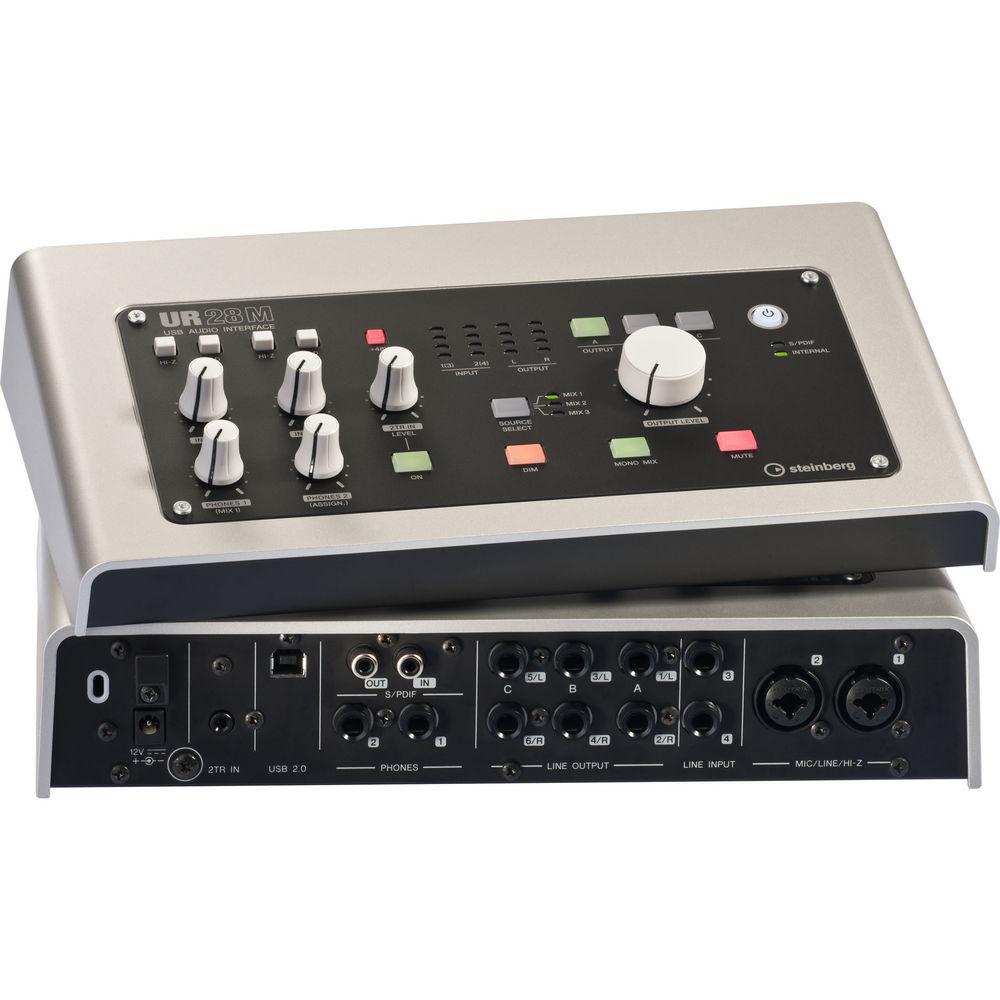

Product description The UR28M from Steinberg is a USB 2.0, DSP-powered digital audio interface featuring 4 inputs and 6 outputs, designed to deliver high-resolution audio. Two of the inputs consist of D-Pre microphone preamps with switchable phantom power. Hi-Z instrument inputs are also available, along with S/PDIF I/O on RCA coaxial connectors. A stereo mini input jack allows for connecting a portable audio player or other devices for use as a reference source.
Version 2 is a major firmware update from Steinberg that adds new functionality to the UR28M, such as iPad connectivity and new guitar amp simulator effects running on the DSP, as well as being bundled as VST 3 plug-ins. The update is free of charge and is available in the support area. Additionally, all registered users will be eligible for a free version of Cubase AI 7.

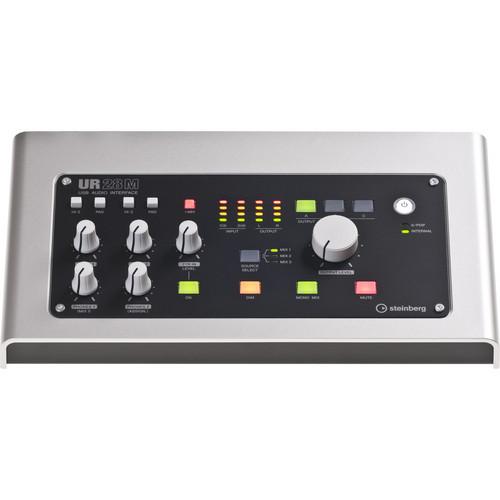

A single output volume knob can control the individual levels of one of three stereo output pairs, or the levels of six outputs simultaneously. Three separate monitoring mixes can be set up in the dspMixFx mixer or the included Cubase software, which are then routed to the selected outputs. Several smaller rotary knobs control signal levels of inputs 1 and 2 and the two headphone outputs.
Other controls include a Dim button for attenuating all line output signals by 20dB, along with a Mono and a Mute button for muting the selected output signal. Four-segment LED metering for the inputs and the output are also present. A USB port connects the unit to either a Mac or PC based computer, and with the included Cubase AI workstation software, recording and mixing productions can be easily achieved. Other compatible audio software can also be used. - Version 2 Firmware Update
-
- Guitar Amp Classics effect bundle running on DSP, allowing latency-free monitoring with guitar amp effect
- Basic FX Suite VST 3 plug-in bundle, consisting of three software components - Sweet Spot Morphing Channel Strip, REV-X and Guitar Amp Classics
- CC mode for connectivity with the iPad (2 or later) through Apple's iPad Camera Connection Kit
- Loopback function for internet live streaming - incoming audio signals are merged to playback signal from audio playback software
- Free version of Cubase AI 7 with a set of new features available to all registered UR users
- 24-bit/96kHz USB 2.0 audio interface
- Analog 4 inputs and 6 outputs, plus stereo input for reference source
- D-Pre Class-A discrete microphone preamps supporting 48V phantom power
- Latency-free DSP-powered monitoring with one REV-X reverb and four Channel Strips with any DAW by using the latest dspMixFx technology
- Digitally controlled monitor level control with DIM, Mono, and Mute fed by a 3 x 3 monitoring matrix
- Two separate headphone buses with individual outputs
- Cubase AI music production software included
- Cross-platform compatibility for Mac OS X and Windows
UPC: 086792958781 In the Box Steinberg UR28M - USB 2.0 Digital Audio Interface External Power Supply USB Cable Software CD-ROM Software DVD-ROM One (1) Year Warranty User Manual PDF 5.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Steinberg UR28M - USB 2.0 Digital Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteinberg UR28M Specs | Type | USB 2.0 | | Sample Rates | 44.1, 48, 88.2 and 96kHz | | Inputs | 2 x XLR/TRS combo Microphone/Line
2 x 1/4" TS phone Instrument
12 x 1/4" TRS phone Line
1 x RCA coaxial S/PDIF
1 x 1/8" stereo mini 2TR | | Input Impedance | Mic/Line: 4kΩ
Instrument: 500kΩ | | Maximum Input Level | Microphone: +22dBu
Instrument: +9.8dBV | | Gain Range | Maximum: 60dB
Adjustable: 44dB | | Outputs | 6 x 1/4" TRS phone
2 x 1/4" TRS phone Headphone | | Output Impedance | 75Ω | | Maximum Output Level | Line: +16dBu
Headphones: 35mW + 35mW, @ 40Ω | | Dynamic Range | Microphone/Line: 101dB, A-weighted
Line Output: 106dB, A-weighted | | THD + N | Microphone/Line: 0.002%, 1kHz, -1dBFS, 22Hz to 22kHz BPF
Line Output: 0.001%, 1kHz, -1dBFS, 22Hz to 22kHz BPF | | Frequency Response | 20Hz to 22kHz, +0.1/-0.2dB | | Crosstalk | Microphone/Line: >114dB, 1kHz
Line Output: >129dB, 1kHz | | Power Requirements | 8.4W via supplied external power supply (110V, 50Hz) | | System Requirements | Mac
Intel dual core CPU
Firmware Version 1.0 - 1.1: OS X 10.5.8, 10.6, 10.7, 10.8
Firmware Version 2.0: OS X 10.7 / 10.8
2 GB RAM
USB 2.0/3.0 port
DVD-ROM dual-layer drive
Internet connection for license activation of included plug-in software
Compatible with any software application supporting Core Audio
PC
Intel or AMD dual core CPU
Firmware Version 1.0 - 1.1: Windows XP, Vista, Windows 7, Windows 8
Firmware Version 2.0: Windows 7 SP1, Windows 8
2 GB RAM
USB 2.0/3.0 port
DVD-ROM dual-layer drive
Internet connection for license activation of included plug-in software
Compatible with any software application supporting ASIO or WDM
Cubase AI 6
Mac
Intel dual core CPU
OS X 10.6 native 32-bit and 64-bit versions
2GB RAM
4GB free hard drive space
DVD-ROM drive
Internet connection for license activations
1280 x 800 display resolution recommended
Core Audio compatible audio hardware
PC
Intel or AMD dual core CPU
Windows 7 native 32-bit and 64-bit versions
2GB RAM
4GB free hard drive space
DVD-ROM drive
Internet connection for license activations
1280 x 800 display resolution recommended
Windows compatible audio hardware (ASIO, WDM) | | Dimensions (WxDxH) | 11.5 x 6.5 x 2.3" (291 x 164 x 59mm) | | Weight | 3.1 lb (1.4kg) | | Specialties | -26dB pad | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 16.25 x 8.0 x 5.0" |
