Product description The UR824 from Steinberg is a USB 2.0, DSP-powered digital audio interface featuring up to 24 inputs and 24 outputs, and designed to deliver high-resolution audio. Eight of the analog input channels feature D-Pre microphone preamps with switchable phantom power. Hi-Z instrument inputs are also available, along with ADAT I/O on TOSLink connectors.
Version 2 is a major firmware update from Steinberg that adds new functionality to the UR824, such as iPad connectivity and new guitar amp simulator effects running on the DSP, as well as being bundled as VST 3 plug-ins. The update is free of charge and is available in the support area. Additionally, all registered users will be eligible for a free version of Cubase AI 7.

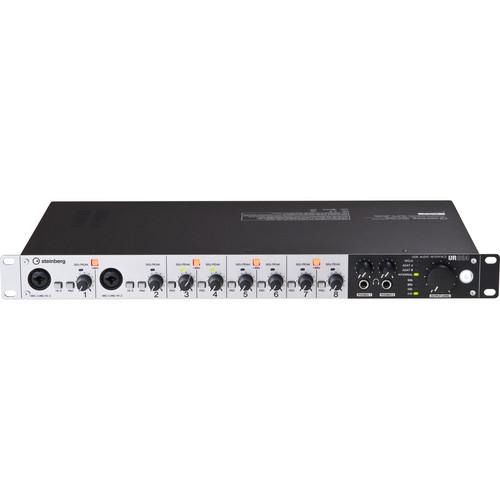

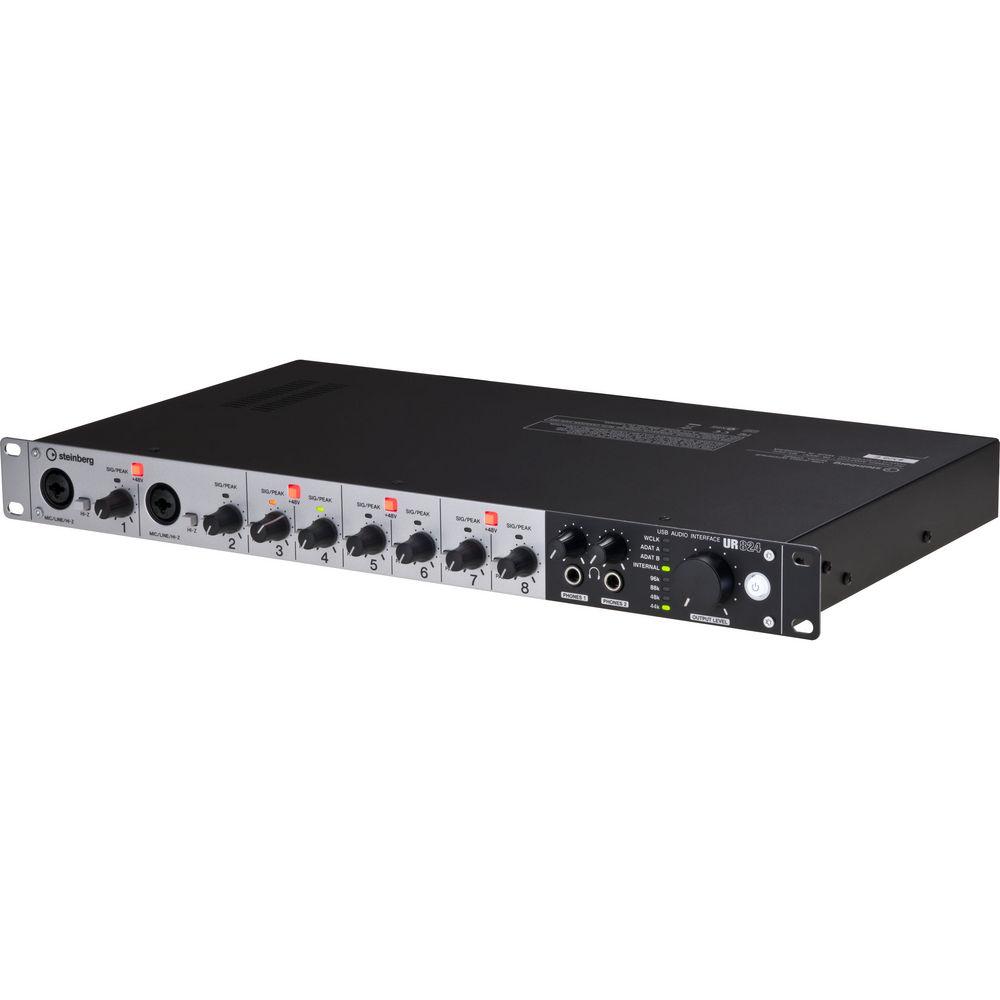

The unit's front panel hosts two of the eight Neutrik combo connectors for balanced microphone/line input, pad push buttons for signal attenuation, along with gain controls with peak indicators. A single rotary knob allows for global adjustment of the eight line output signals, while two headphone connectors each feature a dedicated level control.

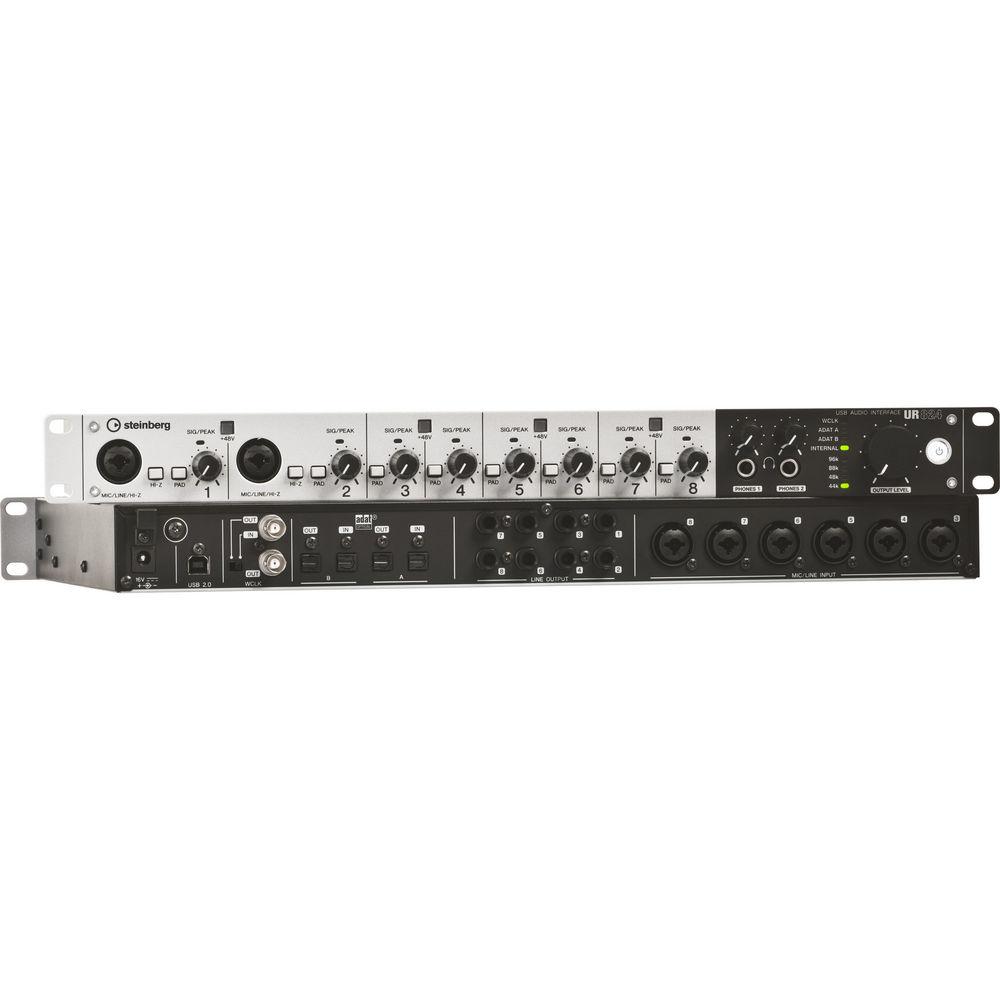

The expansive analog and digital I/O capabilities allow for hooking up a comprehensive selection of outboard equipment and instruments, and the signals can also be fed to a computer via the high-speed USB 2.0 link for mixing and recording at a maximum resolution of 24-bits/96kHz. Two BNC connectors are available for Wordclock input and output. For signal synchronization, the interface features JetPLL, a jitter controlling solution for audio networks. - Version 2 Firmware Update
-
- Guitar Amp Classics effect bundle running on DSP, allowing latency-free monitoring with guitar amp effect
- Basic FX Suite VST 3 plug-in bundle, consisting of three software components - Sweet Spot Morphing Channel Strip, REV-X and Guitar Amp Classics
- CC mode for connectivity with the iPad (2 or later) through Apple's iPad Camera Connection Kit
- Loopback function for internet live streaming - incoming audio signals are merged to playback signal from audio playback software
- Free version of Cubase AI 7 with a set of new features available to all registered UR users
- 24-bit/96kHz USB 2.0 audio interface
- Analog 8 inputs and 8 outputs with 8 D-Pre Class-A microphone preamps supporting 48V phantom power
- Two pairs of ADAT optical I/O (double as S/PDIF) provide 16 inputs and 16 outputs (S/MUX compatible 8 I/O at 96kHz)
- Latency-free DSP-powered monitoring with one REV-X reverb and eight Channel Strips with any DAW by using the latest dspMixFx technology
- Two separate headphone buses with individual outputs
- Wordclock I/O on BNC connectors with JetPLL ultra-low jitter support
- Cubase AI music production software included
- Cross-platform compatibility for Mac OS X and Windows
UPC: 086792958798 In the Box Steinberg UR824 - USB 2.0 Digital Audio Interface External Power Supply USB Cable Software CD-ROM Software DVD-ROM One (1) Year Warranty User Manual PDF 2.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Steinberg UR824 - USB 2.0 Digital Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteinberg UR824 Specs | Type | USB 2.0 | | Sample Rates | 44.1, 48, 88.2 and 96kHz | | Inputs | 8 x XLR/TRS combo Microphone/Line
2 x TOSLink optical ADAT
1 x BNC Wordclock | | Input Impedance | Mic/Line: 4kΩ
Instrument: 1MΩ | | Maximum Input Level | Microphone: +24dBu
Instrument: +10dBV | | Gain Range | Maximum: 60dB
Adjustable: 44dB | | Outputs | 8 x 1/4" TRS phone
2 x 1/4" TRS phone Headphone
2 x TOSLink optical ADAT
1 x BNC Wordclock | | Output Impedance | 75Ω | | Maximum Output Level | Line: +18dBu
Headphones: 75mW + 75mW, @ 40Ω | | Dynamic Range | Microphone/Line: 105dB, A-weighted
Line Output: 117dB, A-weighted | | THD + N | Microphone/Line: 0.0014%, 1kHz, -1dBFS, 22Hz to 22kHz BPF
Line Output: 0.0009%, 1kHz, -1dBFS, 22Hz to 22kHz BPF | | Frequency Response | 20Hz to 22kHz, +/-0.1dB | | Crosstalk | Microphone/Line: >125dB, 1kHz
Line Output: >130dB, 1kHz | | Operating Temperature | 32° to 104°F (0° to 40°C) | | Power Requirements | 38.4W via supplied external power supply (110V, 50Hz) | | System Requirements | Mac
Intel dual core CPU
Firmware Version 1.0 - 1.1: OS X 10.5.8, 10.6, 10.7, 10.8
Firmware Version 2.0: OS X 10.7 / 10.8
2 GB RAM
USB 2.0/3.0 port
DVD-ROM dual-layer drive
Internet connection for license activation of included plug-in software
Compatible with any software application supporting Core Audio
PC
Intel or AMD dual core CPU
Firmware Version 1.0 - 1.1: Windows XP, Vista, Windows 7, Windows 8
Firmware Version 2.0: Windows 7 SP1, Windows 8
2 GB RAM
USB 2.0/3.0 port
DVD-ROM dual-layer drive
Internet connection for license activation of included plug-in software
Compatible with any software application supporting ASIO or WDM | | Dimensions (WxDxH) | 19 x 10.8 x 1.7" (483 x 275 x 44mm) | | Weight | 6.8 lb (3.1kg) | | Specialties | -26dB pad | | | | Package Weight | 10.75 lb | | Box Dimensions (LxWxH) | 22.0 x 15.1 x 5.6" |
