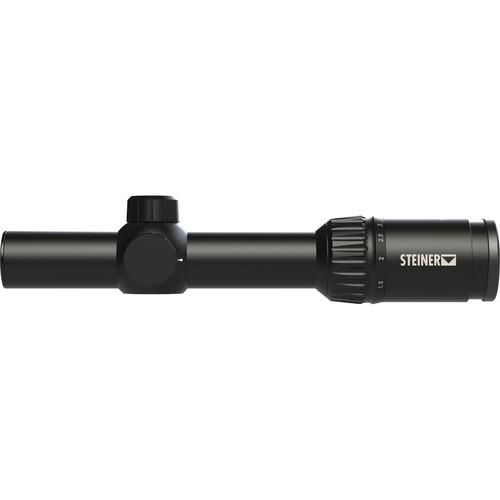

User Manual for Steiner 1-4x24 P4Xi Riflescope with Throw Lever Click to enlarge the picture
Contents of the user manual for the Steiner 1-4x24 P4Xi Riflescope with Throw
- Product category: Riflescopes Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Riflescopes
|
User manual for the Steiner 1-4x24 P4Xi Riflescope with Throw contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description Steiner optimized the 1-4x24 P4Xi Riflescope for patrol rifles and AR platforms and designed the optical system with true 1x imaging (for aiming with both eyes open), high-contrast optics, and an illuminated P3TR reticle, each of which will add the needed stealth and precision to your CQC operations. While the high-contrast optics will provide you with vivid images during the day, at night they are designed to improve target recognition and visibility. To help you with making that laser-sharp shot, in the second plane lies the P3TR illuminated reticle. The reticle has sublime fine features with its four needle-shaped posts converging on an ultra-fine brilliant red-illuminated target dot. The dot is surrounded by target brackets on the top and the sides and cascading ballistic compensation markings on the bottom. Its 11-level brightness control offers optimized settings for almost any situation: 5 for daylight, 4 for low light, and 2 for use with night vision devices. It is also parallax-free at 100 yards. To assist you in compensating for wind and ballistics, the scope has a 100 MOA windage and elevation adjustment ranges with 1/2 MOA intervals.
The housing is nitrogen-filled, waterproof and submersible, fogproof, and shock-resistant. It is crafted from a single piece of aluminum and features a 30mm maintube. In addition, the riflescope offers an eyepiece with printed numeric zoom factors. For fast and sure zoom adjustments, this scope also includes a throw lever that attaches directly to the eyepiece. Optical Performance -
- True 1x imaging for aiming with both eyes open
- High-contrast optics deliver vivid and bright images even in low light
- 1-4x zoom magnification
- 24mm objective diameter
- 110-27' at 100 yd linear field of view range
P3TR Illuminated Reticle -
- 2nd focal plane
- Four needle-shaped posts
- Ultra-fine illuminated brilliant red target dot
- 5 illumination settings for daylight operation
- 4 illumination settings for low-light operation
- 2 illuminations settings for night vision devices
- An off position between the settings
Use and Handling -
- 1/2 MOA per click impact point correction
- 100 MOA windage and elevation adjustment
- Eye relief: 88.9 - 101.6mm
Construction Details -
- Single-piece 30mm maintube
- Anodized aluminum housing
- Fogproof, nitrogen-filled
- Waterproof, submersible to 33'
- Capped low-profile turrets
- Includes a throw lever for fast and sure one-finger zooming
- Shock-resistant
UPC: 000381852021 In the Box Steiner 1-4x24 P4Xi Riflescope with Throw Lever (P3TR Illuminated Reticle, Matte Black) - Throw Lever
- CR-2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 1-4x24 P4Xi Riflescope with Throw Lever in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner P4Xi Specs | | | Magnification | 1 to 4x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 110' @ 100 yd / 36.7 m @ 100 m
4x: 27.5' @ 100 yd / 9 m @ 100 m | | Exit Pupil Diameter | 1x: 12 mm
4x: 6 mm | | Eye Relief | 3.5 to 4" / 88.9 to 101.6 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | P3TR Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 100 MOA | | Elevation Adjustment | 100 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof to 33' / 10 m | | Fogproof | Yes | | Operating Temperature | -13 to 145°F / -25 to 63°C | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.3" / 260 mm | | Weight | 17.3 oz / 490.5 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 14.1 x 4.5 x 3.7" |
