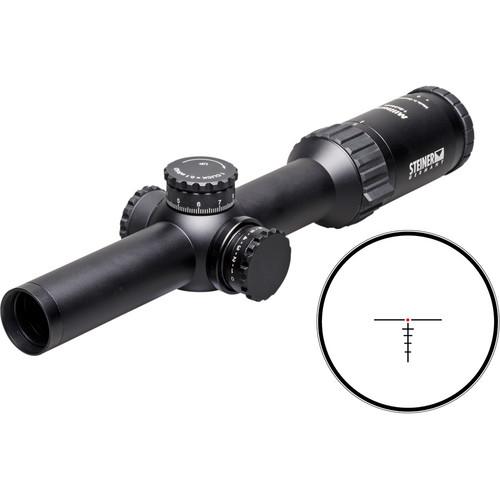

User Manual for Steiner 1-5x24 Military Riflescope Click to enlarge the picture
Contents of the user manual for the Steiner 1-5x24 Military Riflescope
- Product category: Riflescopes Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Riflescopes
|
User manual for the Steiner 1-5x24 Military Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description - Steiner M5Xi 1-5x24 Military Scope Review
- John Chapman and Steiner at LMS
- Steiner M5Xi Military 1-5x24 Scope | 360 Degree View
This 1-5x24 Military Riflescope from Steiner features broadband transmission optics, a weather-sealed housing and illuminated Rapid Dot ballistic reticle calibrated for NATO 5.56 (.223) caliber rounds. Steiner's anti-reflective broadband multicoating allows the lens system to transmit crisp images that are rich with contrast and brightness. A constant 3.5" eye relief and fast focus eyepiece provide a consistent viewing experience and ability to dial-in the etched glass reticle to suit the shooter's vision.A one-piece machined aluminum housing with sealed turrets and nitrogen-filling equip Steiner's Military series riflescopes for weather-resistant performance in extreme temperatures, rain, and humidity. Uncapped target-style turrets with 0.1 mrad impact point corrections enable precise shot placement. An 11-level reticle brightness adjustment system with intermediate standby settings gives the shooter several illumination options for daylight and low-light conditions. The 1-5x zoom range and full complement of handling features make this Military series scope well-suited for close-range targeting with NATO 5.56 (.223) rounds. - Optical Performance
-
- Magnification: 1-5x
- Objective lens: 24mm
- Main tube diameter: 30mm
- Broadband anti-reflective lens coating
- 3.5" constant eye relief
- Illuminated Rapid Dot Reticle
-
- Bullet drop compensation holdovers for NATO 5.56 (.223) caliber
- Second focal plane reticle location
- Illuminated red aiming point
- 11 reticle brightness settings (7 night & 4 day)
- Standby (Off) setting between each brightness level
- Use and Handling
-
- 0.1 mrad impact point adjustments
- Return-to-zero uncapped turrets
- Dedicated reticle brightness turret
- Fast focus eyepiece
- Construction Details
-
- Nitrogen-filled for fogproof and waterproof performance
- Weather-sealed windage and elevation turrets
- One-piece machined aerospace aluminum tube
- Operating temperature: -31 to 158°F
- Waterproof depth: 33 ft
- Weight: 21.2 oz
UPC: 000381855718 In the Box Steiner 1-5x24 Military Riflescope (Illuminated Rapid Dot 5.56) CR2450 Battery Lens Caps Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 1-5x24 Military Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner M5Xi Specs | | | Magnification | 1 to 5x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 118' @ 100 yd / 36 m @ 100 m
5x: 24' @ 100 yd / 7.2 m @ 100 m | | Exit Pupil Diameter | 1x: 11.5 mm
5x: 7.2 mm | | Eye Relief | 3.5" / 89 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | 5.56 Caliber Rapid Dot Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment | 4.6 MIL | | Elevation Adjustment | 9.0 MIL | | | | Operating Temperature | -31 to 158°F / -35 to 70°C | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2450 | | Dimensions | Length: 11.6" / 29 cm | | Weight | 21 oz / 601 g | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 19.3 x 4.6 x 4.1" |
