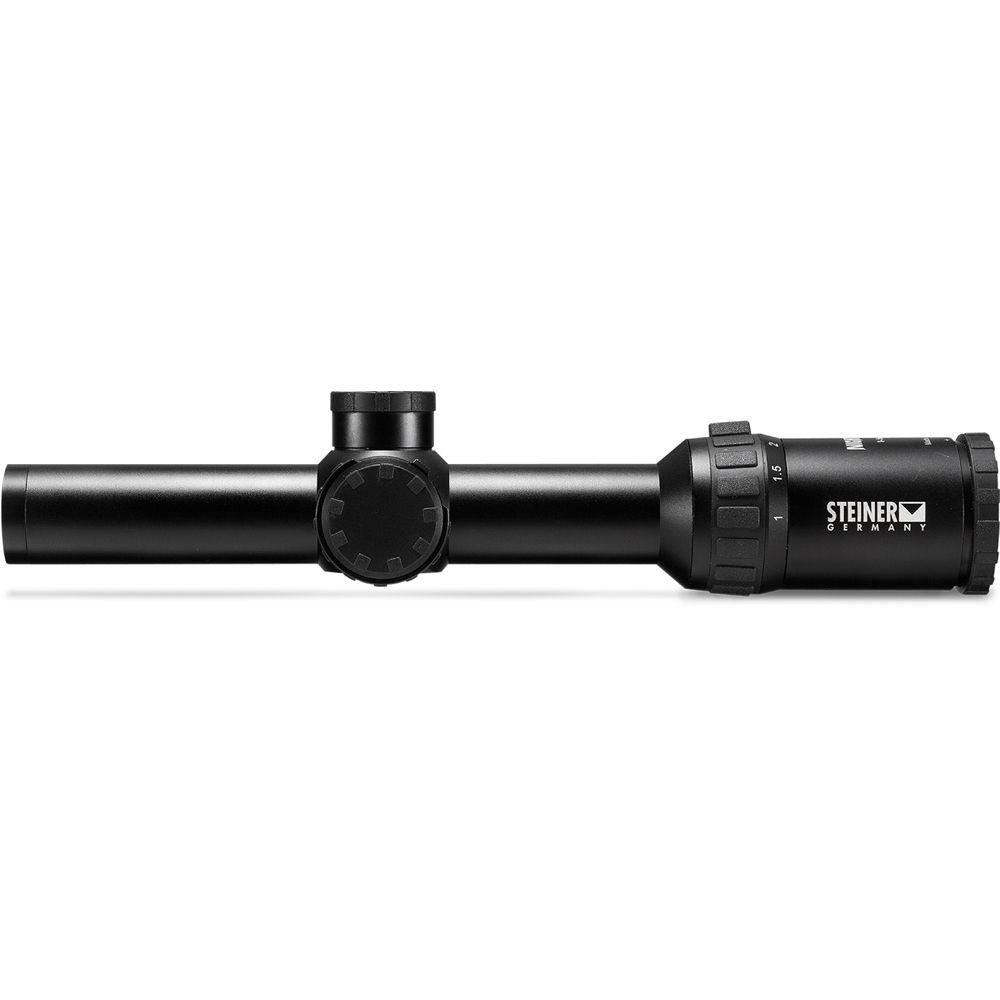

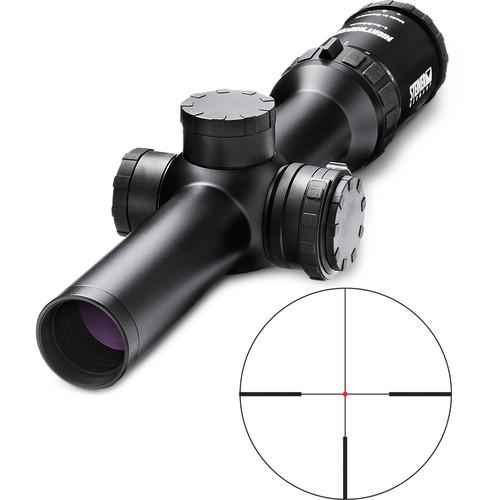

User Manual for Steiner 1-5x24 Nighthunter Extreme Riflescope Click to enlarge the picture
Contents of the user manual for the Steiner 1-5x24 Nighthunter Extreme Riflescope
- Product category: Riflescopes Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Riflescopes
 |
User manual for the Steiner 1-5x24 Nighthunter Extreme Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description - We Are Steiner
- Steiner Defining Moments
If you like hunting in low light conditions, consider the 1-5x24 Nighthunter Extreme Riflescope from Steiner. It is optimized to over-perform in twilight at medium ranges. The state-of-art optics feature superior-quality optical glass, multiple anti-reflection coatings, and an additional Diamond Night Lens Coating that improves image brightness, resolution, contrast, and clarity in low light conditions, even with a relatively small 24mm aperture. You don't have to worry about moisture, dust, grease or dirt abstracting your view because its Hydrophobic coating on the objective lens will protect it. The aiming is parallax-free at 328'.

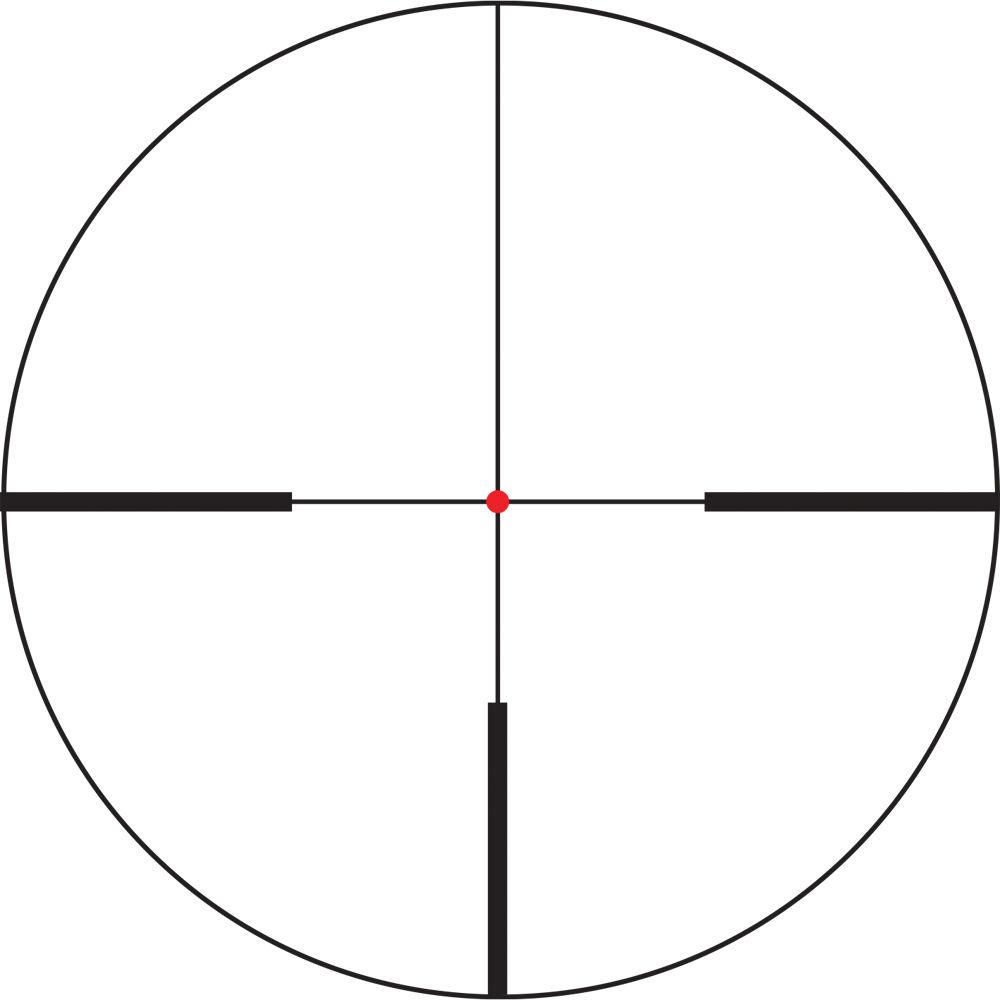

Located in the second focal plane is the illuminated 4A-1 German #4 Reticle. It features three medium posts, a thin crosshair, and a brightly illuminated fine center dot. It has a wide gate and provides a clear of your targets. The Steiner Smart Illumination features a memory recall of last setting and an auto off function.
The aluminum housing is durable, lightweight, and boasts a single-piece main tube. It is nitrogen-filled to provide a fogproof and waterproof performance. You don't even have to worry about accidentally getting it wet or dropping into water because it is submersible to 6". Complimenting a rugged design, the eyepiece allows for a fast focusing action. Also included are one CR-2032 battery and a neoprene cover. - Optical Performance
-
- 24mm objective
- 1-5x magnification
- Multicoated optics
- Diamond Nigh Lens Coating delivers clarity and contrast at dawn and dusk
- Hydrophobic coating repels water, dirt, dust, and grease
- 3.5" constant eye relief
- Parallax fixed at 328'
- Field of view: 108-21.5' at 100 yd
- Reticle
-
- Second focal plane
- German #4 Reticle
- Illuminated red fine center point
- Standby setting between each brightness level
- Dedicated illumination knob: variable, tilt sensor, auto Off
- Steiner Smart Illumination: offers memory recall of the last setting and auto-shutoff
- Use and Handling
-
- 1cm impact point correction
- 32 mil windage and elevation range
- Construction Details
-
- 30mm main tube
- One-piece machined main tube with rubber armoring
- Weather-sealed resettable to zero windage and elevation turrets
- Fast focus eyepiece
- Nitrogen-filled fogproof
- Waterproof to 6'
UPC: 000381861245 In the Box Steiner 1-5x24 Nighthunter Extreme Riflescope (4A-1 German #4 Illuminated Reticle) - CR-2023 Battery
- Neoprene Cover
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 1-5x24 Nighthunter Extreme Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 6124 Specs | | | Magnification | 1 to 5x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 108' @ 100 yd / 32.9 m @ 100 m
5x: 21.5' @ 100 yd / 6.5 m @ 100 m | | Exit Pupil Diameter | 1x: 24 mm
5x: 4.8 mm | | Eye Relief | 3.5" / 90 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | German #4 Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment | 32 MIL | | Elevation Adjustment | 32 MIL | | | | Operating Temperature | -13 to 145°F / -35 to 70°C | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2023 | | Dimensions | Length: 11.5" / 292 mm | | Weight | 20.4 oz / 578.3 g | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 18.3 x 4.6 x 4.0" |
