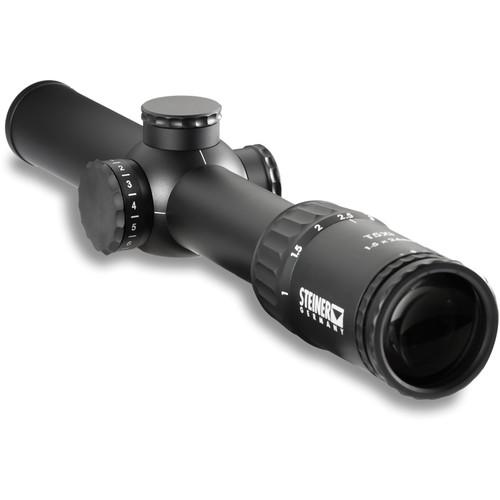

Product description The 1-5x24 T5Xi Riflescope from Steiner features fully multicoated optics, a waterproof housing, and an illuminated 3TR reticle calibrated for 7.62 caliber. The optical system features a 24mm objective for a low form factor, and a 1-5x zoom to allow you a short-to-medium range target acquisitions. To provide clear visibility of the reticle in various lighting conditions, there are 11 illumination brightness levels. To help you compensate for wind and ballistic motion, the scope has a 30 mil windage and a 30 mil elevation adjustment ranges with a 0.1 mil per click impact point correction. The low profiles turrets are resettable and have hard stops at zero positions to prevent going over the range. The adjustment knobs and dials are wide and provide a comfortable non-slip grip. To allow an easy and accurate elevation reading, the elevation dial has a second rotation indicator.
In addition, the riflescope features a tapered eyepiece ring with a zoom factor scale. The tapered ring design enables an easy verification of your magnification setting while you are aiming, without taking your attention from your target. If you need an instant zoom adjustment, use the included eyepiece throw lever for one finger operation. To make sure that your personal diopter setting cannot be accidentally changed, the diopter adjustment has a locking mechanism.
To increase durability and strength of the riflescope, the main tube is made from a single-piece of aluminum. The housing is shock resistant, fogproof and waterproof submersible to 33'. Also included with the riflescope is a CR2450 battery. Optical Performance -
- Fully multicoated optics
- Zoom of 1-5x allows for a short-to-medium range target acquisition
- Objective lens diameter of 24mm has a low form factor
- Angular field of view range is 20.5 - 4°
- Eye relief: 100-90 mm
3TR 7.62 Reticle -
- For 7.62 rounds
- Located in the 2nd focal plane
- 0.4 mRad illuminated red center dot
- 11 illumination brightness levels
- For situation awareness at 1x magnification
- Can be used for distant target acquisition at 5x
Use and Handling -
- 0.1 mil or 0.34 MOA per click impact point correction
- 30 mil or 101.4 MOA windage and elevation adjustment
- Tapered zoom ring makes verification of zoom factor easy
- Wide, low profile dial knobs provide an easy-grip
- Resettable windage and elevation turrets
- Lockable diopter adjustment prevents accidental change
- Throw lever for a quick and easy control of zoom is included
Construction Details -
- Single-piece 30mm main tube increases strength and durability
- Anodized aluminum housing has a matte black finish
- Compatible with optional Tenebraex lens covers
- Fogproof, shockproof, waterproof submersible to 33'
UPC: 000381851024 In the Box Steiner 1-5x24 T5Xi Riflescope (3TR 7.62 Reticle) - CR2450 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 1-5x24 T5Xi Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner T5Xi Specs | | | Magnification | 1 to 5x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 108' @ 100 yd / 36 m @ 100 m
5x: 21' @ 100 yd / 7 m @ 100 m | | Exit Pupil Diameter | 1x: 11 mm
5x: 4.8 mm | | Eye Relief | 3.5 to 4" / 88.9 to 101.6 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | 3TR for 7.62 Caliber Reticle (Second Focal Plane) | | | | Impact Point Correction | 0.1 MIL per Click | | Windage Adjustment | 30 MIL | | Elevation Adjustment | 101.4 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof to 33' / 10 m | | Fogproof | Yes | | Operating Temperature | -13 to 149°F / -25 to 65°C | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2450 | | Dimensions | Length: 11.3" / 287 mm | | Weight | 19.4 oz / 550 g | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 14.7 x 4.5 x 3.4" |
