Product description - We Are Steiner
- Steiner Defining Moments
- Steiner Nighthunter Xtreme Scope 1.6-8x42 | 360 Degree View

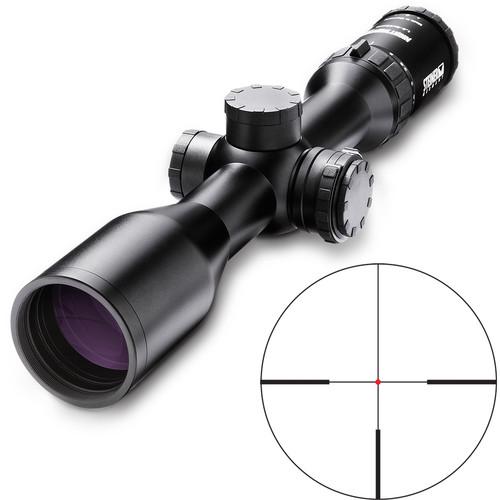

If you like hunting in low light, consider the 1.6-8x42 Nighthunter Xtreme Riflescope from Steiner. It is optimized to over-perform in twilight and at medium-to-long ranges. The state-of-art optics feature superior-quality optical glass, multiple anti-reflection coatings, and an additional Diamond Night Lens Coating that improves image brightness, resolution, contrast, and clarity in low light. The 42mm objective lens is wide enough to deliver bright images in most lighting situations. You also do not have to worry about moisture, dust, grease, or dirt abstracting your view because a special hydrophobic coating on the lens will protect it.

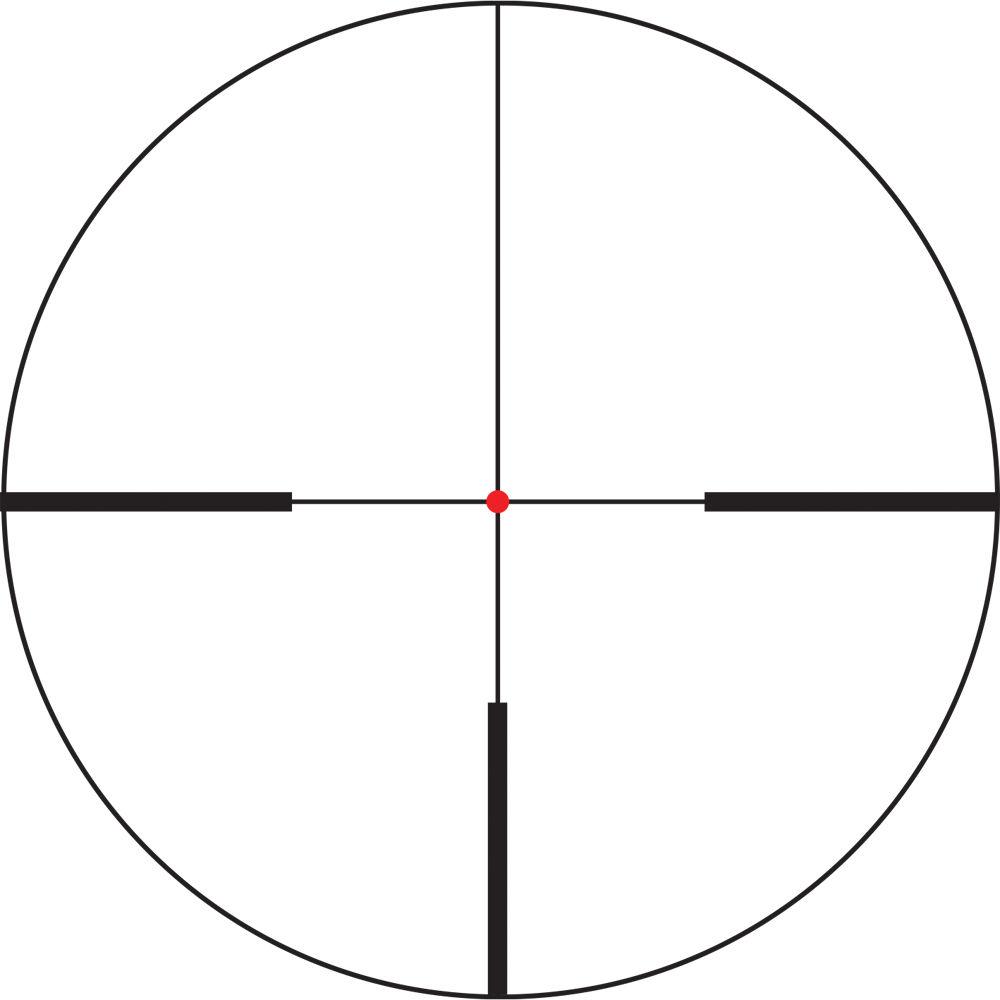

The illuminated 4A-1 German #4 Reticle is another highlight of this riflescope. It is located in the second focal plane and features three medium posts, a thin crosshair, and a brightly illuminated fine center dot. With its wide gate, it will provide a clear view of your targets. Additionally, the Steiner Smart Illumination has an auto-off function and a feature that stores and re-activates the most recent illumination setting.

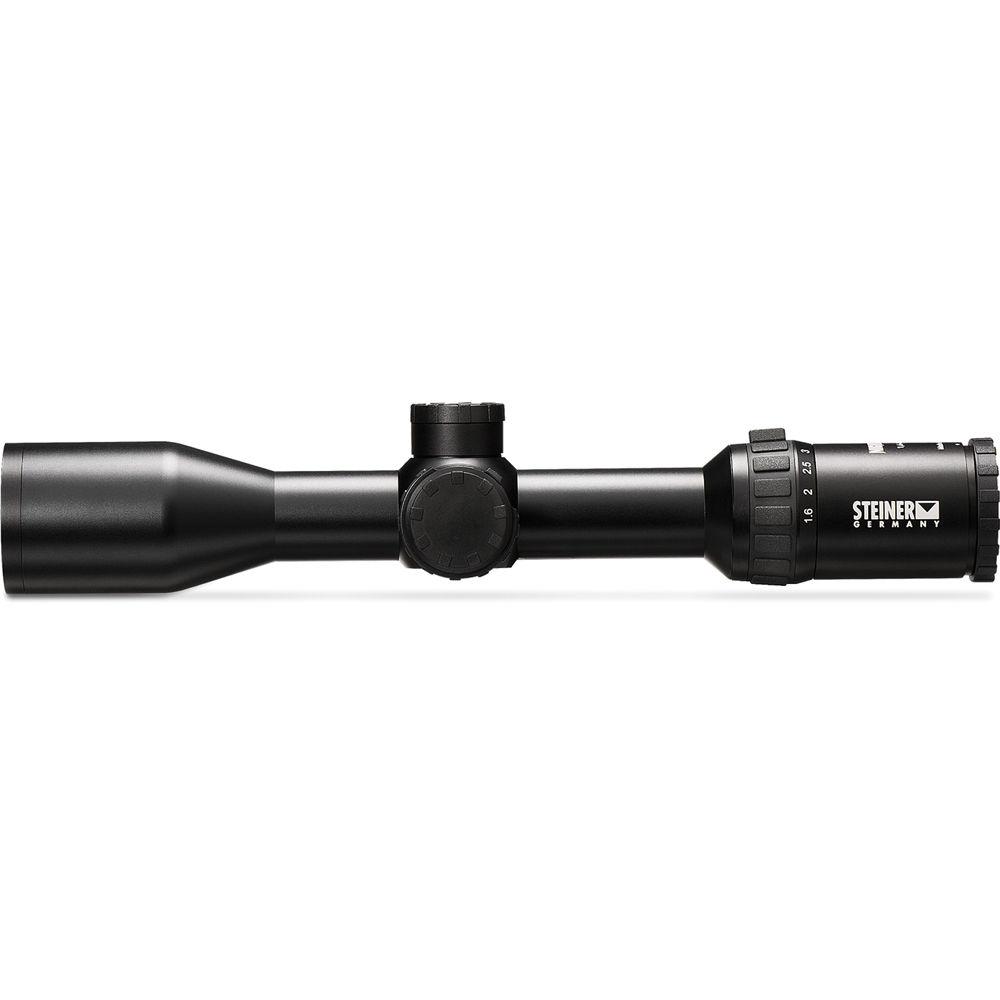

The aluminum housing is durable and lightweight and boasts a rugged single-piece main tube. While outside the body is protected with rubber armoring, the inside it is filled with nitrogen to provide a fogproof and waterproof performance. Do not worry about accidentally getting it wet or dropping into water because this riflescope is submersible to 6'. To add more convenience, the eyepiece allows for a fast focusing action and has a low profile lever for one-finger operation. Also included are one CR-2032 battery and a neoprene cover. - Optical Performance
-
- 1.6-8x magnification
- 42mm objective
- Multicoated optics
- Diamond Night Lens Coating delivers clarity and contrast at dawn and dusk
- Hydrophobic coating repels water, dirt, dust, and grease
- 4A-1 German #4 Reticle
-
- Second focal plane
- Illuminated red fine center dot
- Standby setting between each brightness level
- Steiner Smart Illumination: Offers memory of the last setting and auto-shutoff
- Use and Handling
-
- 0.1 mil impact point correction
- 15 mil elevation range
- 8 mil windage range
- Construction Details
-
- 30mm main tube diameter
- One-piece machined main tube with rubber armoring
- Weather-sealed resettable to zero windage and elevation turrets
- Fast focus eyepiece
- Nitrogen-filled fogproof
- Waterproof to 6'
UPC: 000381861429 In the Box Steiner 1.6-8x42 Nighthunter Xtreme Riflescope (4A-1 German #4 Illuminated Reticle) - CR-2023 Battery
- Neoprene Cover
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 1.6-8x42 Nighthunter Xtreme Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 6142 Specs | | | Magnification | 1.6 to 8x | | Objective Lens Diameter | 42 mm | | Field of View | 1.6x: 65' @ 100 yd / 21.6 m @ 100 m
8x: 13.3' @ 100 yd / 4.4 m @ 100 m | | Exit Pupil Diameter | 1.6x: 10.4 mm
8x: 3.7 mm | | Eye Relief | 3.5 to 4.3" / 89 to 108 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | 4A-1 German #4 Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 0.1 MIL per Click | | Windage Adjustment | 8 MIL | | Elevation Adjustment | 15 MIL | | Parallax Correction | Yes, 328' / 100 m | | | | Operating Temperature | -13 to 145°F / -35 to 70°C | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2023 | | Dimensions | Length: 13" / 33 cm | | Weight | 24 oz / 680 g | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 18.3 x 4.5 x 4.1" |
