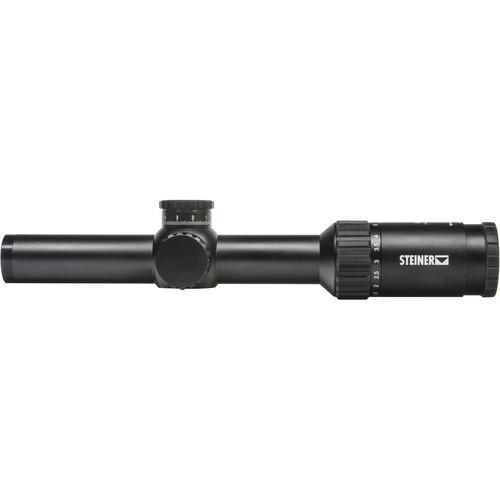

User Manual for Steiner 1-6x24 M6Xi Riflescope Click to enlarge the picture
Contents of the user manual for the Steiner 1-6x24 M6Xi Riflescope
- Product category: Riflescopes Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Riflescopes
|
User manual for the Steiner 1-6x24 M6Xi Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description Steiner's 1-6x24 M6Xi Riflescope offers strength, precision, and durability. Its optical system gives users a generous 1-6x zooming capability, a wide field of view, and bright and clear images, thanks to broadband anti-reflection coatings. For making accurate shot placements, the riflescope also has an illuminated Rapid Dot 5.56/7.62 reticle with two short horizontal posts around an illuminated target dot and a short vertical post with ballistic subtensions. The reticle lies in the second image plane and has a minimal footprint on the field of view. For matching the brightness to the environmental conditions and your preferences, the scope has a rotary brightness knob with incremental adjustments and intermittent off positions. The reticle is parallax free at 328 feet.
The anodized aluminum housing is filled with nitrogen and sealed for fog and waterproof performance and will endure temporary submersions to 33 feet. It also features a 30mm maintube, graduated exposed windage and elevation turrets, and an eyepiece with a knurled zoom ring. The windage and elevation turrets are resettable to zero and have a 32 MRAD elevation range, a 16 MRAD windage range, and 1/10 MRAD click adjustments. - Optical Performance
-
- 1 - 6x optical system
- 24mm objective diameter
- Broadband anti-reflection coatings
- 118.1 - 23.7' at 100 yards linear field of view
- Parallax-free at 328 feet
- 11.5 - 7.2mm exit pupil
- Use and Handling
-
- 1/10 MRAD impact point correction
- 32 MRAD elevation range
- 16 MRAD windage range
- 3.5 - 4.3" eye relief
- +2 to -3 diopter correction
- Construction Details
-
- 30mm maintube diameter
- Aluminum housing with anodized finish
- Exposed graduated resettable turrets with zero stop
- Rotary knob for illumination with intermittent off positions
- Accommodates a CR2450 battery
- Nitrogen filled, fogproof
- Waterproof, submersible to 33'
- Rapid Dot 5.56/7.62 Illuminated Reticle
-
- Second focal plane
- Red illuminated target dot
- Two short horizontal posts around a target dot
- Short vertical post with ballistic stadia under the dot
- Incremental illumination with intermittent off positions
UPC: 840229101009 In the Box Steiner 1-6x24 M6Xi Riflescope (Black) - 2 x Lens Caps
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 1-6x24 M6Xi Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner M6Xi Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 118.6' @ 100 yd / 39.4 m @ 100 m
5x: 23.7' @ 100 yd / 7.9 m @ 100 m | | Exit Pupil Diameter | 1x: 11.5 mm
6x: 7.2 mm | | Eye Relief | 3.5 to 4.3" / 8.9 to 10.9 cm | | Diopter Correction | -2.0 to +3.0 | | | | Reticle Type | Rapid Dot 5.56/7.62 Reticle (Second Focal Plane) | | Illumination | Illuminated | | Illuminated Color | Red | | Brightness Settings | Adjustable Brightness (11 Levels) | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 16 MRAD | | Elevation Adjustment | 32 MRAD | | Parallax Correction | Yes, 328' / 100 m | | | | Water Resistance | Waterproof to 33' / 10.1 m | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | -13 to 145°F / -25 to 62°C | | | | Maintube Diameter | 30 mm | | Battery | Reticle: 1 x CR2450 | | Dimensions | Length: 11.3" / 28.7 cm | | Weight | 22 oz / 623.7 g |
