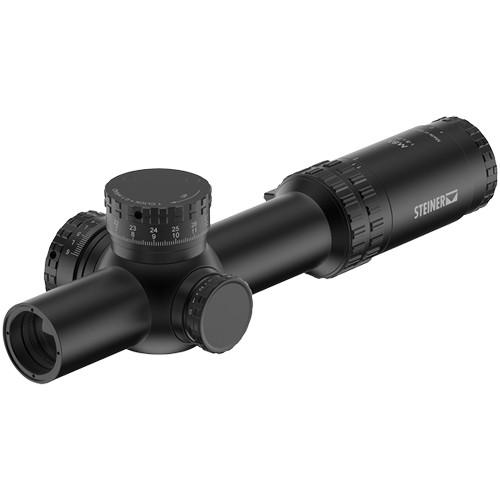

User Manual for Steiner 1-8x24 M8Xi Riflescope Click to enlarge the picture
Contents of the user manual for the Steiner 1-8x24 M8Xi Riflescope
- Product category: Riflescopes Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Riflescopes
|
User manual for the Steiner 1-8x24 M8Xi Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description Part of Steiner's M series of military-style scopes, the 1-8x24 M8Xi Riflescope gives you flexibility and high resolution from close quarter to mid-range scenarios. The scope offers a wide field of view and its 34mm maintube permits broad elevation and windage adjustment ranges. The Designated Marksman Reticle (DMR) in the first focal plane features the subtensions necessary for precise aiming.
Broadband anti-reflection coatings on all air-to-glass surfaces yield bright details and sharp contrast, even in low light, and the aluminum-alloy tube is purged with nitrogen and trace helium for waterproof and fogproof performance. Low-profile turrets won't clutter your view downrange, and the scope's length (under 11") leaves room on your rail for additional optics like thermal imaging or night vision devices. The adjustable-brightness illuminated reticle is powered by one CR2032 battery. - Optical Performance
-
- 1-8x magnification range
- 24mm objective lens
- DMR8i reticle in first focal plane
- Broadband anti-reflection coatings for detail and contrast
- Use and Handling
-
- 0.1 MRAD per click impact point correction
- 26 MRAD elevation and 6 MRAD windage adjustments
- 3.5" eye relief
- Side focus parallax adjustment
- Construction Details
-
- 34mm single-piece maintube
- Aluminum-alloy housing
- 10.8" tube leaves room on rail for additional optics
- Low-profile turrets for situational awareness and mounting options for accessories
- Fogproof and shock resistant
- Waterproof, submersible to 66'
- Side focus parallax corrector knob
- Illuminated reticle powered by one CR2032 battery
UPC: 840229104390 In the Box Steiner 1-8x24 M8Xi Riflescope (DMR8i Reticle) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 1-8x24 M8Xi Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner M8Xi Specs | | | Magnification | 1 to 8x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 96.4' @ 100 yd / 32 m @ 100 m
8x: 13.6' @ 100 yd / 4.5 m @ 100 m | | Exit Pupil Diameter | 1x: 24 mm
8x: 3 mm | | Eye Relief | 3.5" / 8.9 cm | | Diopter Correction | -2.0 to +2.0 | | | | Reticle Type | DMR8i Reticle (First Focal Plane) | | Illumination | Illuminated | | Brightness Settings | Adjustable Brightness | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 6 MRAD | | Elevation Adjustment | 26 MRAD | | | | Water Resistance | Waterproof to 66' / 20.1 m | | Fogproof | Yes | | Operating Temperature | -50 to 120°F / -45 to 48°C | | | | Maintube Diameter | 34 mm | | Battery | Reticle: 1 x CR2032 | | Dimensions | Length: 10.8" / 27.4 cm | | Weight | 26.5 oz / 751 g |
