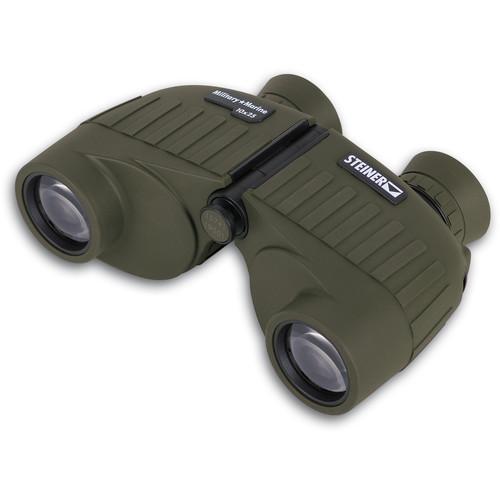

User Manual for Steiner 10x25 Military Marine Binocular Click to enlarge the picture
Contents of the user manual for the Steiner 10x25 Military Marine Binocular
- Product category: Binoculars Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Binoculars
|
User manual for the Steiner 10x25 Military Marine Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More urtrtyszdycexvxcc Designed and built for long-distance glassing at sporting events and concerts as well as sightseeing around town, the Steiner Optics 10x25 Military/Marine Binocular combines multiple technologies and features to ensure clear and crisp views without weighing you down.This optic owes its performance to a traditional Porro prism light path that presents you with a rich depth of field, which allows you to discern the relative distance between objects in your field of view, and fully multi-coated optics that are defined by bright and clear high-contrast views and accurate color rendition. Its apparent angle of view approaches wide angle to help minimize the appearance of the distracting visible hand shake that is common when holding high-power optics such as this. To keep the optical components precisely aligned, Steiner employs their floating prism system, which uses a flexible silicone mount that absorbs shocks and impacts without shifting the optical alignment—ensuring crisp and sharp images for the life of the binocular.Complementing the optical performance are construction details that allow the binocular to withstand the rigors of the outdoors. These details begin with Steiner's proprietary Sports-Auto-Focus System, which allows you to focus each eyepiece, just one time, and eliminates the need to refocus again regardless of how near or far the subject is—even if it is moving. The chassis is made of a lightweight and impact-resistant Makrolon polycarbonate material wrapped in an oil, petroleum, and chemical-resistant NBR synthetic rubber armor that offers improved grip security, especially in cold and wet weather. The optical tubes feature raised ridges to improve grip security, while the interior of the tubes is O-ring sealed to be waterproof against rain, snow, or spraying water.Weighing less than 11 ounces and measuring under 6" long, the Steiner Military/Marine binocular has been engineered to provide outstanding performance while allowing you to move freely and quickly through thick woods and brush or busy city streets and avenues. - Optical Performance
-
- 10x power magnifies distant subjects for making detailed observations
- 25mm objectives keep the form factor small without the bulk or weight of larger objectives
- Traditional Porro prism optical path affords a richer depth of field versus similar roof prisms
- High-contrast fully multi-coated optics improve light transmission for bright and clear images with enhanced contrast and accurate color rendition
- Floating prism mounting system helps to absorb impacts to avoid damage and maintain optical path alignment
- 57° apparent angle of view approaches wide angle to present an immersive observational experience while helping to mitigate the appearance of the distracting hand shake often experienced when holding high-power optics
- 300-foot field of view at 1000 yards
- Use and Handling
-
- Sports-Auto-Focus System
- Fold-down rubber eyecups for comfortable use with or without eyewear
- 13.25mm eye relief
- 2.5mm exit pupil
Sports-Auto-Focus System:- Individual eyepiece focusing
- Requires only one initial individual focus adjustment per user
- Eliminates the need for refocusing for targets at ranges from 22 yards (20m) to infinity
- Enables the tracking of fast targets without the need to refocus
- Construction Details
-
- Lightweight and impact-resistant Makrolon polycarbonate chassis remains a comfortable temperature regardless of air temperature and resists expansion/contraction common in metal chassis that can cause the optics to move out of alignment over time
- O-ring sealed to be waterproof for use in light rain or snow
- Oil, petroleum, and chemical-resistant NBR synthetic rubber armor offers improved grip security, especially in cold and wet weather
- Compact form factor for easier packing and handling
- Lightweight: 10.7 ounces
UPC: 840229103133 In the Box Steiner 10x25 Military/Marine Binocular Neck Strap Carrying Case One-Piece Ocular Rainguard 2 x Objective Lens Caps Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 urtrtyszdycexvxcc A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 10x25 Military Marine Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 2037 Specs | Prism Type | Porro | | Magnification | 10 x | | Objective Lens Diameter | 25 mm | | Angle of View | 5.7° (Actual) | | Field of View | 300.0' @ 1000 yd / 99.6 m @ 1000 m | | Minimum Focus Distance | 66' / 20.1 m | | Exit Pupil Diameter | 2.5 mm | | Eye Relief | 13.25 mm | | Dioptric Correction | None | | Focus Type | Individual | | Tripod Mount | None | | Dimensions | 5.6 x 3.7 x 1.8" / 14.2 x 9.4 x 4.6 cm | | Weight | 10.7 oz / 303.3 g |
