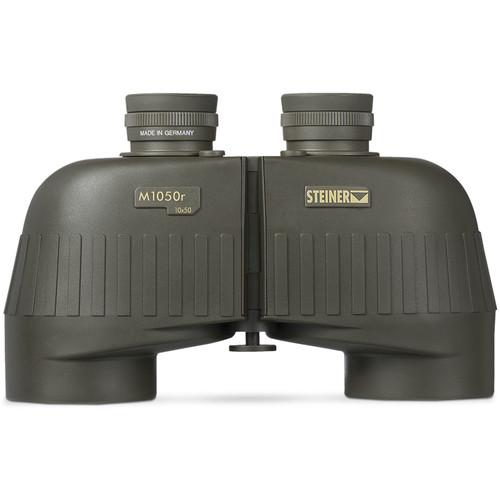

Steiner 10x50 M1050r Military Binocular

User Manual for Steiner 10x50 M1050r Military Binocular

• Product category: Binoculars Steiner
• Brand: Steiner
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Steiner Binoculars

Product description

Optical Performance
• • Powerful 10x magnification allows for detailed observations of distant subjects
  • Large 50mm objective lens diameter draws in copious amounts of light to boost its light-gathering ability in challenging conditions such as at dawn and dusk, or in dense fog
  • Traditional Porro prism optical path produces a rich depth of field to more easily discern the relative distances between objects in the field of view
  • Floating prism mounting system helps to absorb impacts to avoid damage and maintain optical path collimation
  • Anti-reflection fully multi-coated optics maximize light transmission, improve color rendition accuracy, enhance contrast, and improve clarity
  • Wide 62° apparent angle of view helps to minimize the disorientation often associated with using high-power optics on rough or rolling seas
  • Generous 328' field of view at 1000 yards

Reticle
• • Uses hash marks and stadia lines with clear numbers for estimating range to, and size of subjects such as game animals, boats, buoys, and people
  • Traditional crosshair style is easy to read without cluttering the view
  • Can also be used to calculate ballistic drop compensation for improved first-shot accuracy

Use and Handling
• • Individually-focusing eyepieces enable precise tack-sharp views
  • ±5 dioptric correction allows user to compensate for optical prescriptions for sharper images
  • 56-74mm interpupillary adjustment range
  • Fold-down rubber eyecups for comfortable use with or without eyewear
  • 16mm eye relief makes viewing more comfortable with reduced eye strain, especially during long glassing sessions
  • Wide 5mm exit pupil will completely cover most pupils when they open and dilate in low light to avoid vignetting of the view
  Sports-Auto-Focus System:
  • Individual eyepiece focusing
  • Requires only one initial individual focus adjustment per user
  • Eliminates the need for refocusing for targets at ranges from 22 yards (20m) to infinity
  • Enables the tracking of fast targets without the need to refocus

Construction Details
• • Built to exacting military standard specifications with tight tolerances
  • Lightweight and impact-resistant Makrolon polycarbonate chassis
  • Nitrogen-filled and O-ring sealed to be waterproof to a depth of 16' (5m), and resistant to internal fogging when moving through extreme temperature changes and environmental conditions
  • Oil-, petroleum-, and chemical-resistant NBR synthetic rubber armor offers improved grip security, especially in cold and wet weather
  • Raised ridges on armor improves grip security and stability
  • Weight: 35 ounces
