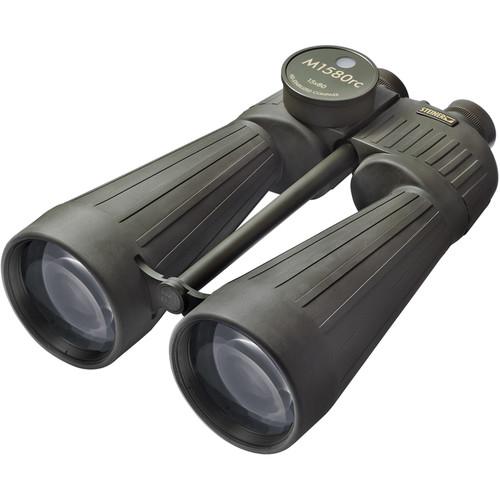

Steiner 15x80 M1580c Military Binocular

User Manual for Steiner 15x80 M1580c Military Binocular

• Product category: Binoculars Steiner
• Brand: Steiner
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Steiner Binoculars

Product description

• We Are Steiner
• Steiner Tactical
• Steiner M80c Commander Military 15X80c Binocular | 360 Degree View

Optical Performance
• • High 15x power greatly magnifies objects for detailed observation of distant objects
  • Large oversized 80mm objective lenses draw in copious amounts of light to ensure bright and clear images, while enhancing its low-light capabilities through the pre-dawn and dusk hours, and in heavy fog or cloud cover
  • Traditional Porro prism optical path produces a rich depth of field to more easily discern the relative distances between objects in the field of view
  • Floating prism mounting system helps to absorb impacts to avoid damage and maintain optical path collimation
  • Anti-reflection fully multi-coated optics maximize light transmission, improve color rendition accuracy, enhance contrast, and improve clarity
  • Wide 61° apparent angle of view provides sweeping views to complement the high-power, and helps to minimize the disorientation often associated with using high-power optics on rough or rolling seas
  • 213' field of view at 1000 yd

Compass
• • In-view compass bearings allow user to take readings without taking eyes away from optic
  • Illuminated for easier viewing in low-light conditions
  • Fluid-damped stabilization for higher precision, especially on rough seas
  • Runs on one included 1.5 V 350 battery

Use and Handling
• • Individually-focusing eyepieces enable precise tack-sharp views
  • Fold-down rubber eyecups for comfortable use with or without eyewear
  • 56-72mm adjustable interpupillary distance
  Sports-Auto-Focusing System:
  • Individual eyepiece focusing
  • Requires only one initial individual focus adjustment per user
  • Eliminates the need for refocusing for targets at ranges from 22 yards (20m) to infinity
  • Enables the tracking of fast targets without the need to refocus
  • 11.2mm eye relief
  • 5.3mm exit pupil

Construction Details
• • Built to exacting military standard specifications with tight tolerances
  • Lightweight and impact-resistant Makrolon polycarbonate chassis
  • Center stabilizer bar adds rigidity and ensures optical tubes remain parallel for clearer views, and provides a strong attachment point for the included tripod adapter
  • Nitrogen-filled and O-ring sealed to be waterproof to a depth of 16' (5m), and resistant to internal fogging when moving through extreme temperature changes and environmental conditions
  • Oil-, petroleum-, and chemical-resistant NBR synthetic rubber armor offers improved grip security, especially in cold and wet weather
  • Raised ridges on armor improves grip security and stability
  • Includes tripod adapter to improve image stability for long-term observations, eliminate arm fatigue, and limit vibrations
  • Tethered one-piece ocular rainguard and objective lens covers to protect the lenses without the chance of losing them; can be placed anywhere along the stabilizer bar for proper balance
  • Weight: 69 ounces
