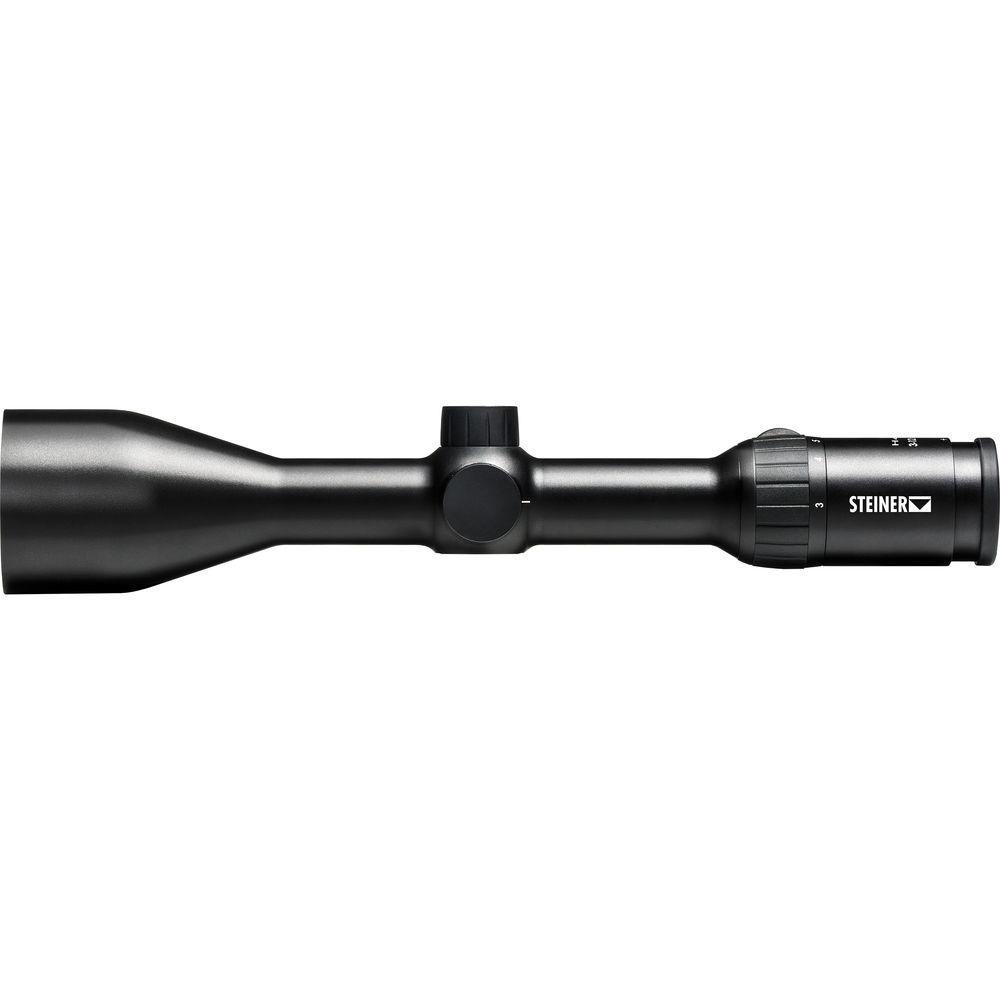

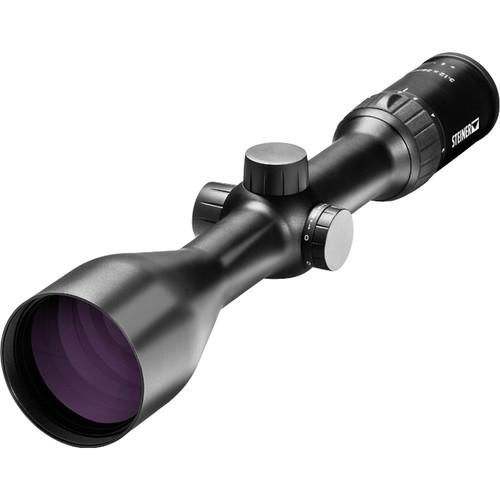

Product description Steiner's 3-12x56 H4Xi Riflescope combines strength and durability with a 3-12x zoom optical system and good low-light performance, thanks to the extra-wide 56mm objective. Its precision optics feature high-contrast elements for delivering high image clarity and definition, and anti-reflective coatings for increasing brightness and reducing glare. Another highlight is an illuminated S1 MOA reticle. It lies in the second image plane and provides three thin posts in the upper half and a fully-illuminated crosshair with a vertical line extending to the end of the lower half. Under the center, the vertical line offers markings for ballistic and wind compensation. For matching its brightness to environmental factors and your to your preferences, the illumination has a precision brightness control. Aiming is parallax-free at 109 yd, and windage and elevation offer 33 MOA ranges with 1/4 MOA clicks.
The anodized aluminum housing is filled with nitrogen and sealed for fogproof and waterproof performance and endures temporary submersions to 6.5'. It is built around a 30mm maintube and has capped low-profile windage and elevation turrets and an eyepiece with a knurled zoom ring. - Optical Performance
-
- 3 -12x optical system
- 56mm, extra-wide objective delivers bright images in low light
- High-contrast optical elements deliver images with better contrast and definition
- Anti-reflection coatings improve image brightness and reduce glare
- 13 - 3 yards at 100 yards linear field of view
- Parallax-free at 109 yards
- 12 - 4.6mm exit pupil
- Use and Handling
-
- 1/4 MOA impact point correction
- 33 MOA elevation and windage ranges
- 3.8" eye relief
- +2 to -3 diopter correction
- Construction
-
- 30mm maintube diameter
- Aluminum housing with anodized finish
- Capped low-profile turrets
- Accommodates CR-2032 battery
- Nitrogen-filled, fogproof
- Waterproof, submersible to 6.5'

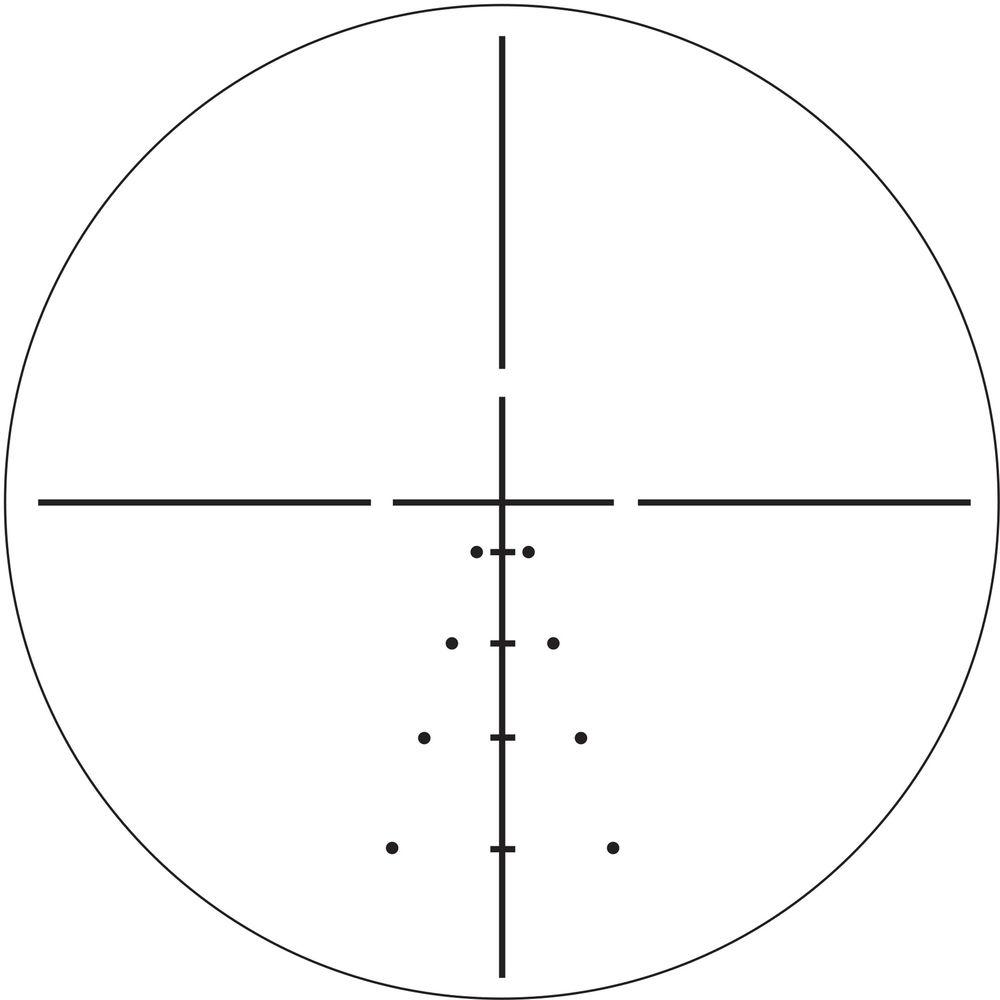

- S1 MOA Reticle
-
- 2nd focal plane
- Three thin posts in upper half of the reticle
- Fully illuminated crosshair with a tree of ballistic and wind marks under the center
- Illuminated vertical crosshair line below the center
UPC: 000381852502 In the Box Steiner 3-12x56 H4Xi Riflescope (Plex S1 Illuminated Reticle, Matte Black) - CR-2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 3-12x56 H4Xi Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner H4Xi Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 56 mm | | Field of View | 3x: 13' @ 100 yd / 13 m @ 100 m
12x: 3' @ 100 yd / 7.9 m @ 100 m | | Exit Pupil Diameter | 3x: 12 mm
12x: 4.6 mm | | Eye Relief | 3.8" / 97 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | Plex S1 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 33 MOA | | Elevation Adjustment | 33 MOA | | Parallax Correction | Yes, 109.4 yd / 100 m | | | | Water Resistance | Waterproof to 6.5' / 2 m | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | -13 to 149°F / -25 to 65°C | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.2" / 33.5 cm | | Weight | 25 oz / 708.7 g |
