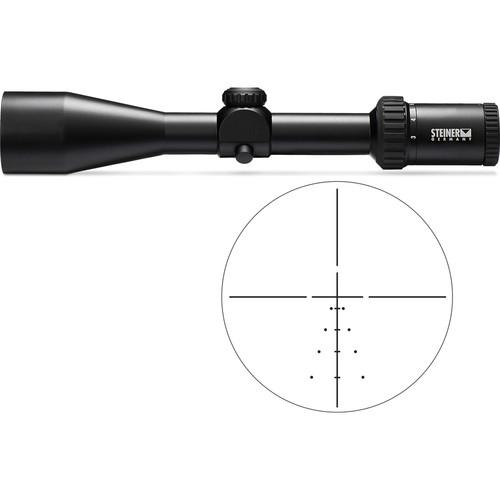

User Manual for Steiner 3-15x50 GS3 Riflescope Click to enlarge the picture
Contents of the user manual for the Steiner 3-15x50 GS3 Riflescope
- Product category: Riflescopes Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Riflescopes
|
User manual for the Steiner 3-15x50 GS3 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description - We Are Steiner
- Steiner Defining Moments
If you can benefit from enhancing identification of your game against various backgrounds, consider the 3-15x50 GS3 Riflescope with S1 Reticle from Steiner.This riflescope features Color Adjusted Transmission (CAT) lens coatings that produce images with color and contrast that are optimized for human vision, which makes it easier to see detail on a variety of backgrounds and to identify your game and targets. While the improved 5x zoom offers sharp images and allows you to make precise long-distance shots, the 50mm objective enhances visibility in low-light conditions like dusk and dawn. To help you compensate for a wind drift and bullet drop, there are a 70 MOA windage adjustments and elevation adjustments with a 1/4 MOA point impact correction.
The Steiner Plex S1 Reticle features ballistic lines to help you determine holdover distances and compensate for crosswinds. The hash marks below the center help you to compensate for a bullet drop at ranges of 200, 300, 400, 500, and 600 yards. The reticle also features a series of dots under the crosshair, winch help you to compensate for 10 mph cross winds.
To enable you to use and store this riflescope in a wide range of environmental conditions, the housing is made from anodized aluminum and offers protection against recoil, impact, water immersion, and fogging-up of the lenses. The windage and elevation knobs are resettable and capped, and the knurled diopter and zoom rings allow easy adjustments. The zoom ring also has a low profile lever for easy one-finger adjustments. Also included with the scope is a lens cloth. - Optical Performance
-
- 50mm objective is ideal for low-light conditions
- 3-15x magnification with improved high-zoom image sharpness
- CAT-Color Adjusted Transmission coatings optimize contrast for human vision
- Parallax Correction Range: 328'
- Eye Relief: 3.5- 4.3"
- Steiner Plex S1 Reticle
-
- 2nd focal plane
- Crosshair with bullet drop and wind drift subtensions
- Hash marks account for bullet drop at ranges of 200, 300, 400, 500, and 600 yd
- Wind drift dots account for 10 mph wind
- Use and Handling
-
- 1/4 MOA per click impact point correction
- 70 MOA windage and elevation adjustment ranges
- Capped-resettable adjustment knobs
- Construction Details
-
- Main Tube Diameter: 30mm
- Anodized aluminum construction
- Knurled zoom ring has a low profile lever for easy adjustments
- Knurled diopter ring
- Nitrogen-filled fogproof
- Shock-resistant
- Waterproof
UPC: 000381850058 In the Box Steiner 3-15x50 GS3 Riflescope (Steiner Plex S1 Reticle) Lens Cloth Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 3-15x50 GS3 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner GS3 Specs | | | Magnification | 3 to 15x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 36' @ 100 yd / 12 m @ 100 m
15x: 7.5' @ 100 yd / 2.5 m @ 100 m | | Exit Pupil Diameter | 3x: 11 mm
15x: 3.5 mm | | Eye Relief | 3.5 to 4.3" / 89 to 108 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | Steiner Plex S1 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 70 MOA | | Elevation Adjustment | 70 MOA | | Parallax Correction | Yes, 328' / 100 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 14.1" / 358 mm | | Weight | 24 oz / 680 g | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 18.5 x 3.8 x 3.4" |
