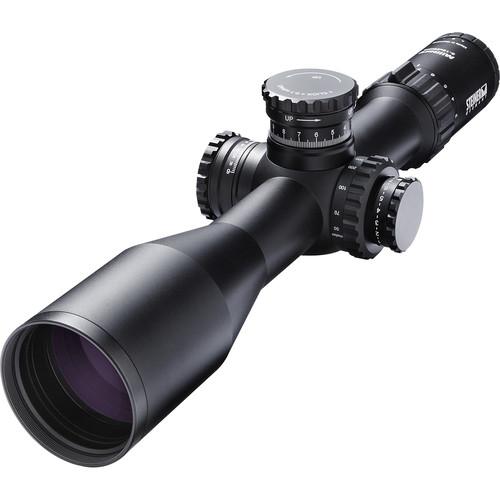

User Manual for Steiner 3-15x50 M5Xi Military Riflescope Click to enlarge the picture
Contents of the user manual for the Steiner 3-15x50 M5Xi Military Riflescope
- Product category: Riflescopes Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Riflescopes
|
User manual for the Steiner 3-15x50 M5Xi Military Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description The 3-15x50 M5Xi Military Riflescope by Steiner Optics is a precision-engineered instrument suited to mid-range shooting. The fully multi-coated optical system features a 50mm objective for gathering more light in very low light conditions and 3-15x zoom for target acquisition. Broadband anti-reflective coatings assure greater than 94% light transmission for optimal performance in low-light conditions. The glass-etched Horus Tremor 2 illuminated reticle features seven night and four day levels with "off" positions at each end, and quick standby levels between each for fast return setting. The tube and knob configuration are optimized for more mounting options and optimum performance with different rifles and added equipment. Precision 1/10 MRAD impact point adjustments for windage and elevation are accomplished with tactile click-by-click feedback. Parallax can be adjusted from 54.7 yards to infinity with the side-mounted knob. The scope features one-piece aluminum tube construction and is waterproof to 33' and fogproof. - Optical Performance
-
- Magnification: 3-15x
- Objective lens: 50mm
- Broadband anti-reflective coatings assure greater than 94% light transmission
- Horus Tremor 2 Reticle
-
- First focal plane
- Four day and seven night illumination levels with "off" settings at each end
- Visually place target on appropriate grid lines to correct for elevation and windage without turning knobs or counting clicks
- Chevron markers subtend to 0.1 mil
- Holdover crosses to extend wind and elevation hold points beyond the Horus Grid
- Drop line numbers 1-9 serve as 4-mph moving target holds
- Use and Handling
-
- Positive-grip elevation, windage, parallax, and illumination knobs
- Optimized tube & knob configuration for mounting options and optimum performance with different rifles and added equipment
- Windage & elevation adjustment: 1/10 MRAD per click
- Elevation adjustment range: 34 MRAD
- Windage adjustment range: 15 MRAD
- Duo Scale elevation adjustment with second-rotation indicator
- Side parallax focus
- Eye relief: 3.5-4.3"
- Exit pupil: 12-3.4mm
- Locking diopter
- Resettable turrets
- Construction Details
-
- One-piece aluminum construction
- Waterproof, fogproof, submersible to 33'
- Shockproof—withstands impact testing to 900 Gs on all optical and electronic components
- Overall length 13.1"
- Weight: 29.8 oz
UPC: 840229101894 In the Box Steiner 3-15x50 M5Xi Military Riflescope (Horus Tremor 2 Illuminated Reticle, Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 3-15x50 M5Xi Military Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner M5Xi Specs | | | Magnification | 3 to 15x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 36' @ 100 yd / 12 m @ 100 m
15x: 7.3' @ 100 yd / 2.4 m @ 100 m | | Exit Pupil Diameter | 3x: 12 mm
15x: 3.4 mm | | Eye Relief | 3.5 to 4.3" / 8.9 to 10.9 cm | | | | Reticle Type | Horus Tremor 2 Reticle | | Illumination | Illuminated | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment | 15 MRAD | | Elevation Adjustment | 34 MRAD | | Parallax Correction | Yes, 54.7 yd / 50 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | Operating Temperature | -13 to 145°F / -25 to 62°C | | | | Maintube Diameter | 34 mm | | Battery | Reticle: 1 x CR2450 | | Dimensions | Length: 13.1" / 33.3 cm | | Weight | 29.8 oz / 844.8 g |
