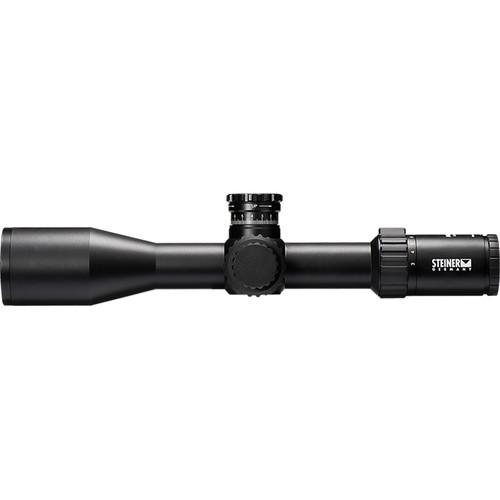

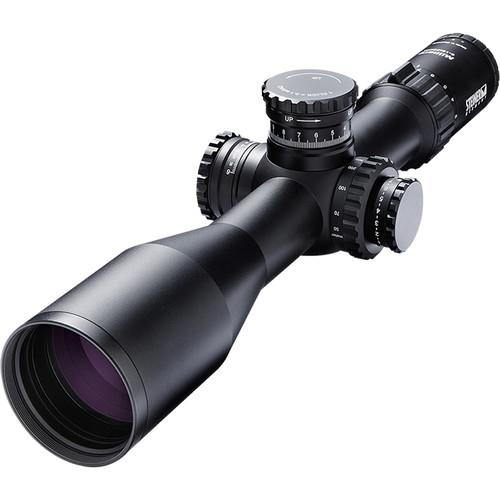

Product description The 3-15x50 M5Xi Military Riflescope by Steiner Optics is a precision-engineered instrument suited to mid-range shooting. The fully multi-coated optical system features a 50mm objective for gathering more light in very low light conditions and 3-15x zoom for target acquisition. Broadband anti-reflective coatings assure greater than 94% light transmission for optimal performance in low-light conditions. The glass-etched Horus H59 illuminated reticle features seven night and four day levels with "off" positions at each end, and quick standby levels between each for fast return setting. The tube and knob configuration are optimized for more mounting options and optimum performance with different rifles and added equipment. Precision 1/10 MRAD impact point adjustments for windage and elevation are accomplished with tactile click-by-click feedback. Parallax can be adjusted from 54.7 yards to infinity with the side-mounted knob. The scope features one-piece aluminum tube construction and is waterproof to 33' and fogproof. - Optical Performance
-
- Magnification: 3-15x
- Objective lens: 50mm
- Broadband anti-reflective coatings assure greater than 94% light transmission

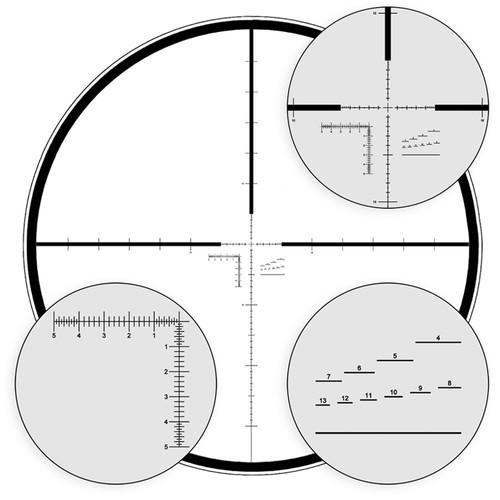

- Horus H59 Reticle
-
- First focal plane
- Four day and seven night illumination levels with "off" settings at each end
- Visually place target on appropriate grid lines to correct for elevation and windage without turning knobs or counting clicks
- Broken cross design so groupings are less obscured and more easily seen
- Holdover dots to extend wind and elevation hold points beyond the Horus Grid
- Moving target holds for shots located on the main horizontal crosshair
- Use and Handling
-
- Positive-grip elevation, windage, parallax, and illumination knobs
- Optimized tube & knob configuration for mounting options and optimum performance with different rifles and added equipment
- Windage & elevation adjustment: 1/10 MRAD per click
- Elevation adjustment range: 34 MRAD
- Windage adjustment range: 15 MRAD
- Duo Scale elevation adjustment with second-rotation indicator
- Side parallax focus
- Eye relief: 3.5-4.3"
- Exit pupil: 12-3.4mm
- Locking diopter
- Resettable turrets
- Construction Details
-
- One-piece aluminum construction
- Waterproof, fogproof, submersible to 33'
- Shockproof—withstands impact testing to 900 Gs on all optical and electronic components
- Overall length 13.1"
- Weight: 29.8 oz
UPC: 840229101887 In the Box Steiner 3-15x50 M5Xi Military Riflescope (Horus H59 Illuminated Reticle, Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 3-15x50 M5Xi Military Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner M5Xi Specs | | | Magnification | 3 to 15x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 36' @ 100 yd / 12 m @ 100 m
15x: 7.3' @ 100 yd / 2.4 m @ 100 m | | Exit Pupil Diameter | 3x: 12 mm
15x: 3.4 mm | | Eye Relief | 3.5 to 4.3" / 8.9 to 10.9 cm | | | | Reticle Type | Horus H59 Reticle | | Illumination | Illuminated | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment | 15 MRAD | | Elevation Adjustment | 34 MRAD | | Parallax Correction | Yes, 54.7 yd / 50 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | Operating Temperature | -13 to 145°F / -25 to 62°C | | | | Maintube Diameter | 34 mm | | Battery | Reticle: 1 x CR2450 | | Dimensions | Length: 13.1" / 33.3 cm | | Weight | 29.8 oz / 844.8 g |
