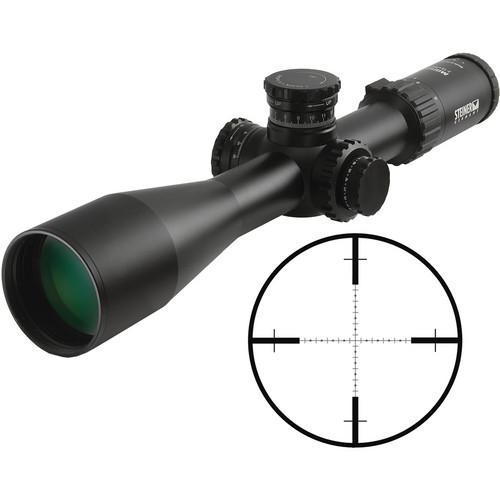

User Manual for Steiner 3-15x50 Military Riflescope Click to enlarge the picture
Contents of the user manual for the Steiner 3-15x50 Military Riflescope
- Product category: Riflescopes Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Riflescopes
|
User manual for the Steiner 3-15x50 Military Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description - John Chapman and Steiner at LMS
- Steiner M5Xi Military 3-15x50 Scope | 360 Degree View
This 3-15x50 Military Riflescope from Steiner features broadband transmission optics, a weather-sealed housing and illuminated G2B Mil-Dot reticle. Steiner's anti-reflective broadband multicoating allows the lens system to transmit crisp images that are rich with contrast and brightness. A constant 3.5" eye relief and fast focus eyepiece provide a consistent viewing experience and ability to dial-in the etched glass reticle to suit the shooter's vision.The G2B Mil-Dot pattern adds hashes in 0.5 mrad increments to the standard Mil-Dot crosshair.A one-piece machined aluminum housing with sealed turrets and nitrogen-filling equip Steiner's Military series riflescopes for weather-resistant performance in extreme temperatures, rain, and humidity. Uncapped target-style turrets with 0.1 mrad impact point corrections enable precise shot placement. An 11-level reticle brightness adjustment system with intermediate standby settings gives the shooter several illumination options for daylight and low-light conditions. The 3-15x zoom range and full complement of handling features make this Military series scope well-suited for targeting at almost any range. - Optical Performance
-
- Magnification: 3-15x
- Objective lens: 50mm
- Main tube diameter: 34mm
- Broadband anti-reflective lens coating
- 3.5" constant eye relief
- Illuminated G2B Mil-Dot Reticle
-
- G2B Mil-Dot reticle pattern
- First focal plane reticle location
- 0.5 mrad hashmark increments
- Illuminated crosshair
- Four medium weight posts
- 11 reticle brightness settings (7 night & 4 day)
- Standby (Off) setting between each brightness level
- Use and Handling
-
- 0.1 mrad impact point adjustments
- Return-to-zero uncapped XL turrets
- Dedicated reticle brightness turret
- Fast focus eyepiece
- Construction Details
-
- Nitrogen-filled for fogproof and waterproof performance
- Weather-sealed windage and elevation turrets
- One-piece machined aerospace aluminum tube
- Operating temperature: -31 to 158°F
- Waterproof depth: 33 ft
- Weight: 32.5 oz
UPC: 000381855725 In the Box Steiner 3-15x50 Military Riflescope (Illuminated G2B Mil-Dot) CR2450 Battery Lens Caps Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 3-15x50 Military Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner M5Xi Specs | | | Magnification | 3 to 15x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 39.7' @ 100 yd / 12.1 m @ 100 m
15x: 7.9' @ 100 yd / 2.4 m @ 100 m | | Exit Pupil Diameter | 3x: 10.4 mm
15x: 3.3 mm | | Eye Relief | 3.5" / 89 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | G2B MIL Dot Reticle (First Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment | 6 MIL | | Elevation Adjustment | 26 MIL | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Operating Temperature | -31 to 158°F / -35 to 70°C | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2450 | | Dimensions | Length: 14.2" / 36 cm | | Weight | 32.5 oz / 920 g | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 19.3 x 4.5 x 4.1" |
