Product description - John Chapman and Steiner at LMS
- Steiner M5Xi Military 3-15x50 Scope | 360 Degree View

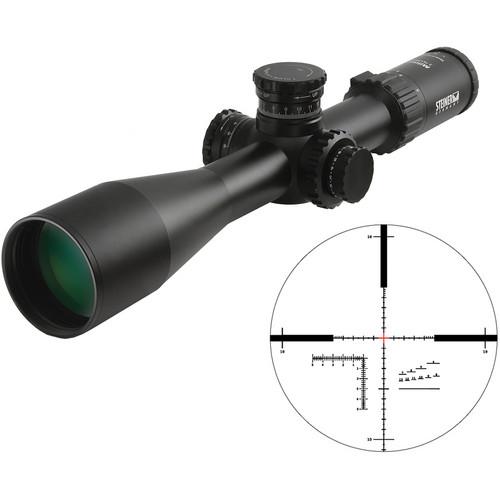

This 3-15x50 Military Riflescope from Steiner features broadband transmission optics, a weather-sealed housing and illuminated MSR reticle. Steiner's anti-reflective broadband multicoating allows the lens system to transmit crisp images that are rich with contrast and brightness. A constant 3.5" eye relief and fast focus eyepiece provide a consistent viewing experience and ability to dial-in the etched glass reticle to suit the shooter's vision.The Military Scope Reticle (MSR) Mil-Dot crosshair with hashes at 0.5 mrad increments on all four posts, as well as a 15 mrad holdover range on the six o'clock post. An inverted "L" under in the lower-left quadrant and tiered hashes in the lower-right provide two options for precise target range and size calculation at any position throughout the zoom range.A one-piece machined aluminum housing with sealed turrets and nitrogen-filling equip Steiner's Military series riflescopes for weather-resistant performance in extreme temperatures, rain, and humidity. Uncapped target-style turrets with 0.1 mrad impact point corrections enable precise shot placement. An 11-level reticle brightness adjustment system with intermediate standby settings gives the shooter several illumination options for daylight and low-light conditions. The 3-15x zoom range and full complement of handling features make this Military series scope well-suited for targeting at almost any range. - Optical Performance
-
- Magnification: 3-15x
- Objective lens: 50mm
- Main tube diameter: 34mm
- Broadband anti-reflective lens coating
- 3.5" constant eye relief
- Illuminated MSR Reticle
-
- MSR reticle pattern
- First focal plane reticle location
- 0.5 mrad hashmark increments
- Illuminated cross aiming point
- Inverted "L" and tiered hashmark rangefinders
- 11 reticle brightness settings (7 night & 4 day)
- Standby (Off) setting between each brightness level
- Use and Handling
-
- 0.1 mrad impact point adjustments
- Return-to-zero uncapped XL turrets
- Dedicated reticle brightness turret
- Fast focus eyepiece
- Construction Details
-
- Nitrogen-filled for fogproof and waterproof performance
- Weather-sealed windage and elevation turrets
- One-piece machined aerospace aluminum tube
- Operating temperature: -31 to 158°F
- Waterproof depth: 33 ft
- Weight: 32.5 oz
UPC: 000381855732 In the Box Steiner 3-15x50 Military Riflescope (Illuminated MSR) CR2450 Battery Lens Caps Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 3-15x50 Military Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner M5Xi Specs | | | Magnification | 3 to 15x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 39.7' @ 100 yd / 12.1 m @ 100 m
15x: 7.9' @ 100 yd / 2.4 m @ 100 m | | Exit Pupil Diameter | 3x: 10.4 mm
15x: 3.3 mm | | Eye Relief | 3.5" / 89 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | MSR Reticle (First Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment | 6 MIL | | Elevation Adjustment | 26 MIL | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Operating Temperature | -31 to 158°F / -35 to 70°C | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2450 | | Dimensions | Length: 14.2" / 36 cm | | Weight | 32.5 oz / 920 g | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 19.3 x 4.5 x 4.3" |
