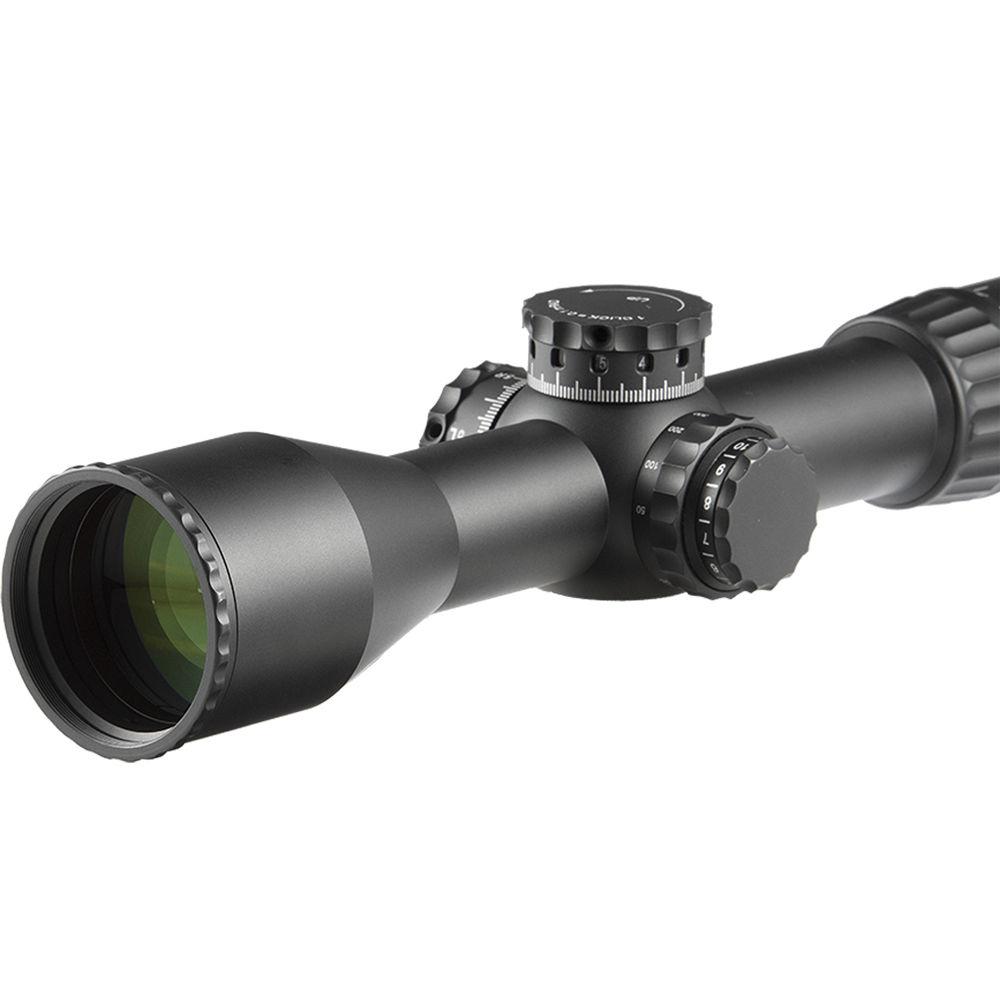

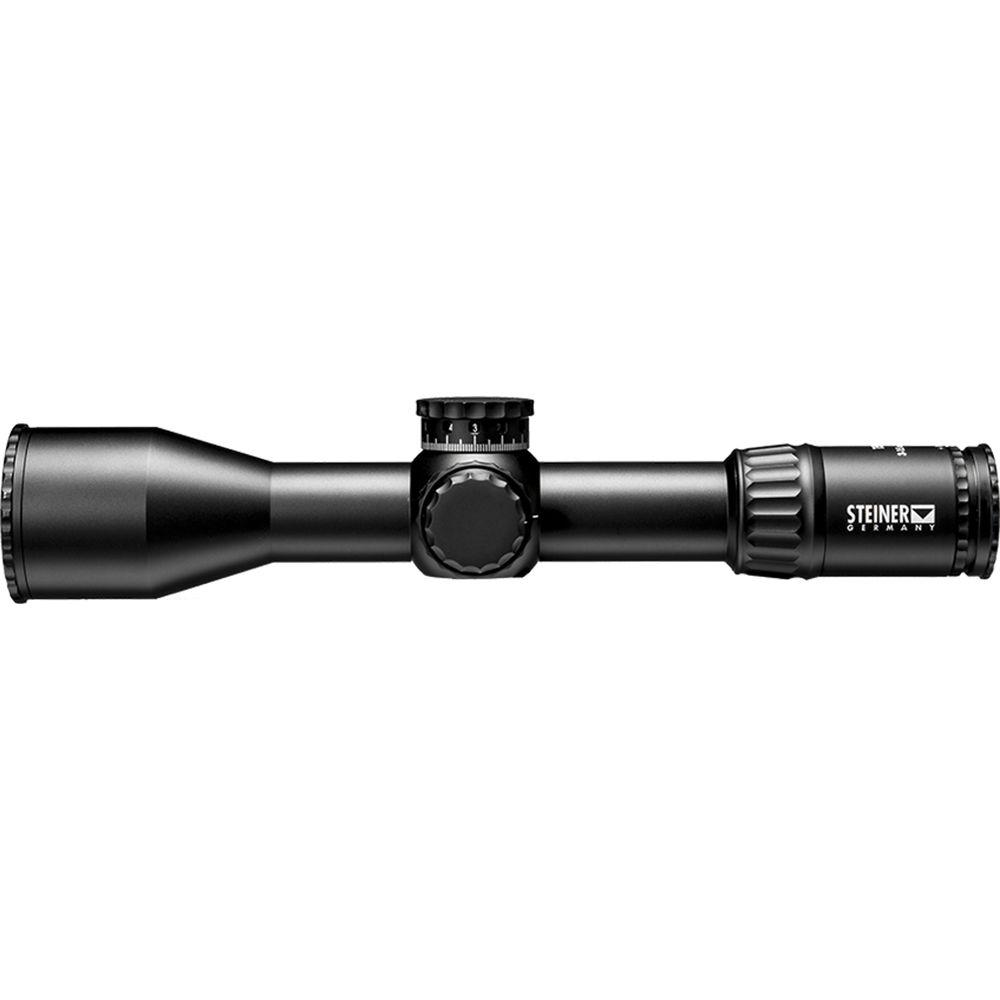

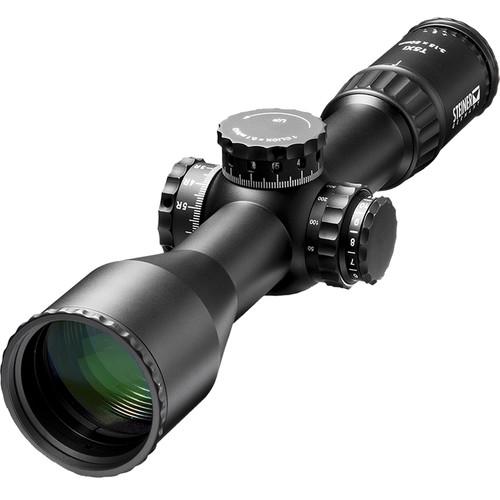

Product description The 3-15x50 T5Xi Riflescope from Steiner combines fully anti-reflection coated optics, a rugged waterproof body, and an illuminated reticle. The optical system features a 50mm objective for gathering more light in low-light conditions and 3-15x zoom for medium-to-long range target acquisitions. Another highlight is the Horus H59 reticle, which consists of a T-shaped crosshair and a grid of milling points extending to the bottom of the lower field. To provide clear visibility of the reticle's pattern in various lighting conditions, there are 11 illumination brightness levels: seven for daylight and four for nighttime. To help you compensate for wind and ballistic motion, the scope has 15 MIL windage and 34 MIL elevation adjustment ranges with 0.1 MIL clicks.The low-profile turrets are resettable and have hard stops at zero positions to prevent going over the range. The adjustment knobs and dials are wide and offer a comfortable non-slip grip. The elevation dial also has a second rotation indicator (with an integrated window) to avoid confusion about where you are on the dial. A tapered eyepiece ring with a zoom factor scale enables an easy verification of your magnification setting while you are aiming, without taking your attention from your target. If you need an instant zoom adjustment, use the included eyepiece throw lever for one-finger operation. To make sure that your personal diopter setting cannot be accidentally bumped off its position, the diopter ring has a locking mechanism. For exceptional strength and durability, the body offers a 34mm maintube. It is shock resistant, fogproof, and waterproof submersible to 33'. - Optical Performance
-
- 3-15x zoom range
- Anti-reflection coated optics
- 50mm objective gathers more light in low-light conditions
- Use and Handling
-
- 0.1 MIL impact point correction
- 15 MIL windage and 34 MIL elevation adjustments
- Construction Details
-
- 34mm single-piece maintube
- Anodized aluminum housing
- Tapered zoom ring makes zoom factor verification easy
- Wide, low-profile, knurled dials provide an easy grip
- Resettable and lockable windage and elevation turrets
- Elevation knob has a second rotation indicator with a window
- Throw lever for a quick and easy control of zoom is included
- Side focus parallax corrector knob
- Locking diopter ring
- Fogproof, shock resistant
- Waterproof, submersible to 33'
- H59 Reticle
-
- First focal plane
- No posts
- Fine T-shaped crosshair
- Grid of milling points extends to the bottom of the lower half of the field
- Edge-to-edge horizontal lines in the lower half of the field
- Seven brightness levels for use in daylight
- Four brightness levels for use at night
UPC: 000382951150 In the Box Steiner 3-15x50 T5Xi Riflescope (H59 Reticle, Matte Black) - 2 x Lens Caps
- CR2450 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 3-15x50 T5Xi Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner T5Xi Specs | | | Magnification | 3 to 15x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 36' @ 100 yd / 12 m @ 100 m
15x: 7.3' @ 100 yd / 2.5 m @ 100 m | | Exit Pupil Diameter | 3x: 12 mm
15x: 3.4 mm | | Eye Relief | 3.5 to 4.3" / 90 to 109 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | H59 Reticle (First Focal Plane) | | | | Impact Point Correction | 0.1 MIL per Click | | Windage Adjustment | 15 MIL | | Elevation Adjustment | 34 MIL | | Parallax Correction | Yes, 25 yd / 22.9 m to Infinity | | | | Water Resistance | Waterproof to 33' / 10 m | | Fogproof | Yes | | Operating Temperature | -13 to 145°F / -25 to 63°C | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2450 | | Dimensions | Length: 13.1" / 323 mm | | Weight | 29.8 oz / 845 g |
