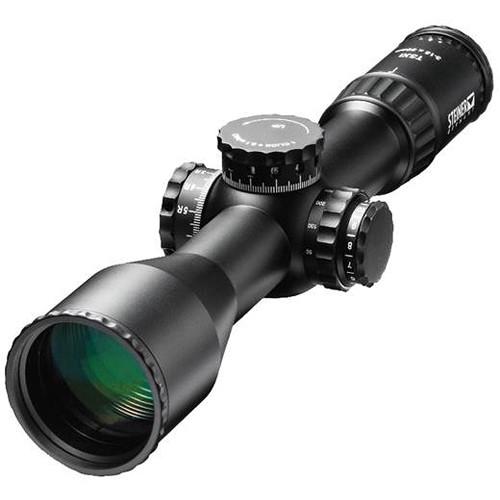

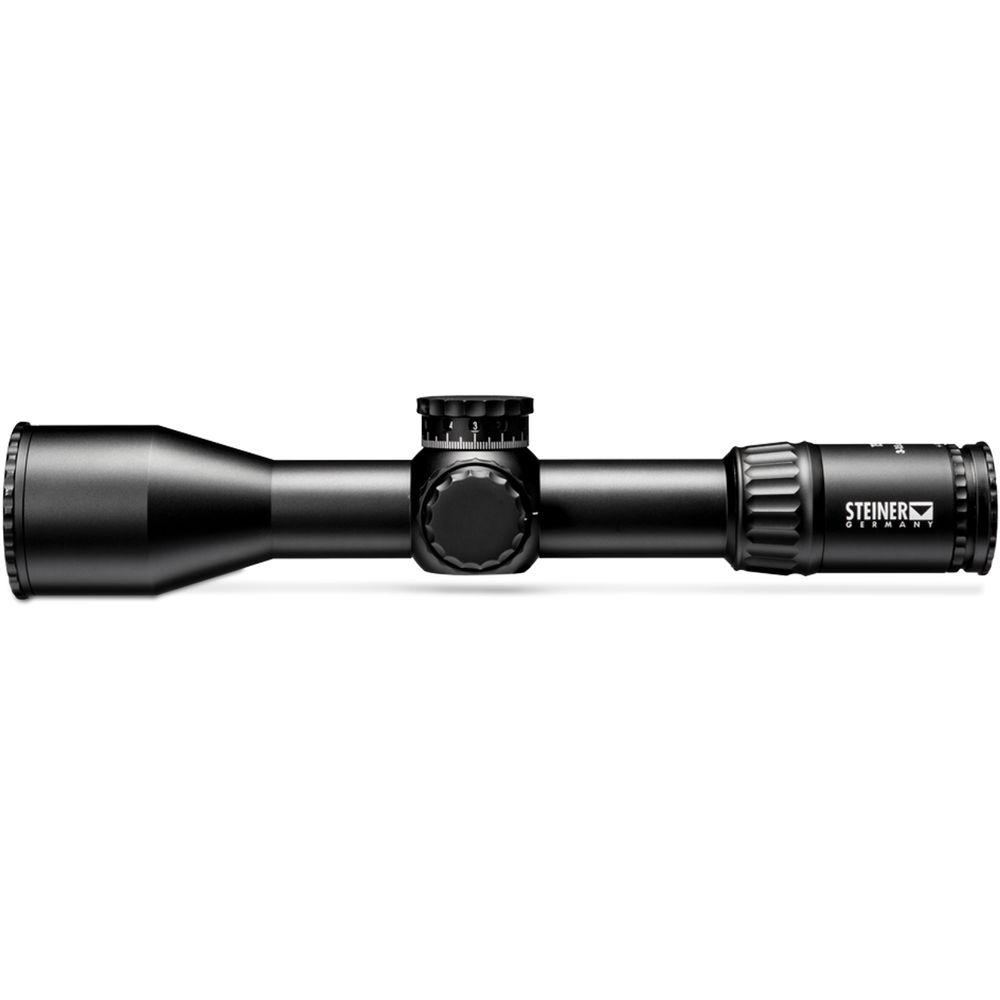

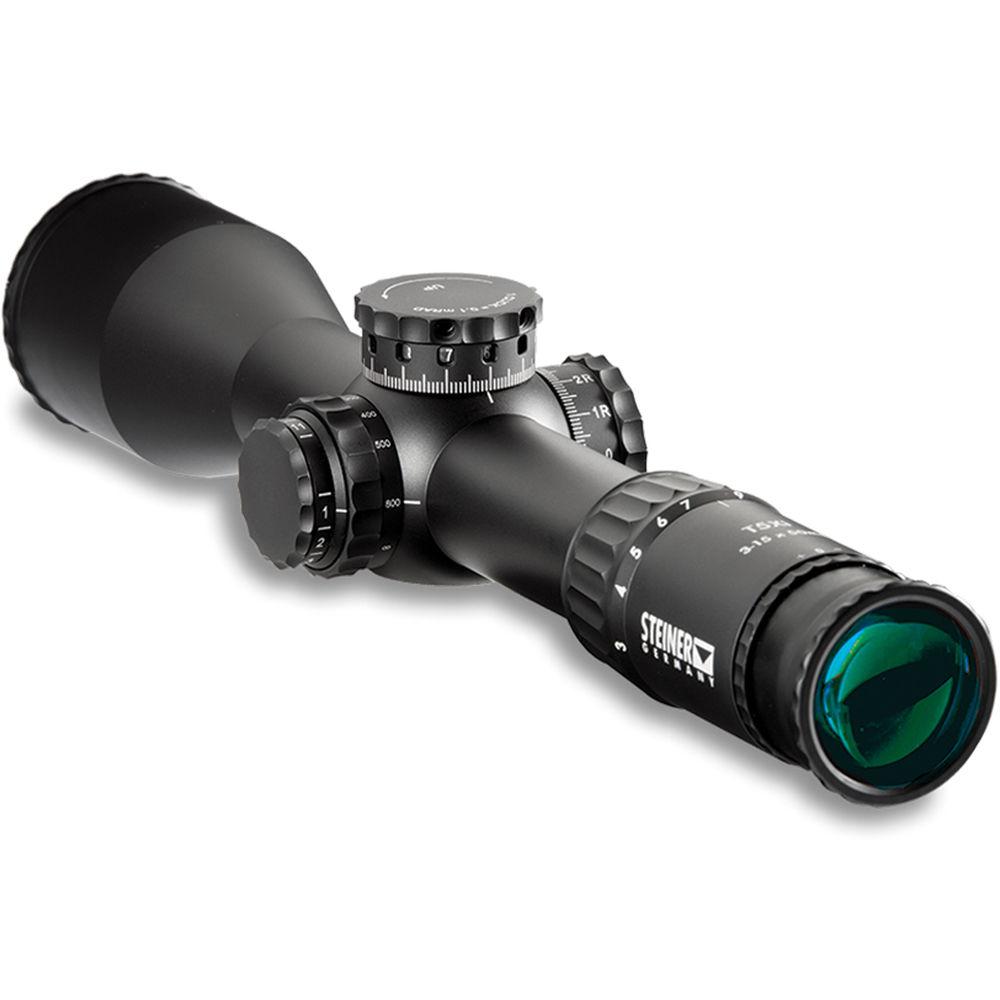

User Manual for Steiner 3-15x50 T5Xi Riflescope Click to enlarge the picture
Contents of the user manual for the Steiner 3-15x50 T5Xi Riflescope
- Product category: Riflescopes Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Riflescopes
 |
User manual for the Steiner 3-15x50 T5Xi Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description The 3-15x50 T5Xi Riflescope from Steiner combines fully anti-reflection coated optics, a rugged waterproof body, and an illuminated reticle. The optical system features a 50mm objective for gathering more light in low-light conditions and 3-15x zoom for medium-to-long range target acquisitions. Another highlight is the Competition Reticle (SCR) reticle, which consists of three very thin posts and a fine milling crosshair with an illuminated central area and a truncated top line. The reticle is located in the first focal plane and has densely spaced MIL-based hash marks. To provide clear visibility of the reticle's pattern in various lighting conditions, there are 11 illumination brightness levels: seven for daylight and four for nighttime. To help you compensate for wind and ballistic motion, the scope has 15 MIL windage and 34 MIL elevation adjustment ranges with 0.1 MIL clicks.The low-profile turrets are resettable and have hard stops at zero positions to prevent going over the range. The adjustment knobs and dials are wide and offer a comfortable non-slip grip. The elevation dial also has a second rotation indicator (with an integrated window) to avoid confusion about where you are on the dial. A tapered eyepiece ring with a zoom factor scale enables an easy verification of your magnification setting while you are aiming, without taking your attention from your target. If you need an instant zoom adjustment, use the included eyepiece throw lever for one-finger operation. To make sure that your personal diopter setting cannot be accidentally bumped off its position, the diopter ring has a locking mechanism. For exceptional strength and durability, the body offers a 34mm maintube. It is shock resistant, fogproof, and waterproof submersible to 33'. - Optical Performance
-
- 3-15x zoom range
- Anti-reflection coated optics
- 50mm objective gathers more light in low-light conditions
- Use and Handling
-
- 0.1 MIL impact point correction
- 15 MIL windage and 34 MIL elevation adjustments
- Construction Details
-
- 34mm single-piece maintube
- Anodized aluminum housing
- Tapered zoom ring makes zoom factor verification easy
- Wide, low-profile, knurled dials provide an easy grip
- Resettable and lockable windage and elevation turrets
- Elevation knob has a second rotation indicator with a window
- Throw lever for a quick and easy control of zoom is included
- Side focus parallax corrector knob
- Locking diopter ring
- Fogproof, shock resistant
- Waterproof, submersible to 33'
- SCR Reticle
-
- First focal plane
- Three fine posts
- Fine milling crosshair with an illuminated center and truncated top
- MIL-based measurements
- Seven brightness levels for use in daylight
- Four brightness levels for use at night
UPC: 000381851123 In the Box Steiner 3-15x50 T5Xi Riflescope (SCR Reticle, Matte Black) - 2 x Lens Caps
- CR2450 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 3-15x50 T5Xi Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner T5Xi Specs | | | Magnification | 3 to 15x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 36' @ 100 yd / 12 m @ 100 m
15x: 7.3' @ 100 yd / 2.5 m @ 100 m | | Exit Pupil Diameter | 3x: 12 mm
15x: 3.4 mm | | Eye Relief | 3.5 to 4.3" / 90 to 109 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | SCR Reticle (First Focal Plane) | | | | Impact Point Correction | 0.1 MIL per Click | | Windage Adjustment | 15 MIL | | Elevation Adjustment | 34 MIL | | Parallax Correction | Yes, 25 yd / 22.9 m to Infinity | | | | Water Resistance | Waterproof to 33' / 10 m | | Fogproof | Yes | | Operating Temperature | -13 to 145°F / -25 to 63°C | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2450 | | Dimensions | Length: 13.1" / 323 mm | | Weight | 29.8 oz / 845 g | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 19.3 x 7.3 x 4.1" |
