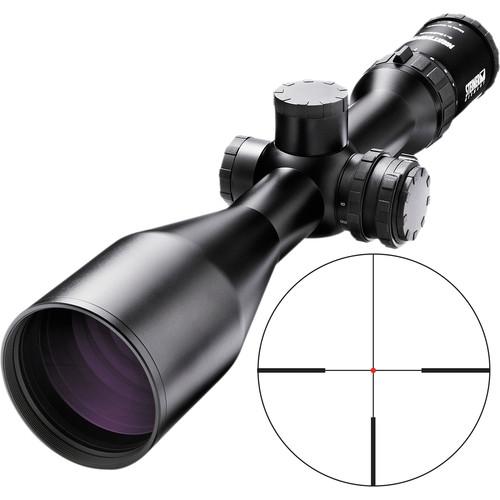

User Manual for Steiner 3-15x56 Nighthunter Extreme Side Focus Riflescope Click to enlarge the picture
Contents of the user manual for the Steiner 3-15x56 Nighthunter Extreme Side Focus
- Product category: Riflescopes Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Riflescopes
|
User manual for the Steiner 3-15x56 Nighthunter Extreme Side Focus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description - We Are Steiner
- Steiner Defining Moments
If you like hunting in low light conditions, consider the 3-15x56 Nighthunter Extreme Riflescope from Steiner. It is optimized to over-perform in twilight and at medium-to-long ranges. The state-of-art optics feature superior-quality optical glass, multiple anti-reflection coatings, and an additional Diamond Night Lens Coating that improves image brightness, resolution, contrast, and clarity in low light conditions. The 56mm objective lens has a wide aperture and delivers bright images. You also do not have to worry about moisture, dust, grease, or dirt abstracting your view because a special Hydrophobic Coating on the lens will protect it.
The illuminated 4A-1 German #4 Reticle is another highlight of this riflescope. It is located in the second focal plane and features three medium posts, a thin crosshair, and a brightly illuminated fine center dot. With its wide gate, it will provide a clear view of your targets. Additionally, the Steiner Smart Illumination has an auto-off function and a feature that stores and re-activates the most recent illumination setting.
The aluminum housing is durable and lightweight and boasts a rugged single-piece main tube. While outside the body is protected with rubber armoring, inside it is filled with nitrogen to provide a fogproof and waterproof performance. Do not worry about accidentally getting it wet or dropping into water because this riflescope is submersible to 6'. To add more convenience, the eyepiece allows for a fast focusing action and has a low profile lever for one-finger operation. Also included are one CR-2032 battery and a neoprene cover. - Optical Performance
-
- 56mm objective
- 3-15x magnification
- Multicoated optics
- Diamond Nigh Lens Coating delivers clarity and contrast at dawn and dusk
- Hydrophobic coating repels water, dirt, dust, and grease
- Eye relief: 3.5-4.3'
- Side focus parallax adjustment
- Field of view: 36-7.5' at 100 yd
- Reticle
-
- Second focal plane
- German #4 Reticle
- Illuminated red fine center point
- Standby setting between each brightness level
- Dedicated illumination knob: variable, tilt sensor, auto Off
- Steiner Smart Illumination: offers memory recall of the last setting and auto-shutoff
- Use and Handling
-
- 1cm impact point correction
- 15 mil windage and 8 mil elevation range
- Construction Details
-
- 30mm main tube
- One-piece machined main tube with rubber armoring
- Weather-sealed resettable to zero windage and elevation turrets
- Fast focus eyepiece
- Nitrogen-filled fogproof
- Waterproof to 6'
UPC: 000381863560 In the Box Steiner 3-15x56 Nighthunter Extreme Side Focus Riflescope (4A-1 German #4 Illuminated Reticle) - CR-2023 Battery
- Neoprene Cover
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 3-15x56 Nighthunter Extreme Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 6356 Specs | | | Magnification | 3 to 15x | | Objective Lens Diameter | 56 mm | | Field of View | 3x: 36' @ 100 yd / 11 m @ 100 m
15x: 7.5' @ 100 yd / 2.3 m @ 100 m | | Exit Pupil Diameter | 3x: 18.6 mm
15x: 3.7 mm | | Eye Relief | 3.5 to 4.3" / 89 to 108 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | 4A-1 German #4 Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Windage Adjustment | 8 MIL | | Elevation Adjustment | 15 MIL | | Parallax Correction | Yes, 164' / 50 m to Infinity | | | | Operating Temperature | -13 to 145°F / -35 to 70°C | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2023 | | Dimensions | Length: 14.2" / 36.1 cm | | Weight | 27.2 oz / 771 g | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 18.2 x 4.4 x 3.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
