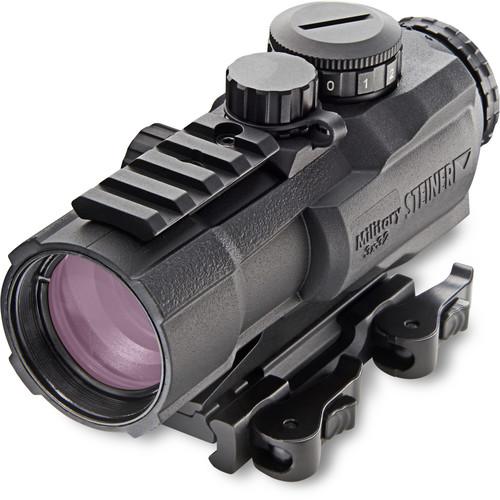

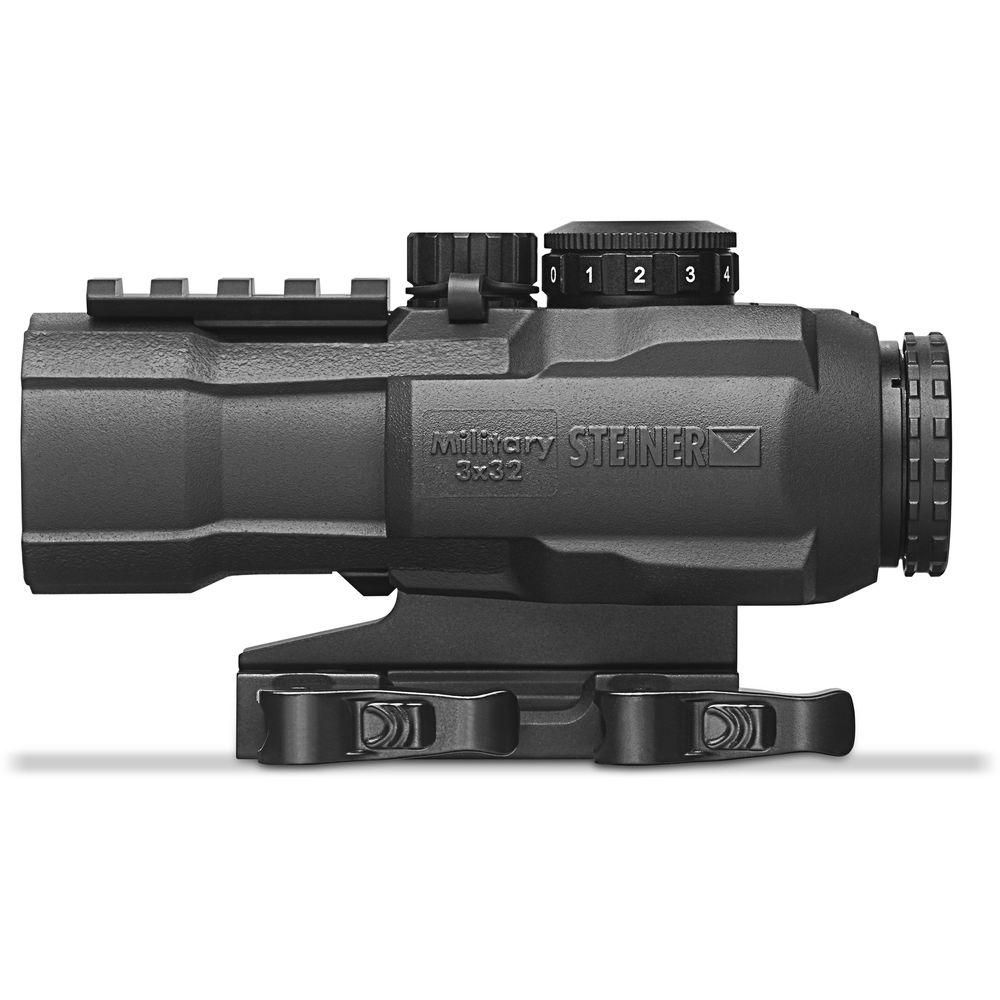

Product description Enhance your tactical training with the Steiner 3x32 M332 Prism Sight. This optic is designed for close quarter combat and features a top Picatinny/Weaver rail for attaching other accessories like lasers, cameras, and flashlights as well as secondary optics like holographic sights. To provide maximum image brightness and clarity in demanding situations, the lenses and BAK4 prisms are multi-coated. To help with precision target acquisitions, the sight features a 7.62 Rapid Dot Reticle. The reticle consists of a T-shaped solid crosshair, a brilliant red dot at the cross, and receding ballistic subtensions on the vertical line below the center. The subtensions provide compensations at 200, 300, 400, 500, 600, and 700 m. The horizontal wing span of the crosshair is equivalent to 10 MRAD, 100cm, or 36 MOA. The reticle's clear, unobtrusive pattern and bright red illumination provide clear views of targets, and allows for easy and accurate target acquisitions in rapidly changing environments. To accommodate variable lighting conditions and personal preferences, this reticle also offers adjustable brightness with 5 day setting and 5 night settings.
Designed to withstand the tough conditions of a battlefield, the housing is rugged and durable. It is made of aluminum alloy and offers a waterproof performance with a submersion rating to 33'. Outfitted with a short, top Picatinny/Weaver rail, the body is also able to carry an additional laser, flashlight, camera, or secondary sight. Enabling you to make windage and elevation compensations, the scope provides 50 MOA windage and elevation ranges with 1/2 MOA clicks. For ease and speed of assembly and detachment, the Picatinny/Weaver rail mount offers a quick release lock with two levers. - Reticle
-
- 7.62 Rapid Dot Reticle
- T-shaped solid crosshair
- Brilliant red center dot
- Receding vertical subtensions for 200, 300, 400, 500, 600, and 700 m
- Horizontal span is equivalent to 10 MRAD, 100cm at 100 m, or 36 MOA
- 5 day and 5 night brightness levels
- Parallax-free at 109 yards
- Optical Performance
-
- 3x magnification
- 32mm objective diameter
- Multi-coated optics and BAK4 prisms
- 28.8' @ 100 yd linear field of view
- Use and Handling
-
- 1/2 MOA impact point correction
- 50 MOA windage and elevation adjustment range
- Construction
-
- Rugged aluminum housing
- Built-in QR Picatinny/Weaver mount with two levers
- Integrated short, top Picatinny/Weaver accessory rail
- Nitrogen-filled fogproof
- Submersible to 33'
UPC: 840229101825 In the Box Steiner 3x32 M332 Illuminated Prism Sight (7.62 Rapid Dot Reticle) - CR-2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 3x32 M332 Illuminated Prism Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner M332 Specs | | | Eye Relief | 686 to 760 mm | | Power Source | 1 x CR2032 | | Mounting | Picatinny / Weaver | | Quick Release | Yes | | | | Magnification | 3 x | | Objective Lens Diameter | 32 mm | | Field of View | 28.9 @ 100 yd9.6 @ m | | Exit Pupil Diameter | 8.7 mm | | | | Impact Point Correction | 1/2 MOA | | Windage Adjustment | 50 MOA | | Elevation Adjustment | 50 MOA | | | | Operating Temperature | -22 to 140°F / -30 to 60°C | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | Dimensions | L: 5.5" / L: 14.0 cm | | Weight | 16.2 oz / 459.3 g |
