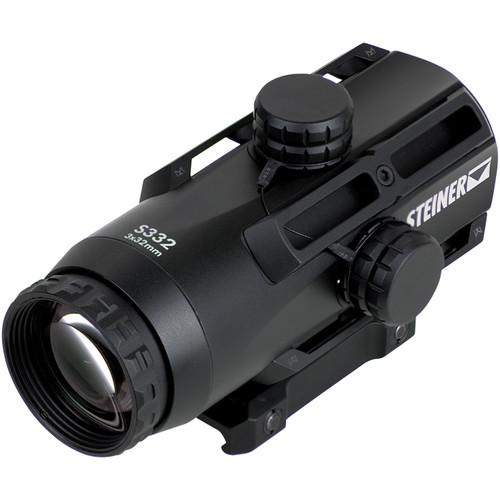

User Manual for Steiner 3x32 S332 Battle Prism Reflex Sight Click to enlarge the picture
Contents of the user manual for the Steiner 3x32 S332 Battle Prism Reflex
- Product category: Red Dot/Holographic Sights Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Red Dot/Holographic Sights
|
User manual for the Steiner 3x32 S332 Battle Prism Reflex contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description Designed for fast target acquisition and engagement, the Steiner Optics 3x32 S332 Battle Prism Reflex Sight is outfitted with a low magnification and a generous objective lens to produce an optic with a wide exit pupil and field of view and a large eye box to make it comfortable and easy to use while helping you maintain your situational awareness. Its partially-illuminated ranging reticle gives you the ability to estimate the range to and size of your targets with the ability to make shot adjustments without having to touch your turret dials. To get your sight zeroed to your rifle, or to make necessary adjustments in the field, the turrets provide 1/10 MRAD impact point correction with a wide ±17.5 MRAD adjustment range.Built to withstand the harshest environments and rough use, the Battle Prism is made with a lightweight and durable aluminum alloy treated with a matte-black scratch-resistant hard-anodized finish. The body is nitrogen-filled and O-ring sealed to be submersible to more than 30 feet and is resistant to internal fogging when moving through extreme changes in temperature and environmental conditions. Ideal for carbine, especially the AR platform, the sight comes with an integrated Picatinny/Weaver Rail mount. - Optical Performance
-
- Low 3x magnification is optimized for close- to mid-range use
- 32mm objective helps to produce a wide exit pupil, and a generous field of view
- Anti-reflection fully multi-coated optics maximize light transmission while improving color representation, contrast, and clarity
- Generous 42.5' field of view at 100 yards
- Reticle Details
-
- P7TR partially-illuminated modified crosshair reticle design
- Red aiming dot quickly draws the eye to the center for faster target acquisition and easier tracking of moving subjects, especially in low or challenging light
- Adjustable brightness allows user to tailor the intensity to the situation, light conditions, and personal preference
- Hash marks and stadia lines on the horizontal and lower vertical axes provide holdover and windage/lead assistance without having to adjust turrets
- Uncluttered upper half reduces obstruction for easier target acquisition and situational awareness
- Runs on one included CR2032 battery
- Use and Handling
-
- Textured dioptric correction dial enables easy focusing
- Capped windage and elevation turrets protect from dust, dirt, mud, and impacts
- Rotary reticle brightness dial with "off" positions between each level is easy and reliable to use in the field under stressful situations with the ability to quickly return to preferred setting
- Precise 1/10 MRAD per click impact point correction enables precision zeroing and adjustment to get on target faster and easier
- Broad ±17.5 MRAD windage and elevation adjustment range allows users to adapt to a wide range of conditions and shooting distances
- Long 80mm eye relief makes it easy to view and use without eye strain while presenting a large eye box that allows the sight to be mounted in more positions on the rail without affecting accuracy or sacrificing field of view
- Exceptional 9.5mm exit pupil ensures a full field of view in all light conditions with a high level of situational awareness
- Parallax is fixed at 328'
- Construction Details
-
- Durable and lightweight aluminum alloy housing
- Scratch-resistant hard-anodized matte-black finish
- Sealed to be waterproof and submersible to 33'
- Nitrogen-filled to resist internal fogging when moving between extreme changes in temperature and environmental conditions
- Integrated Picatinny/Weaver Rail mount
- Broad -22 to 140°F operating temperature range
UPC: 840229104444 In the Box Steiner 3x32 S332 Battle Prism Reflex Sight (P7TR Mil Reticle) CR2032 Battery Limited Lifetime Warranty Limited 3-Year Warranty on Electronics Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 3x32 S332 Battle Prism Reflex Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner S332 Specs | | | Reticle | Crosshair-Dot | | Reticle Color | Red | | Eye Relief | 80 mm | | Power Source | 1 x CR2032 | | Mounting | Picatinny / Weaver | | Quick Release | No | | | | Magnification | 3x | | Objective Lens Diameter | 32 mm | | Field of View | 42.5' @ 100 yd / 14.1 m @ 100 m | | Exit Pupil Diameter | 9.5 mm | | Parallax Setting | 109.4 yd / 100 m | | Anti-Reflective Coatings | Fully Multi-Coated | | | | Impact Point Correction | 0.1 MRAD | | Windage Adjustment |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
