User Manual for Steiner 4-16x56 H4Xi Riflescope Click to enlarge the picture
Contents of the user manual for the Steiner 4-16x56 H4Xi Riflescope
- Product category: Riflescopes Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Riflescopes
 |
User manual for the Steiner 4-16x56 H4Xi Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|

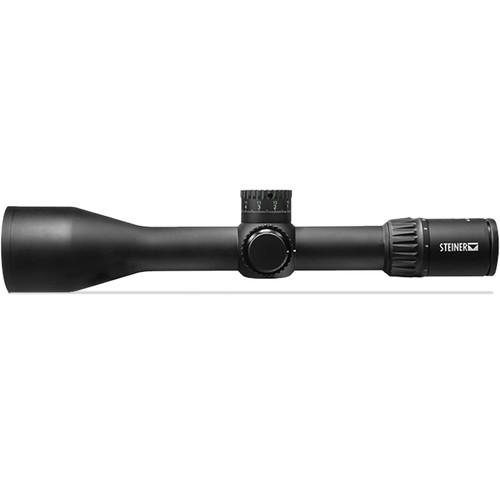

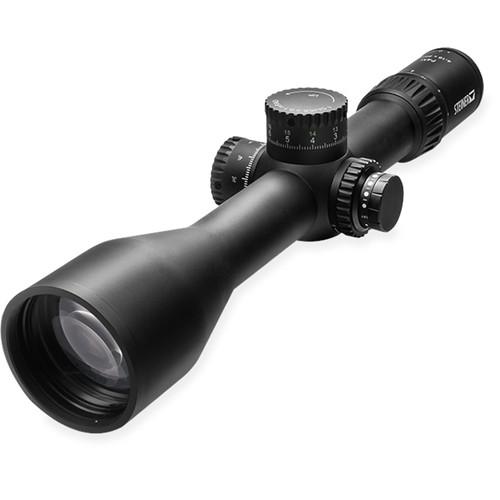

Product description Steiner's 4-16x56 H4Xi Riflescope combines strength and durability with a 4-16x zoom optical system and good low-light performance, thanks to the extra-wide 56mm objective. Its precision optics feature high-contrast elements for delivering high image clarity and definition, and anti-reflective coatings for increasing brightness and reducing glare. Another highlight is the illuminated Plex S1 reticle. This lies in the second image plane and provides three thin posts in the upper half and a fully illuminated crosshair with a vertical line extending to the end of the lower half. Under the center, the vertical line offers markings for ballistic and wind compensation. For matching its brightness to environmental factors and to your preferences, the illumination has a precision brightness control. Aiming is parallax-free from 54 yd to infinity, and windage and elevation offer 33 and 22 MOA ranges, respectively, with 1/4 MOA clicks.
The anodized aluminum housing is filled with nitrogen and sealed for fog and waterproof performance and endures temporary submersions to 6.5'. It is built around a 30mm maintube and has capped low-profile windage and elevation turrets and an eyepiece with a knurled zoom ring. - Optical Performance
-
- 4-16x optical system
- High-contrast optics
- 56mm, extra-wide objective is optimized to perform in low light
- Anti-reflection coatings improve image brightness and reduce glare
- 13-3 yards at 100 yards linear field of view
- Parallax-free from 54 yards to infinity
- Use and Handling
-
- 1/4 MOA impact point correction
- 33 MOA windage and 22 MOA elevation ranges
- +2 to -3 diopter correction
- 3.8" eye relief
- Construction Details
-
- Aluminum housing with anodized finish
- 30mm maintube diameter
- Capped low-profile turrets
- Accommodates CR2450 battery
- Nitrogen-filled, fogproof
- Waterproof, submersible to 6.5'
- Plex S1 Reticle
-
- 2nd focal plane
- Three thin posts in upper half of the reticle
- Fully illuminated crosshair with a tree of ballistic and wind marks under the center
- Illuminated vertical lower post
UPC: 000381852519 In the Box Steiner 4-16x56 H4Xi Riflescope (Illuminated Plex S1 Reticle, Matte Black) - 2 x Lens Caps
- CR2450 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 4-16x56 H4Xi Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner H4Xi Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 56 mm | | Field of View | 4x: 13' @ 100 yd / 13 m @ 100 m
16x: 3' @ 100 yd / 7.9 m @ 100 m | | Exit Pupil Diameter | 4x: 12 mm
16x: 4.6 mm | | Eye Relief | 3.8" / 97 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | Plex S1 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 33 MOA | | Elevation Adjustment | 22 MOA | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Water Resistance | Waterproof to 6.5' / 2 m | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | -13 to 149°F / -25 to 65°C | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2450 | | Dimensions | Length: 14.5" / 36.8 cm | | Weight | 25 oz / 708.7 g | | | | Package Weight | 2.68 lb | | Box Dimensions (LxWxH) | 16.85 x 4.95 x 4.15" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
