User Manual for Steiner 4-20x50 GS3 Riflescope Click to enlarge the picture
Contents of the user manual for the Steiner 4-20x50 GS3 Riflescope
- Product category: Riflescopes Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Riflescopes
 |
User manual for the Steiner 4-20x50 GS3 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description - We Are Steiner
- Steiner Defining Moments

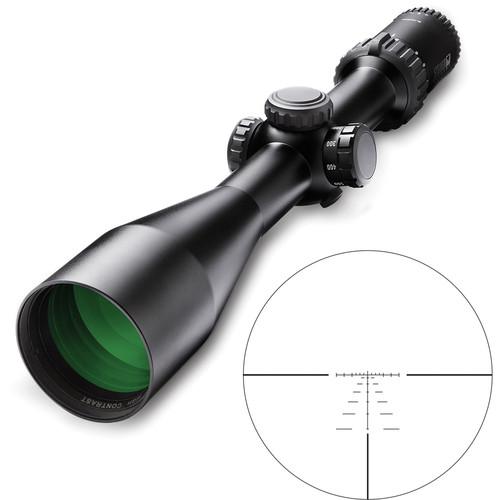

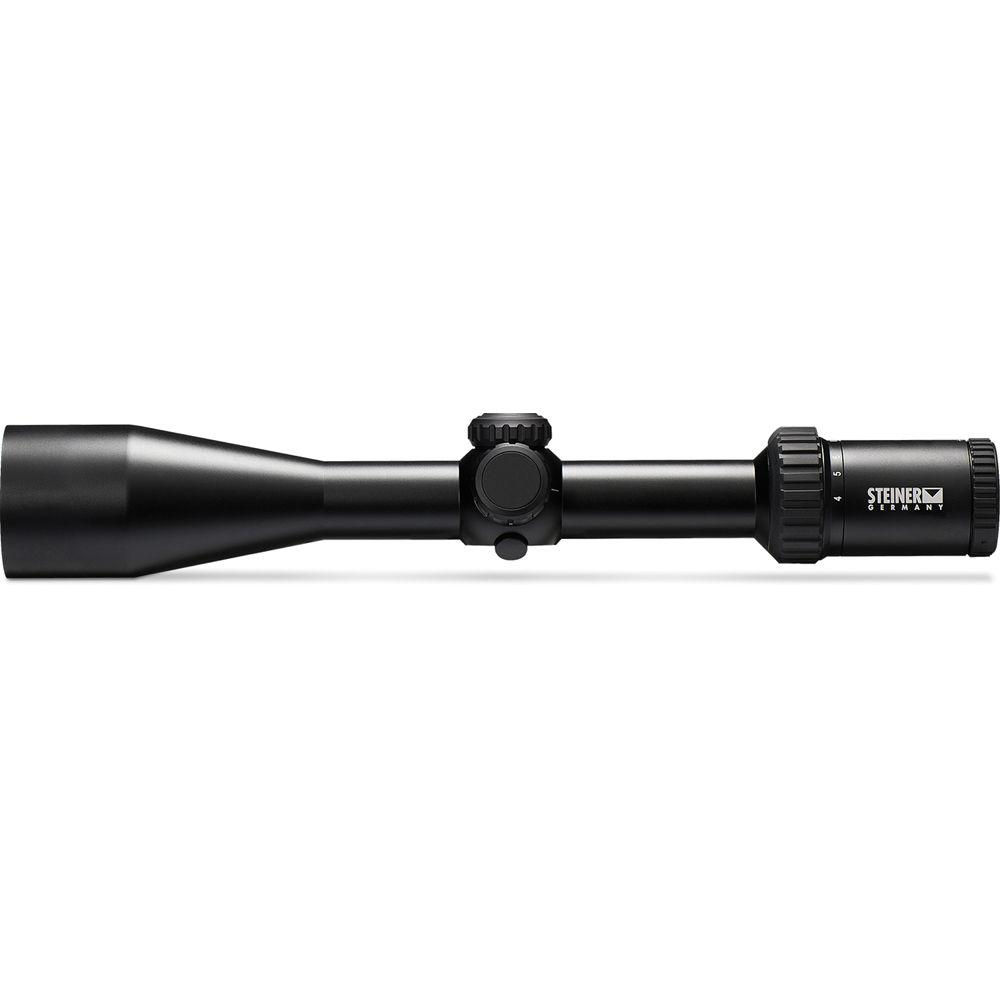

This 4-20x50 GS3 Riflescope with S7 Reticle from Steiner features Color Adjusted Transmission (CAT) lens coatings that maximize image contrast at the peak of the human eye sensitivity range. The improved contrast helps you separate your game from the background and make accurate shots. This riflescope also features a 4-20x zoom for medium to long range targeting and a wide 50mm objective diameter for gathering more light and improving visibility in low light conditions that can be found at dusk and dawn. To help you compensate for a wind drift and bullet drop, there are a 40 MOA windage adjustments and a 60 MOA elevation adjustments with a 1/4 MOA point impact correction. The scope is also parallax-free at a 100 yd.

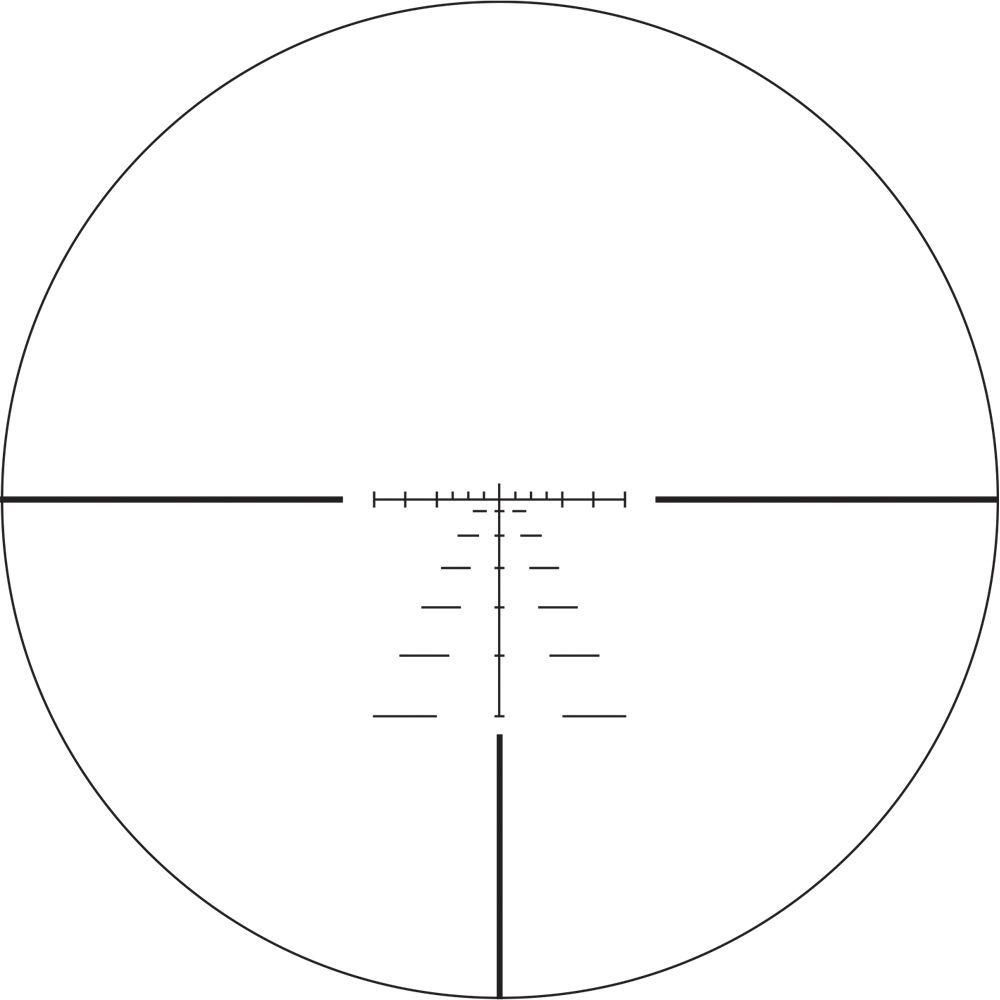

The Steiner Plex S7 Reticle features ballistic lines to help you determine holdover distances and help compensate for crosswinds. The hash marks below the center help you compensate for a bullet drop at ranges of 200, 300, 400, 500, 600, and 700 yards. The reticle also features a series of horizontal lines under the crosshair, which help you to compensate for 5 and 10 mph cross winds. If the wind is 5 mph, use the inner edge of the line. For a 10 mph wind, use the outer edge to compensate for wind drift.
To enable you to use and store this riflescope in a wide range of environmental conditions, the housing is made from matte black anodized aluminum and offers protection against recoil shock, water immersion, and fogging of the lenses. While the windage and elevation knobs are resettable and capped, the knurled diopter and zoom rings allow easy adjustments. The zoom ring also has a low profile fin for easy one finger adjustments. Also included with the scope is a lens cloth. Steiner Plex S7 Reticle -
- Crosshair with bullet drop and wind drift subtensions
- Hash marks account for bullet drop at ranges of 200, 300, 400, 500, 600, and 700 yd
- Wind drift lines account for 5-10 mph wind
- Reticle is in the second focal plane
Optical Performance -
- Objective diameter: 50mm
- Magnification: 4 - 20x
- Linear field of view: 25.8 to 5.5' @ 100 yd
- CAT coatings maximize contrast at the peak of human eye's sensitivity
- Parallax correction range: 164' to infinity
- Eye relief: 3.5 to 4.25"
Use and Handling -
- 1/4 MOA per click impact point correction
- 40 MOA windage adjustment range
- 60 MOA elevation adjustment ranges
- Capped resettable adjustment knobs
Construction Details -
- Main tube diameter: 30mm
- Anodized aluminum construction
- Knurled zoom ring has a low profile fin for easy adjustments
- Knurled diopter ring
- Nitrogen-filled fogproof
- Shock resistant
- Waterproof
UPC: 000381850072 In the Box Steiner 4-20x50 GS3 Riflescope (Steiner Plex S7 Reticle) - Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 4-20x50 GS3 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner GS3 Specs | | | Magnification | 4 to 20x | | Objective Lens Diameter | 50 mm | | Field of View | 4x: 25.8' @ 100 yd / 7.5 m @ 100 m
20x: 5.5' @ 100 yd / 1.6 m @ 100 m | | Exit Pupil Diameter | 4x: 11 mm
20x: 2.5 mm | | Eye Relief | 3.5 to 4.2" / 88.9 to 108 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | Steiner Plex S7 Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 64 MOA | | Parallax Correction | Yes, 164' / 50 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | -13 to 149°F / -25 to 65°C | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 15" / 36.1 cm | | Weight | 22 oz / 772 g | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 18.4 x 4.3 x 3.6" |
