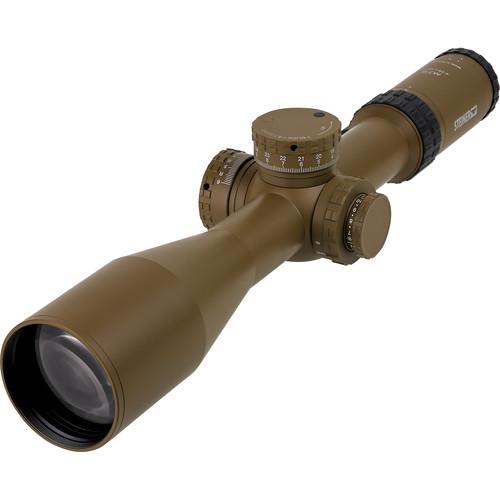

User Manual for Steiner 4-28x56 M7Xi Riflescope Click to enlarge the picture
Contents of the user manual for the Steiner 4-28x56 M7Xi Riflescope
- Product category: Riflescopes Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Riflescopes
|
User manual for the Steiner 4-28x56 M7Xi Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description Offering precision and reliability for the most demanding shooters, the Steiner 4-28x56 M7Xi Riflescope is designed for long-range accuracy and built to withstand the rigors of the field. Its 4-28x magnification brings distant targets into sharp focus, and the 34mm maintube permits greater windage and elevation adjustment than narrower scopes. Its field of view is a generous 26.9-4.2' at 100 yards. The big 56mm objective lens and fully multi-coated optics combine for optimal light transmission, giving you a sharp, clear picture even in lower light. The aluminum-alloy housing is sealed so tightly that the M7Xi is submersible down to 33'.
The Tremor 3 reticle offers quick range estimation, subtensions to 1/10 MRAD, and patented wind dots for fast and accurate wind holds. Low-profile turrets operate at 1/10 MRAD per click.The M7Xi is nitrogen filled for fogproof performance, shockproof, and operates in temperatures from -40°F to 160°F. - Optical Performance
-
- 4-28x zoom range
- Broadband anti-reflection coatings increase image brightness
- 56mm objective gathers optimal light in low-light conditions
- Use and Handling
-
- 0.1 MRAD per click impact point correction
- 26 MRAD elevation, 6 MRAD windage adjustment range
- 3.5" eye relief
- Construction Details
-
- 34mm single-piece maintube
- Aluminum-alloy housing
- Low-profile turrets
- Fog and shockproof
- Waterproof, submersible to 33'
- Tremor 3 Illuminated Reticle
-
- First focal plane
- Thin densely populated crosshair
- Drop-down grid of milling points
- Edge-to-edge horizontal lines in the lower half of the field
- Seven brightness levels for use in daylight
- Four brightness levels for use at night
UPC: 840229104314 In the Box Steiner 4-28x56 M7Xi Riflescope (Illuminated Tremor 3 Reticle, Coyote Brown) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 4-28x56 M7Xi Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner M7Xi Specs | | | Magnification | 4 to 28x | | Objective Lens Diameter | 56 mm | | Field of View | 4x: 26.9' @ 100 yd / 8.9 m @ 100 m
28x: 4.2' @ 100 yd / 1.4 m @ 100 m | | Exit Pupil Diameter | 4x: 14 mm
28x: 2 mm | | Eye Relief | 3.5" / 8.9 cm | | | | Reticle Type | Tremor 3 Reticle | | Illumination | Illuminated | | Illuminated Color | Red | | Brightness Settings | Adjustable Brightness (11 Levels) | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 6 MRAD | | Elevation Adjustment | 26 MRAD | | | | Water Resistance | Waterproof | | Fogproof | Yes | | Operating Temperature | -40 to 159°F / -40 to 71°C | | | | Maintube Diameter | 34 mm | | Battery | Reticle: 1 x CR2032 | | Dimensions | Length: 15.2" / 38.6 cm | | Weight | 33.5 oz / 949.7 g |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
