User Manual for Steiner 5-25x56 M5Xi Riflescope Click to enlarge the picture
Contents of the user manual for the Steiner 5-25x56 M5Xi Riflescope
- Product category: Riflescopes Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Riflescopes
 |
User manual for the Steiner 5-25x56 M5Xi Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|

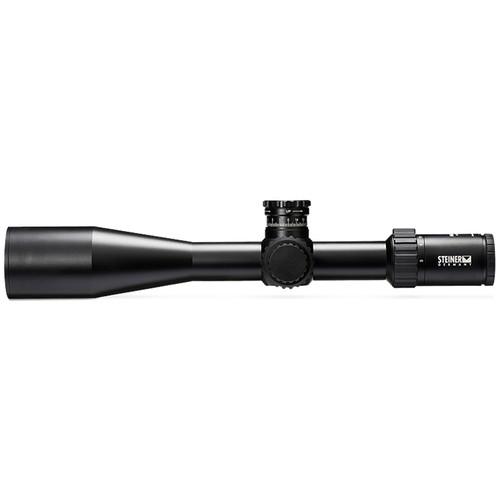

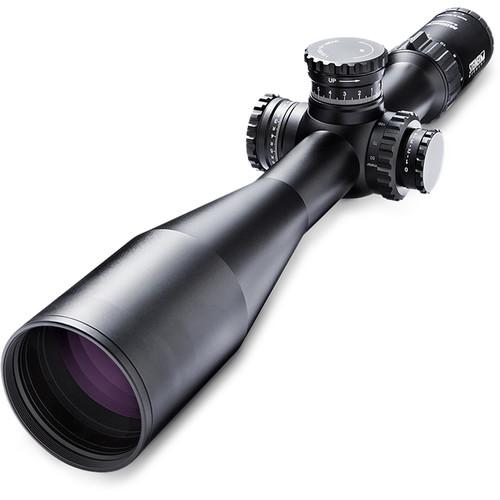

Product description Designed specifically to address the needs of professionals, the M5Xi Military 5-25x56 Riflescope from Steiner embodies world-class engineering, adheres to strict specification standards, and delivers shooting precision on the battlefield or in competitions. The optical system offers broadband anti-reflection coatings for improving image brightness throughout the day, a 56mm objective for gathering more light in very low light conditions, and a 5-25x zoom for long-range target acquisitions. Another highlight is the first focal plane Horus Tremor 3 reticle, which consists of a densely populated crosshair and a drop-down grid of milling points extending to the bottom of the lower field. To provide clear visibility of the reticle's pattern in various lighting conditions, the illumination system offers a rotary digital control with multiple settings. To correct trajectory errors due to wind and ballistic drop, the windage and elevation gearbox offers generous adjustment ranges with 0.1 MIL increments. Making these corrections is a quick and easy process, thanks to the knurled turret knobs and precisely graduated scales. The elevation turret features a DuoScale design with a second rotation scale that is hidden when inactive. Both turrets are resettable and have hard stops at zero positions to prevent going over the range. For exceptional strength and durability, the body offers a 34mm maintube. It is shock resistant, fogproof, and waterproof submersible to 33'. - Optical Performance
-
- 5-25x zoom range
- Broadband anti-reflection coatings increase image brightness
- 56mm objective gathers more light in low-light conditions
- Use and Handling
-
- 0.1 MIL per click impact point correction
- 12 MIL windage and 26 MIL elevation adjustments
- 3.5-4.3" eye relief
- Construction Details
-
- 34mm single-piece maintube
- Anodized aluminum housing

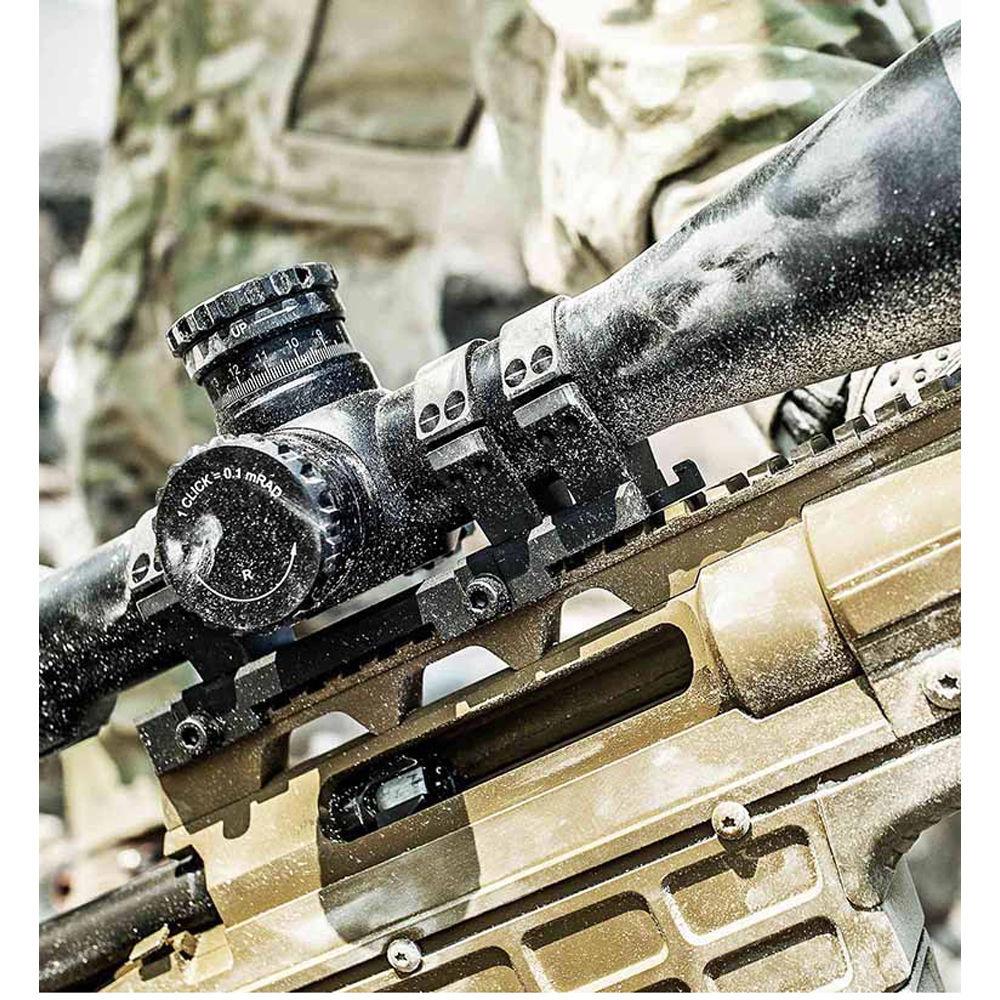

- Wide knurled dials provide an easy grip
- Resettable and lockable windage and elevation turrets
- DuoScale elevation knob has a hidden second rotation indicator
- Side focus parallax corrector knob
- Fogproof and shock resistant
- Waterproof, submersible to 33'
- Horus Tremor 3 Illuminated Reticle
-
- First focal plane
- Thin densely populated crosshair
- Drop-down grid of milling points
- Edge-to-edge horizontal lines in the lower half of the field
- Seven brightness levels for use in daylight
- Four brightness levels for use at night
In the Box Steiner 5-25x56 M5Xi Riflescope (Horus Tremor 3 Reticle, Coyote Brown) - 2 x Lens Caps
- CR2450 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 5-25x56 M5Xi Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner M5Xi Specs | | | Magnification | 5 to 25x | | Objective Lens Diameter | 56 mm | | Field of View | 5x: 23.6' @ 100 yd / 7.8 m @ 100 m
25x: 4.6' @ 100 yd / 1.5 m @ 100 m | | Exit Pupil Diameter | 5x: 9.8 mm
25x: 2.2 mm | | Eye Relief | 3.5 to 4.3" / 8.9 to 10.9 cm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | Tremor 3 Reticle (First Focal Plane) | | Illumination | Illuminated | | Brightness Settings | Adjustable Brightness (11 Levels) | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 12 MRAD | | Elevation Adjustment | 26 MRAD | | Parallax Correction | Yes, 164' / 50 m to Infinity | | | | Water Resistance | Waterproof to 33' / 10.1 m | | Fogproof | Yes | | Operating Temperature | -13 to 145°F / -25 to 62°C | | | | Maintube Diameter | 34 mm | | Battery | Reticle: 1 x CR2450 | | Dimensions | Length: 16.6" / 42.2 cm | | Weight | 36.3 oz / 1029.1 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
