User Manual for Steiner 6x40 ICS Innovative Combat Sight Click to enlarge the picture
Contents of the user manual for the Steiner 6x40 ICS Innovative Combat Sight
- Product category: Riflescopes Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Riflescopes
|
User manual for the Steiner 6x40 ICS Innovative Combat Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|

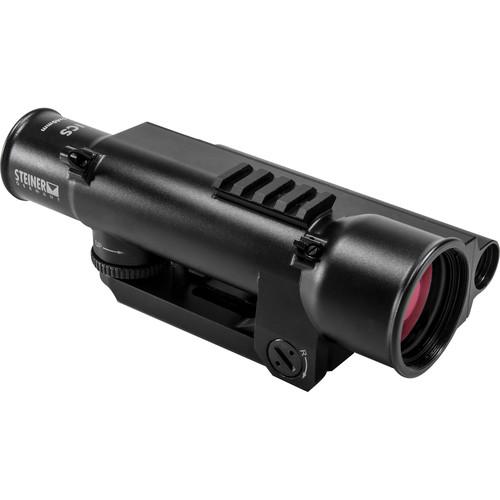

Product description When the terrain changes as fast as the engagement range there's no time for guesswork or hesitation, and Steiner Optics makes fluid transition from CQB to ranged use easy with the 6x40 ICS Innovative Combat Sight. This multi-ranged use sight is a 6x40 riflescope for long-range use and features a built-in IR laser rangefinder and inclinometer that measures the range and angle to the target and, using the user-defined ammunition ballistic characteristics being employed, calculates the ballistic drop. The red-dot aiming point is automatically adjusted according to the calculated BDC to put you on-target quickly - ranging to a target at 550yd takes about one second, while a target at 765yd takes about two seconds. A remote pressure pad switch is included for fast and safe system activation without sacrificing your combat grip.To facilitate rapid transition from long-range to short, iron sights are integrated on the right side of the housing and set at a 45° angle. A simple rotation on the grip is all that is needed to change from the primary optic to the familiar iron sights. A short rail on the top of the sight allows for accessories or transitional optics such as holographic or dot sights to be mounted without interring with the magnified optic. The ICS features 0.5 MOA per click impact point correction and a ±60 MOA windage and elevation adjustment range.Complementing the versatile usability of the sight is a lightweight aluminum alloy housing with a corrosion and scratch-resistant matte-black anodized finish. The housing is nitrogen filled for fogproof performance with wide temperature changes, and O-ring sealed to make it submersible to as much as 32'. A broad -40 to 149°F operating temperature enables the sight to work in extreme weather and conditions. The ICS comes with a Picatinny/Weaver quick-release rail mount and it runs on a single CR123A battery. - Optical Performance
-
- 6x magnification
- 40mm objective lens
- Anti-reflection fully multicoated optics
- 21' field of view at 100 yards
- 4° angle of view
- Intelligent BDC Calculator
-
- Class 1 eye safe IR laser, peak wavelength: 905nm
- Integrated ranging laser measures distance to target
- Built-in inclinometer calculates angle to target
- User enters ammunition specs and software calculates ballistic properties
- Software adjusts aiming dot placement based on range, angle and user-defined round ballistics
- Ranging time: to target at 550yd / 500 m is 1 second, to target at 765 yd / 700 m is 2 seconds
- Remote pressure pad switch included for activating system while maintaining safe grip on weapon
- Use and Handling
-
- Red aiming dot
- Variable-intensity with four selectable levels
- 0.5 MOA impact point correction
- ±60 MOA windage and elevation adjustment range
- Integrated iron sights on the right side of housing set at 45° angle for fast transition from CQB to ranged use
- Fixed parallax at 100m
- Construction Details
-
- Lightweight aluminum housing
- Scratch and corrosion-resistant matte-black anodized finish
- Nitrogen-filled, fogproof and waterproof to 32'
- Integrated quick-release Picatinny/Weaver rail mount
- Accessory Picatinny/Weaver rail on top
- Wide -40 to 149°F operating temperature
- Runs on one CR123A battery
UPC: 840229101474 In the Box Steiner 6x40 ICS Innovative Combat Sight (Red Dot Reticle) Cleaning Cloth CR123A Battery Remote Pressure Pad Switch Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 6x40 ICS Innovative Combat Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 8790 Specs | Magnification | 6x | | Objective Lens Diameter | 40mm | | Main-Tube Diameter | N/A | | Reticle | Red dot | | Laser | Class 1 eye safe IR
Peak wavelength: 905 nm | | Angle of View | 4°, actual | | Field of View | 21' @ 100 yd / 7.0 m @ 100 m | | Parallax Correction | Fixed at 328' / 100 m | | Eye Relief | 3.1" / 8.0 cm | | Exit Pupil Diameter | 6.7 mm | | Impact Point Correction | 0.5 MOA per click | | Windage/Elevation Adjustment | ±60 MOA | | Weatherproofing | Nitrogen-filled, water and fogproof
Waterproof tested to 32' / 10 m | | Battery | 1 x CR123A | | Environmental | Operating temperature: -13 to 149°F / -25 to 65°C
Storage temperature: -40 to 185°F / -40 to 85°C | | Dimensions | 7.9 x 3.0 x 2.9" / 20.0 x 7.6 x 7.3 mm | | Weight | 27.9 oz / 790 g | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 9.2 x 4.1 x 3.9" |
