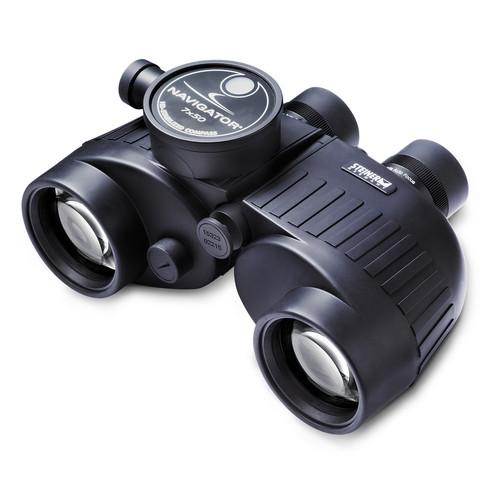

User Manual for Steiner 7x50 C Navigator Pro Binocular with Compass Click to enlarge the picture
Contents of the user manual for the Steiner 7x50 C Navigator Pro Binocular
- Product category: Binoculars Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Binoculars
|
User manual for the Steiner 7x50 C Navigator Pro Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More vaawqsur Specifically engineered and built to withstand the rigors of life on the water, Steiner's 7x50 C Navigator Pro Binocular with Compass produce bright and clear images, reduce the disorientation commonly experienced when using optics in marine environments, and includes a precise navigation tool. An integrated compass features bearing marks that don't interfere with the field of view, and is stabilized to increase visibility during rolling seas. The compass is backlit for easy viewing in all lighting conditions and the brightness adjustment is easily made, even while holding the binocular one-handed. Its large objectives gives the binocular high light-transmittance for enhanced low-light performance, and a large exit pupil which helps to reduce the effects of rough and rolling seas - which can cause disorientation during observation. The porro prism optical design combined with the fully multicoated optics provides high-contrast images with true color representation and long depth of field.Each ocular is individually focused for precise customization for each user and will maintain that focus from 65' to infinity - so users can concentrate on the views, not re-focusing. To hold up to the elements, the housing is made of temperature and impact-resistant Makrolon polycarbonate. NBR rubber armoring on the exterior is resistant to oil, acid, and weathering, as well as providing a slip-resistant grip in cold or wet conditions. The optical tubes are nitrogen-filled for fogproof performance, and the Navigator Pro is waterproof to 16'. - Optical Performance
-
- 7x magnification
- 50mm objective lenses
- Porro prism optical configuration
- Anti-reflection fully multicoated optics produce bright, high-contrast images with true color representation
- Porro prisms produce higher depth of field versus roof prisms
- Large objectives increase the low-performance
- 370' field of view at 1000 yd
- Use and Handling
-
- Integrated back-lit compass with bearing marks and stabilized to increase visibility in rolling seas
- Autofocus system: Individually focused oculars maintain consistent focus from 65' to infinity
- Large 7.1mm exit pupil reduces disorientation caused by rolling/rough seas
- Closed-bridge housing configuration
- Twist-up rubber eyecups
- Construction Details
-
- Temperature and impact-resistant Makrolon polycarbonate housing
- Floating prism mounting system protects the prisms' collimation in the event of drops or impacts
- Slip-resistant NBR rubber exterior armoring is resistant to oil, acid, and weathering
- Nitrogen-filled optical tubes for fogproof performance, and waterproof to 16' (5 m)
- Two-way pressure valve enables nitrogen to be added at anytime during the life of the binocular
- Wide operating temperature range from -4 to 140°F (-20 to 60°C)
UPC: 840229100712 In the Box Steiner 7x50 C Navigator Pro Binocular with Compass Carry Bag Rain Guard 2 x Objective Lens Caps Neoprene Neck Strap Limited 10-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 vaawqsur A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 1.3mbvaawqsur Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 7x50 C Navigator Pro Binocular with Compass in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 7155 Specs | Prism Type | Porro | | Magnification | 7 x | | Objective Lens Diameter | 50 mm | | Angle of View | 7.1° (Actual) | | Field of View | 372.7' @ 1000 yd / 124.2 m @ 1000 m | | Minimum Focus Distance | 65.6' / 20 m | | Exit Pupil Diameter | 7.1 mm | | Dioptric Correction | None | | Focus Type | Individual | | Tripod Mount | None | | Dimensions | 8.2 x 5.5 x 3.7" / 20.7 x 14.0 x 9.5 cm | | Weight | 39.15 oz / 1110 g | | | | Package Weight | 4.335 lb | | Box Dimensions (LxWxH) | 10.85 x 9.05 x 4.85" |
