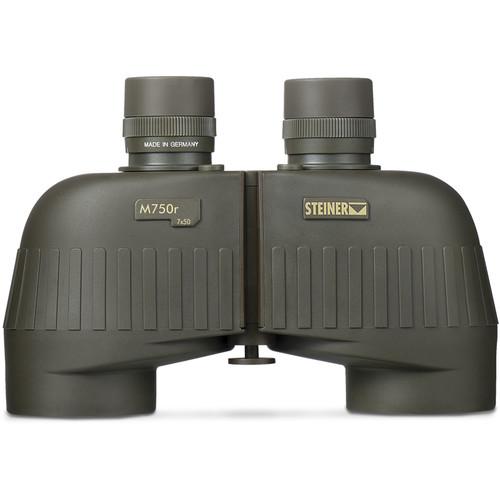

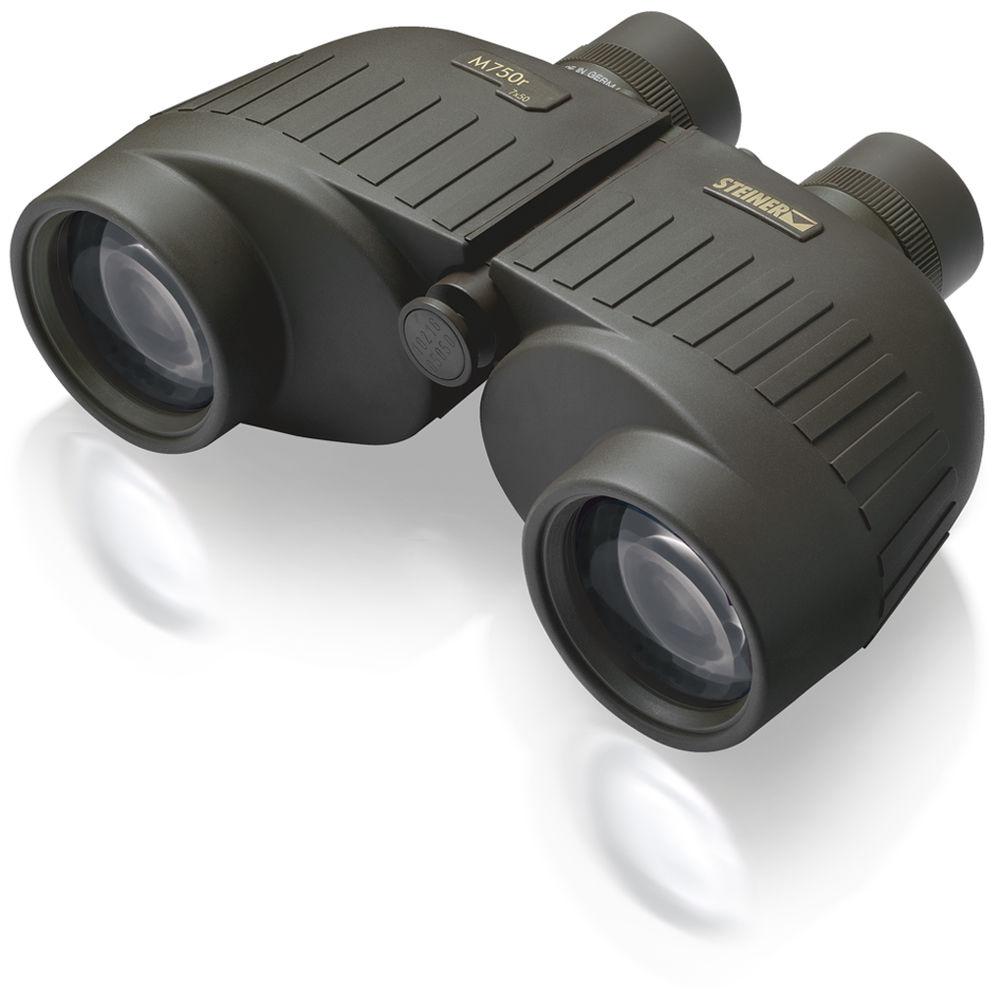

User Manual for Steiner 7x50 M750r Military Binocular Click to enlarge the picture
Contents of the user manual for the Steiner 7x50 M750r Military Binocular
- Product category: Binoculars Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Binoculars
 |
User manual for the Steiner 7x50 M750r Military Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Designed for mid-range observations—especially in low light—by law enforcement, military, and tactical professionals, and engineered to exacting military specifications for outstanding performance in challenging environmental conditions, the Steiner Optics 7x50 M750r Military Binocular is engineered to be an invaluable addition to any kit. This model comes with an in-view non-illuminated Mil-scale reticle specifically designed to enable fast and easy estimation of the range to, and size of, subjects such as boats, buoys, game animals, and landmarks.This binocular's optics are fully multi-coated to maximize light transmission through the light path, and its 7x magnification and 50mm objectives work together to produce an impressive 7.1mm exit pupil that, when combined with the generous field of view, present the user with an immersive observational experience defined by bright and clear high-contrast views and accurate color rendition from the pre-dawn hours to well past sunset. To help adapt to rapidly changing situations, Steiner outfitted the binocular with their Sports-Auto-Focusing System, which allows the user to focus each eyepiece just one time and eliminates the need to refocus again regardless of how near or far the subject is—or if it is moving.Complementing the optical performance are construction details that allow this binocular to withstand the rigors of the outdoors. These details begin with a chassis that is made of a lightweight and impact-resistant Makrolon polycarbonate material that is wrapped in an oil, petroleum, and chemical-resistant NBR synthetic rubber armor that offers improved grip security, especially in cold and wet weather. Its optical tubes are nitrogen filled and O-ring sealed to be waterproof to a depth of 16 feet and resistant to internal fogging when moving through extreme temperature changes and environmental conditions.In a blind, on the boat, at the range, during surveillance, or in critical tactical engagements, the M750r binocular performs to a professional's high standards in all weather and environmental conditions. - Optical Performance
-
- Moderate 7x magnification brings subjects in close for observation while ensuring a wide exit pupil for low-light use
- Large 50mm objective lens diameter draws in copious amounts of light to boost its light-gathering ability in challenging conditions such as at dawn and dusk, or in dense fog
- Traditional Porro prism optical path produces a rich depth of field to more easily discern the relative distances between objects in the field of view
- Floating prism mounting system helps to absorb impacts to avoid damage and maintain optical path collimation
- Anti-reflection fully multi-coated optics maximize light transmission, improve color rendition accuracy, enhance contrast, and improve clarity
- Generous 392' field of view at 1000 yards

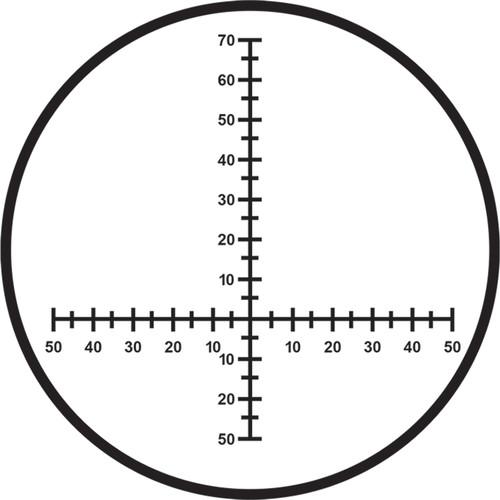

- Reticle
-
- Uses hash marks and stadia lines with clear numbers every 10mm for estimating range to, and size of, subjects such as game animals, boats, buoys, and people
- Modified crosshair style places horizontal axis lower in the field of view to give more room on the upper vertical axis
- Not recommended for estimating ballistic drop compensation (BDC)
- Use and Handling
-
- Individually focusing eyepieces enable precise tack-sharp views
- Fold-down rubber eyecups for comfortable use with or without eyewear
- 56-74mm interpupillary distance adjustment range
- ±5 dioptric correction enables user to compensate for optical prescription for sharper views
- Long 20.2mm eye relief gives room for the user to back off the eyepiece and reduce eyestrain and increase comfort, especially during long-duration glassing sessions
- Wide 7.1mm exit pupil is optimized for low-light conditions to completely cover pupils when they are fully dilated to avoid vignetting of the view
Sports-Auto-Focusing System:- Individual eyepiece focusing
- Requires only one initial individual focus adjustment per user
- Eliminates the need for refocusing for targets at ranges from 22 yards (20m) to infinity
- Enables the tracking of fast targets without the need to refocus
- Construction Details
-
- Built to exacting military standard specifications with tight tolerances
- Lightweight and impact-resistant Makrolon polycarbonate chassis
- Nitrogen filled and O-ring sealed to be waterproof to a depth of 16' (5m) and resistant to internal fogging when moving through extreme temperature changes and environmental conditions
- Oil, petroleum, and chemical-resistant NBR synthetic rubber armor offers improved grip security, especially in cold and wet weather
- Raised ridges on armor improve grip security and stability
- Weight: 37 ounces
UPC: 840229102105 In the Box Steiner 7x50 M750r Military Binocular (Mil Reticle) Neck Strap One-Piece Ocular Rainguard 2 x Objective Lens Caps Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 7x50 M750r Military Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner M750r Specs | Prism Type | Porro | | Magnification | 7 x | | Objective Lens Diameter | 50 mm | | Angle of View | 7.5° (Actual) | | Field of View | 392.0' @ 1000 yd / 130.1 m @ 1000 m | | Minimum Focus Distance | 66' / 20.1 m | | Exit Pupil Diameter | 7.1 mm | | Eye Relief | 20.2 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Dioptric Correction | ±5 | | Focus Type | Individual | | Tripod Mount | None | | Dimensions | 8.1 x 5.5 x 3.0" / 20.6 x 14.0 x 7.6 cm | | Weight | 36.9 oz / 1046.1 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
