Product description The B&H Binocular Buying Guide Read More - We Are Steiner
- Commander Series

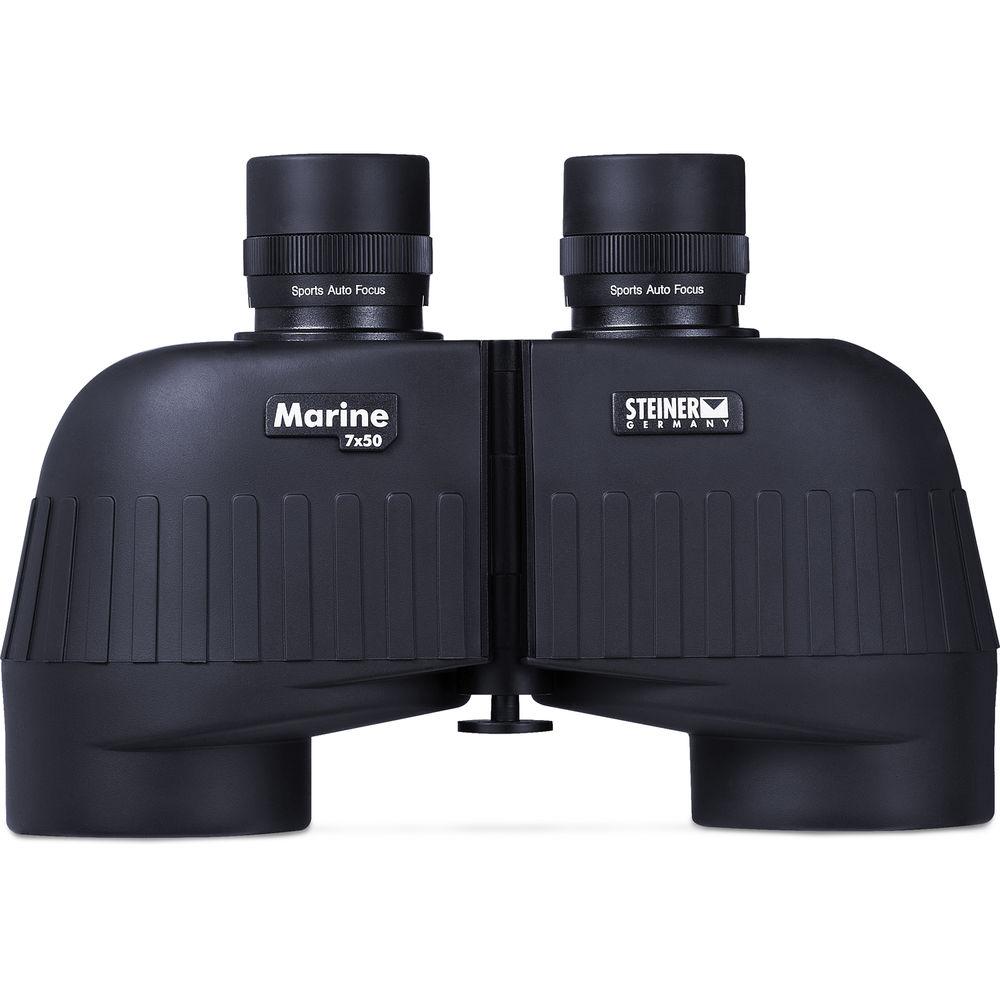

Designed with a moderate magnification and large objectives, the Steiner Optics 7x50 Marine Binocular is an ideal choice for hunters, outdoor enthusiasts, and boaters. The power and aperture combination translates to a generous field of view and an impressive exit pupil that helps to mitigate the disorientation common when looking through binoculars on rolling or rough water, or the appearance of the visible hand-shake associated with high-power optics. Its traditional Porro prism optical path provides a rich depth of field to clearly see the difference between near and distant objects, while a proprietary floating prism system absorbs the force from drops or knocks to protect the prisms and their alignment.For ease-of-use the Marine is outfitted with Steiner's Sports-Auto-Focus system that enables each eyepiece to be individually focused to ensure the sharpest views possible. The chassis is made of Makrolon polycarbonate which is corrosion, impact and temperature-resistant, and the optical tubes are nitrogen filled and O-ring sealed to be water and fogproof even in extreme weather conditions. Whether in the wild outdoors or on the rolling seas, the Marine binocular will be your constant companion for all your glassing needs. - Optical Performance
-
- Moderate 7x magnification
- Large 50mm objective lenses
- Traditional Porro prism optical path provides a rich depth of field versus similar roof prisms
- Proprietary floating prism system uses flexible silicone mount to absorb severe shocks and impacts to limit or eliminate damage
- 356' field of view at 1000 yards
- Exceptionally wide 7.1mm exit pupil ensures complete pupil coverage when fully-dilated in low-light to eliminate vignetting
- Long 20mm eye relief
- Use and Handling
-
- Sports-Auto-Focus System: Individually focusable eyepieces ensure precise tack-sharp focus for any user
- 56-74mm interpupillary distance adjustment range
- Fold-down rubber eyecups for comfortable use with or without eyewear
- When up, the eyecups seal into eye socket to reduce peripheral light interference which can reduce image brightness
- Construction Details
-
- Impact and corrosion-resistant Makrolon polycarbonate chassis
- Chassis' temperature-resistance ensures is stays a comfortable handling temperature in cold or wet conditions, while resisting the expansion and contraction common with metal chassis that can cause the optical components from moving out of alignment over time
- Nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature changes
- Tethered objective lens covers and one-piece ocular rainguard included
- Weight: 36 ounces
UPC: 000381805751 In the Box Steiner 7x50 Marine Binocular Zippered Case Woven Strap Tethered Push-On Objective Caps Eyepiece Rainguard Limited Lifetime Heritage Warranty (Transferable) Summer Binocular Buying Guide Christopher Witt 07/14/2016 aqqzdrddvvsbytrfsrqzedrvexdabszufe A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 7x50 Marine Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 575 Specs | Prism Type | Porro | | Magnification | 7 x | | Objective Lens Diameter | 50 mm | | Angle of View | 6.7° (actual) | | Field of View | 351.7' @ 1000 yd / 117.2 m @ 1000 m | | Minimum Focus Distance | 66' / 20.1 m | | Exit Pupil Diameter | 7.1 mm | | Eye Relief | 20.0 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Dioptric Correction | None | | Focus Type | Individual | | Tripod Mount | None | | Dimensions | 8.1 x 5.5 x 3.0" / 20.6 x 14.0 x 7.6 cm | | Weight | 36.3 oz / 1029 g | | | | Package Weight | 3.79 lb | | Box Dimensions (LxWxH) | 10.95 x 9.0 x 4.65" |
